TNO-L4030T
Original price was: $7,000.00.$4,703.95Current price is: $4,703.95.

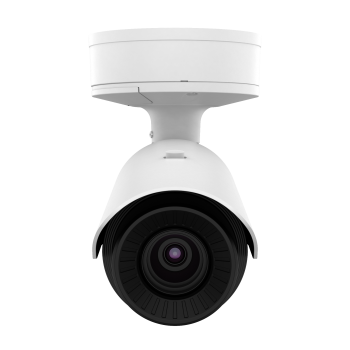

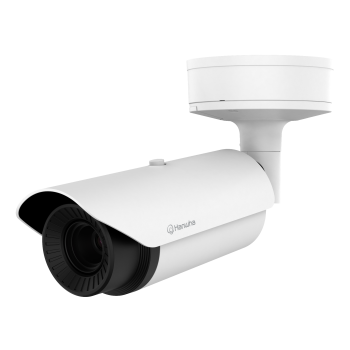

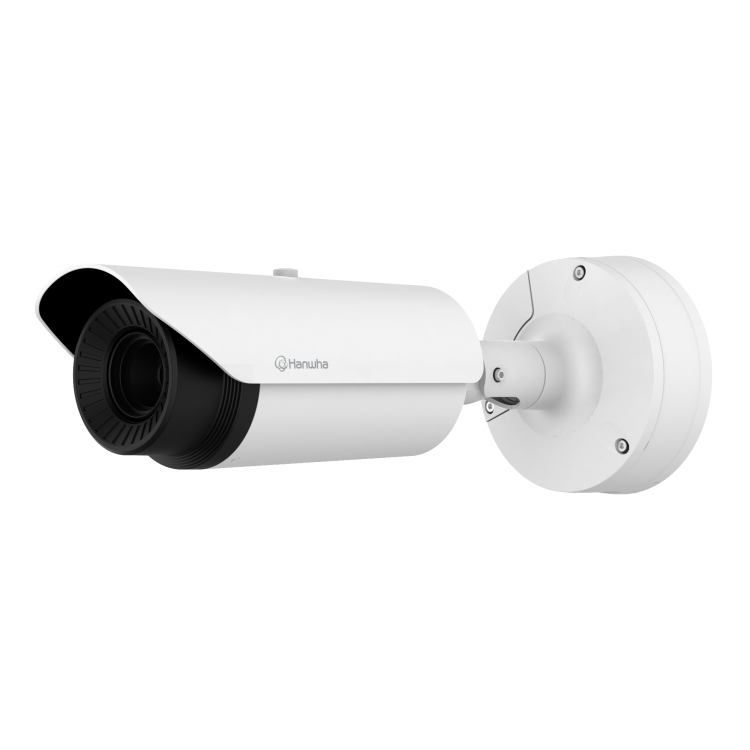

Hanwha TNO-L4030T Thermal Bullet Camera
- 640 × 480 thermal imaging, up to 8 fps
- 13mm fixed lens; 48.6° horizontal view
- H.265/H.264/MJPEG compression with WiseStream II
- Gyro stabilization; up to 256GB local storage
- IP66, IK10, NEMA 4X; PoE/12VDC/24VAC
- Description
- Product Documents
- Specification
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Hanwha TNO-L4030T thermal camera brings VGA heat imaging to outdoor security systems. Its uncooled sensor captures 640 x 480 video at up to 8 frames per second. Unlike a standard visible light camera, it displays thermal contrast. As a result, operators can monitor heat patterns even when the scene has no visible light.
A fixed 13mm lens provides a 48.6 degree horizontal field of view. In addition, six color palettes help users choose the most useful thermal display. Built in gyro stabilization reduces image shake. Meanwhile, flip, mirror, and Hallway View options help installers adjust the image for the monitored area.
The TNO-L4030T thermal camera also supports motion, tampering, loitering, intrusion, and line crossing detection. Audio detection and sound classification provide further event options. For example, an event can trigger recording, an alarm output, or a PTZ preset handover. One alarm input and two outputs support connected security devices.
For efficient recording, the camera offers H.265, H.264, and MJPEG compression with WiseStream II. Furthermore, its memory card slot supports storage up to 256GB. Multiple streaming supports up to ten profiles, while ONVIF profiles S, G, and T help integrate compatible systems. HTTPS, encrypted firmware, and network authentication support secure operation.
The TNO-L4030T thermal camera uses a white aluminum housing with IP66, IK10, and NEMA 4X ratings. Therefore, it suits demanding outdoor installations within its specified operating conditions. It operates from minus 40 to plus 140 degrees Fahrenheit. Power options include PoE, 12VDC, and 24VAC, giving installers flexibility when planning cabling.

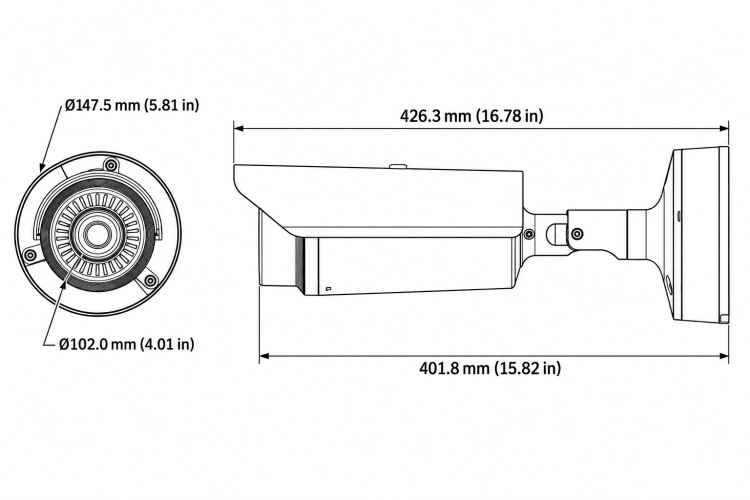

Review the Specification tab for detailed technical values. Also, use the gallery dimension drawing to plan mounting space. The downloadable manufacturer datasheet provides additional installation details. Explore Collsam’s bullet thermal cameras to compare models for your security project.
| Model | TNO-L4030T |
|---|---|
| Camera type | VGA thermal network bullet camera |
| Imaging device | Uncooled microbolometer, 640 x 480 |
| Resolutions | 640 x 480; 640 x 360; 320 x 240 |
| Maximum frame rate | 8 fps (H.265, H.264 and MJPEG) |
| Spectral range / NETD / pixel size | 8–14 µm / ≤50 mK / 17 µm |
| Installation video outputs | CVBS 1.0 Vp-p, 75 ohm; Micro USB Type B for installation preview only (Wi-Fi dongle required) |
| Lens | 13mm fixed, F1.0 |
| Field of view | 48.6° horizontal; 36.4° vertical; 61.6° diagonal |
| Instantaneous field of view | 1.308 mRad |
| Minimum object distance | 5 m (16.40 ft) |
| Image stabilization | Digital stabilization with built-in gyro sensor |
| Motion detection zones | 8 eight-point polygonal zones |
| Privacy masking | 32 polygonal zones; gray, green, red, blue, black, white or mosaic |
| Image rotation | Flip, mirror, Hallway View (90° / 270°) |
| Alarm connections | 1 input; 2 outputs |
| Alarm triggers | Analytics, network disconnection, alarm input |
| Alarm actions | Image upload by email/FTP; email notification; SD/NAS event recording; alarm output; PTZ preset handover; MQTT publication |
| Audio connections | Selectable microphone/line input; line output |
| Thermal color palettes | Whitehot, Blackhot, Rainbow, Sepia, Red, Iron |
| Analytics | Motion, tampering, audio detection, sound classification, shock detection, virtual area (loitering, intrusion, enter/exit, appear/disappear), virtual line (crossing, direction), temperature detection |
| Ethernet | RJ-45, 10/100BASE-T |
| Video compression | H.265 / H.264 (Main, Baseline, High); MJPEG |
| Audio compression | G.711 µ-law, G.726, AAC-LC |
| Smart codec | Manual; WiseStream II |
| Bitrate control | H.265/H.264: CBR or VBR; MJPEG: VBR |
| Streaming | Up to 20 unicast users; multicast; up to 10 profiles |
| Network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3, ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP |
| Integration | ONVIF profiles S, G, T; SUNAPI; Hanwha Vision Open Platform |
| Security | Encrypted firmware and credentials; digest authentication; IEEE 802.1X (EAP-TLS/EAP-LEAP); HTTPS, WSS, SRTP; IP-based access control; access/system/event logs; device certificate |
| Memory | 1GB RAM; 256MB flash |
| Local storage | 1 Micro SD/SDHC/SDXC slot, maximum 256GB |
| Operating conditions | -40°C to +60°C (-40°F to +140°F); 0–90% RH, non-condensing |
| Storage conditions | -50°C to +60°C (-58°F to +140°F); 0–90% RH, non-condensing |
| Power inputs | PoE (IEEE 802.3af, Class 3), 12VDC or 24VAC |
| Power consumption | PoE: 10W maximum / 8.6W typical; 12VDC: 9W maximum / 7.5W typical; 24VAC: 10.5W maximum / 8.9W typical |
| Housing | White aluminum, RAL 9003 |
| Nominal product dimensions | Ø101.97 x 401.8 mm (4.01 x 15.82 in) |
| Overall CAD length including hood | 426.3 mm (16.78 in) |
| Mounting base diameter | 147.5 mm (5.81 in) |
| Product weight | 3124 g (6.89 lb) |
| Environmental ratings | IP66; IK10; NEMA 4X |
| Manufacturer-listed compliance marks | CE, EAC, FCC, NDAA, TAA, UL Listed |
