ST4000VX016
Original price was: $354.99.$196.95Current price is: $196.95.

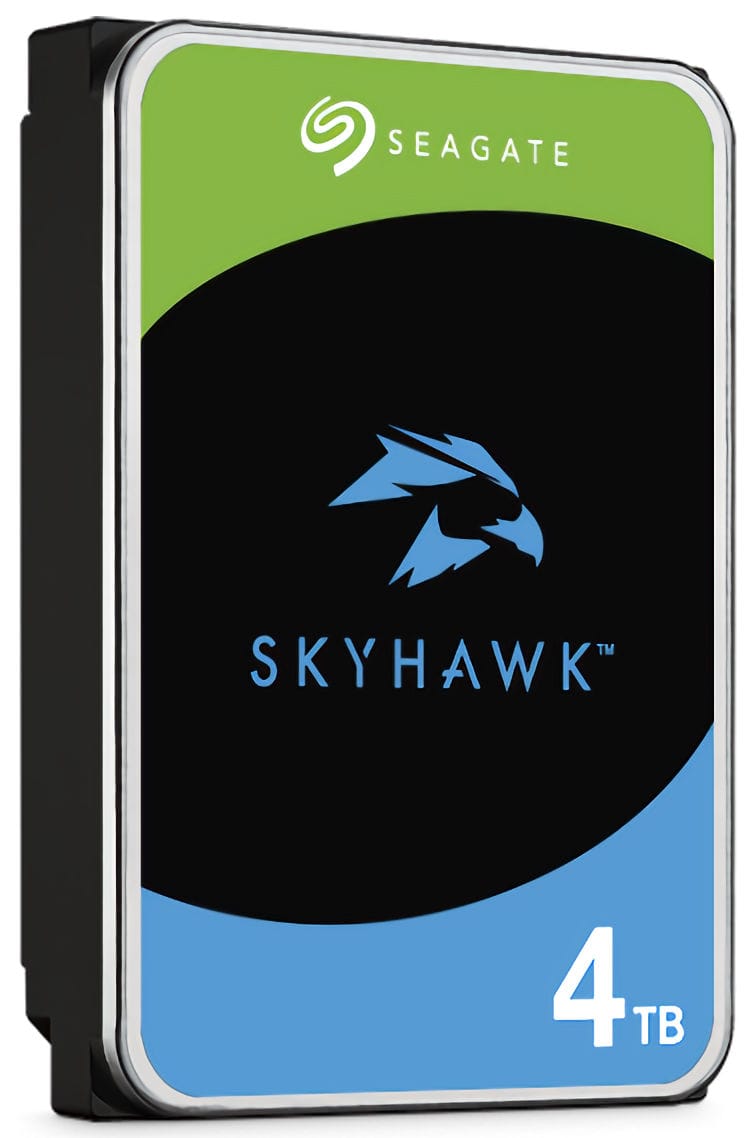

Seagate SkyHawk ST4000VX016 4TB Video Surveillance HDD
- ImagePerfect firmware supports smooth video recording
- Optimized for always-on security applications
- Stores high-resolution surveillance footage
- CMR design provides consistent write performance
- RV sensors improve stability in multi-drive recorders
- Tarnish-resistant components enhance reliability
- Low-power operation helps reduce heat
- Works with compatible surveillance DVRs and NVRs
- SkyHawk Health Management supports drive monitoring
- Rescue data recovery services included by the manufacturer
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
Description
The Seagate SkyHawk ST4000VX016 is a high-performance 4 TB hard drive. It is specifically designed for use in DVR and NVR systems. With its large storage capacity and robust features, this hard drive provides reliable and efficient video storage for 24×7 workloads. Moreover, it supports up to 64 HD cameras.
Powered by a SATA 6Gb/s interface and a 256 MB buffer, the ST4000VX016 boasts fast data transfer speeds and efficient data caching. This ensures smooth and uninterrupted video recording. Whether it’s for home or business surveillance, this hard drive can handle large amounts of high-definition footage with ease.
One of the standout features of the ST4000VX016 is its SkyHawk Health Management (SHM) technology. With SHM, this hard drive can actively monitor and analyze its health. It provides real-time protection against potential failures. In addition, it also offers intervention and recovery options. This allows you to quickly identify and resolve any issues that may affect your video storage.
In addition to its powerful performance and advanced features, the Seagate SkyHawk ST4000VX016 comes with a 3-year limited warranty. It also boasts an impressive 1 million hours mean time between failures (MTBF). As a result, this makes it a reliable and long-lasting choice for your video surveillance needs.
When it comes to sourcing your Seagate products, look no further than Collsam Distribution. As a trusted and authorized Seagate distributor, we offer a wide range of reliable and high-quality products, including the SkyHawk ST4000VX016.
With our dedication to customer satisfaction and competitive pricing, you can count on us to provide the best Seagate solutions for your business or personal needs. Don’t settle for anything less than the best—choose Collsam Distribution for all your Seagate needs.
| SkyHawk™ Health Management Included | Yes |
| Interface | SATA 6Gb/s |
| Recording Technology | CMR |
| Drive Design | Air |
| Features and Performance | |
| Drive Bays Supported | Up to 16 |
| AI Channels | N/A |
| AI Real-Time Capture Events/Sec 1,2 | N/A |
| AI Real-Time Compare Events/Sec 1,2 | N/A |
| HD Cameras Supported3 | N/A |
| RV Sensors | Yes |
| Max Data Transfer Rate (MB/s) | 180MB/s |
| Cache (MB) | 256MB |
| Reliability/Data Integrity | |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 600,000 |
| Nonrecoverable Read Errors Rate, Max | 1 per 10E14 |
| Power-On Hours per year | 8760 |
| Workload Rate Limit (WRL) 1 | 180 |
| Mean Time Between Failures (MTBF) (hours) | 1000000hr |
| Warranty, Limited (years) 2 | 3 |
| Rescue Data Recovery Services (years) 3 | 3 |
| Power Management | |
| Startup Current, Typical (12V, A) | 1.8A |
| Average Operating Power (W) | 3.7W |
| Idle Average (W) | 2.5W |
| Standby Mode/Sleep Mode, Typical (W) | 0.25W |
| Voltage Tolerance (5V) | ±5% |
| Voltage Tolerance (12V) | ±10% |
| Environmental/Temperature | |
| Operating (ambient, min °C) | 32 °F (0 °C) |
| Operating (drive reported, max °C) 4 | 149 °F (65 °C) |
| Nonoperating (ambient, min °C) | -40°F (-40 °C) |
| Physical | |
| Height (mm/in, max) | 0.795 inches (2.02 cm) |
| Width (mm/in, max) | 4 inches (10.16 cm) |
| Depth (mm/in, max) | 5.787 inches (14.7 cm) |
| Weight (g/lb, typical) | 1.08 lb (489.88 g) |
| Carton Unit Quantity | 25 |
| Cartons per Pallet/Cartons per Layer | 40/8 |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 5 × 2 in |
Brand
Seagate
Seagate SkyHawk Video Storage
Seagate SkyHawk hard drives provide dedicated storage for compatible video-surveillance systems. They are engineered for continuous recording workloads commonly found in DVRs, NVRs, and network video security installations.Unlike standard desktop drives, surveillance hard drives are designed to manage multiple video streams and extended recording periods. This makes them suitable for security systems that continuously capture and retain footage.Storage for DVR and NVR Systems
SkyHawk surveillance hard drives can be installed in compatible digital video recorders and network video recorders. Available capacities allow installers to select storage based on the number of cameras, recording resolution, frame rate, compression settings, and required retention time.A higher-capacity drive can retain more recorded footage before the recorder begins overwriting older video. Actual retention depends on the complete system configuration and recording schedule.Continuous Video Recording
Security recorders may operate around the clock, creating storage demands that differ from ordinary computer use. SkyHawk drives are optimized for continuous surveillance recording and the sustained handling of video data.Supported workloads and features vary by drive model. Always confirm the recorder’s maximum supported capacity, drive-bay requirements, interface, firmware compatibility, and recommended hard-drive list before installation.Choosing a SkyHawk Drive
Consider the following factors when selecting a drive:- DVR or NVR compatibility
- Required storage capacity
- Number of connected cameras
- Camera recording resolution
- Continuous or motion-based recording
- Desired footage-retention period
- Available drive bays
- Supported SATA interface and form factor
