TCU-RS2042-AW28

Enhance your security with the Prime TCU-RS2042-AW28 2Megapixel Night Color 4-In-1 Coax Turret Camera. NDAA compliant, 2.8 mm fixed lens, and 131.23 ft (40 m) IR distance.

TCU-RS2042-AW28

Original price was: $59.99.Current price is: $35.95.

In stock

Original price was: $59.99.Current price is: $35.95.

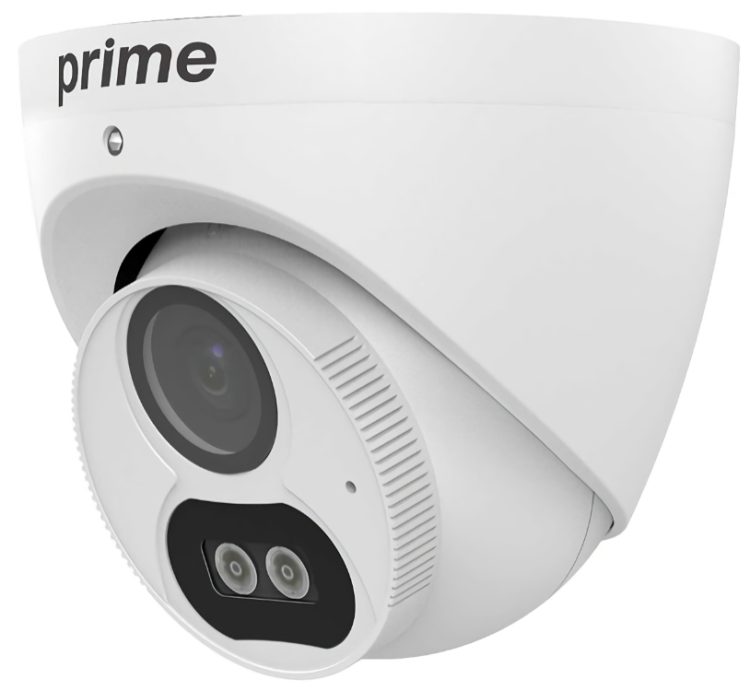

Prime TCU-RS2042-AW28 2Megapixel Night Color Coax Turret Camera with NDAA Compliance

  • 2Megapixel high-quality imaging
  • TVI/AHD/CVI/CVBS
  • Supports white light illumination, 24/7 color images
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu in 11 languages, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • Built-in microphone for high-quality audio transmission via coaxial cables Supports digital defog
  • Metal front face and housing
  • 3-Axis Construction.

Compare

Description

Introducing the Prime TCU-RS2042-AW28 2Megapixel Night Color 4-In-1 Coax Turret Camera, the ultimate solution for all your surveillance needs. This high-performance camera is NDAA compliant, ensuring the highest level of security and quality standards. This camera works really well even in low light, so it’s great for watching things inside or outside.

You can get detailed visuals of your surroundings with this camera’s 2 megapixel resolution. You can monitor a larger area with just a single camera with the 2.8 mm fixed lens. The camera can take pictures even in dark places with a low light sensitivity of 0.005 lux (F1.6)

This camera uses D-WDR technology to balance the exposure in both bright and dark areas. It is ideal for areas with varying light levels because it ensures clear and accurate images in any lighting condition. There are multiple video formats that the camera supports for integration with different systems.

The Prime camera has LEDs in the infrared that can be seen up to 40 meters away. This means that the camera can capture images and videos even in complete darkness, perfect for nighttime surveillance. The Smart IR technology changes the brightness of the LEDs depending on how far away something is from the camera. This prevents overexposure and ensures clear images at all times.

The Prime TCU-RS2042-AW28 is not only technologically advanced but also designed to withstand harsh weather conditions. It’s suitable for both indoor and outdoor use because of its IP67 waterproof rating. The camera also has a 3-axis design, allowing for easy adjustment and positioning to capture the perfect angle. This camera is extremely compact and easy to install, making it an ideal choice for any surveillance system.

In conclusion, the Prime TCU-RS2042-AW28 2Megapixel Night Color 4-In-1 Coax Turret Camera is a versatile and high-performance camera that offers exceptional surveillance capabilities. With advanced technology, multiple video format support, and a durable design, this camera delivers superior image quality and ensures a reliable and long-lasting surveillance solution. Bring peace of mind to your home or business with the Prime TCU-RS2042-AW28 camera.

Datasheet

Download

Enhance your security with the Prime TCU-RS2042-AW28 2Megapixel Night Color 4-In-1 Coax Turret Camera. NDAA compliant, 2.8 mm fixed lens, and 131.23 ft (40 m) IR distance Datasheet.

Sensor
Pixel2Megapixel
Size1/2.9”
Minimum illumination0.005lux (F1.6, AGC ON)
0 lux (white light on)
Lens
Lens2.8mm
Lens mountM12
Angle of viewH: 101.5° V: 56.9° D: 117.4°
Illuminator
IlluminatorTwo white-light illuminators
Illumination distance40m
Lifetime≥60,000 hours
Video
Resolution1080P: 1920(H) × 1080(V)
720P: 1280(H) × 720(V)
Frame rateTVI:
NTSC: 1080P@30fps (default), 720P@30fps PAL: 1080P@25fps, 720P@25fps
AHD:
NTSC: 1080P@30fps, 720P@30fps
PAL: 1080P@25fps, 720P@25fps CVI:
NTSC: 1080P@30fps, 720P@30fps
PAL: 1080P@25fps, 720P@25fps CVBS:
NTSC:960×480
PAL:960×576
Shutter timeNTSC: 1/30s–1/50000s PAL: 1/25s-1/50000s
Exposure modeFour modes: Global (default), BLC, HLC, DWDR
Day/Night24/7 color images
Digital noise reduction2D/3D
White balanceTwo modes: Auto (default), Manual
WDRDWDR
FlipSupports 180° horizontal flip, 180° vertical flip
DefogDigital Defog
Audio
MicrophoneBuilt-in microphones
Camera audioTVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps
Interface
Power5.5mm power interface
Video outputBNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature-22 °F (-30 °C) to 140 °F (60 °C)
Humidity≤95% (RH, non-condensing)
Surge protection4kV
Ingress protectionIP67 Ingress Protection
General
PowerDC 12V (±25%), with reverse polarity protection. Max 3.12W
MountSurface mount (default), optional junction box and wall mount bracket

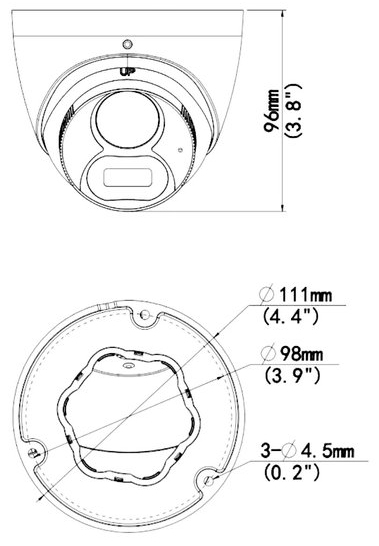

DimensionsΦ 4.3701 inches (11.1 cm) x 3.7795 inch (9.6 cm) (diameter*height)
MaterialMetal
Weight0.79lb (0.36 kilogram)
CertificationCB, CE, FCC

Additional information

Weight2 lbs
Dimensions6 × 6 × 4 in
