SML-20GPA
Original price was: $559.99.$503.98Current price is: $503.98.

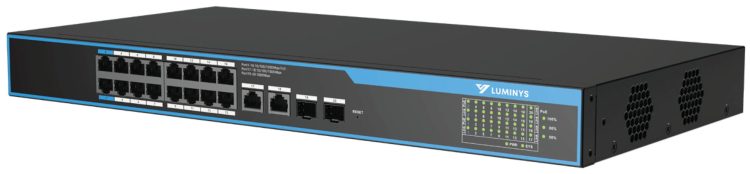

Luminys SML-20GPA 16-Port PoE Cloud Managed Gigabit Switch (PoE++)
- 16 PoE++ Gigabit Ports and 2 SFP Uplink Ports
- 240W Total PoE Power Budget
- LumiPoE Extends Power up to 820 ft (0.25 km)
- Intelligent PoE with PoE Watchdog
- Layer 2 Network Management PoE Ethernet Switch
- Sixteen (16) Gigabit PoE Ports and Four (4) Uplink Ports (Two (2) SFP Ports, Two (2) RJ-45 Ports)
- 240 W Total PoE Budget
- Supports IEEE802.3af, IEEE802.3at, and IEEE802.3bt Standards
- Web-Based and Cloud-Based Management Interface
- Extendable PoE Signal Up to 820 ft (0.25 km) at 10 Mbps
- 40 Gbps Switching Capacity
- Upgrade to LumiCloud switch subscription (LCL-SW100) for switch and port management features, sold separately.
- Description
- Product Documents
- Speciifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
An excellent managed gigabit Power over Ethernet (PoE++) switch with 16 ports is the Luminys SML-20GPA. Industrial networks with high-pressure and commercial applications are the intended applications for the device. Its advanced management features and high-power output make it the perfect choice for organizations. These organizations require reliable and efficient network connectivity for numerous devices.
This switch boasts a total of 20 ports, including 16 Gigabit PoE/PoE+/PoE++ ports, 2 SFP fiber uplink ports, and 2 additional Gigabit RJ-45 uplink ports. The total power budget for the PoE ports is an impressive 240W. This makes it possible to power numerous devices at once without any problems.
Moreover, ports 1 and 2 support a maximum output of 90W each. These ports are compliant with both PoE++ and IEEE 802.3bt standards. Meanwhile, ports 3 through 16 support up to 30W each.
One of the standout features of the Luminys SML-20GPA is its comprehensive dual management interfaces. These enable users to configure and monitor their network via both a web-based interface and LumiCloud, a cloud-based platform. This allows for seamless deployment and centralized monitoring. Therefore, it is easier for IT professionals to manage the network and troubleshoot any issues that may arise.
In addition to its management capabilities, this switch also offers a PoE Watchdog feature. This feature automatically detects and reboots unresponsive connected PoE devices, ensuring maximum uptime for critical devices. It also has an intelligent PoE management feature. This allows users to control power consumption and monitor changes in real-time. It prioritizes important ports and prevents malfunctions.
With a robust 40 Gbps switching capacity and a forwarding rate of 29.8 Mpps, the Luminys SML-20GPA is more than capable of handling heavy network traffic. It also supports extended PoE transmission distances of up to 820 feet (0.25 km) at 10 Mbps speed. This is ideal for large facilities where devices may be located far away from the switch.
Built with robust metal construction and an internal power supply, the Luminys SML-20GPA is designed for reliable operation. It can withstand extreme temperatures ranging from -10°C to 55°C. This makes it suitable for use in various environments including data centers, large office buildings, and industrial installations. It is also NDAA compliant, meeting federal security requirements. This provides organizations with peace of mind when it comes to network security.
| Hardware | ||
| PoE Ports | 16 × 10/100/1000 Mbps PoE/PoE+/PoE++ | |
| Uplink Ports | 2 × 100/1000 Mbps SFP 2 × 10/100/1000 Mbps RJ-45 | |
| PoE Standards | IEEE802.3af, IEEE802.3at(PoE+), IEEE802.3bt(PoE++) | |
| Network Standards | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z | |
| PoE Ports Power | Ports 1 to 2: ≤ 90 W (PoE++) Ports 3 to 16: ≤ 30 W (PoE+) | |
| Total Power Budget | 240 W | |
| PoE Pin Assignment | 1, 2, 4, 5, (V+), 3, 6, 7, 8 (V-) | |
| Performance | ||
| Switching Capacity | 40 Gbps | |
| Packet Forwarding Rate | 29.8 Mpps | |
| Packet Buffer Size | 4.1 Mbit | |
| MAC Table Size | 8,000 | |
| MTBF | 86.9 Years | |
| Features | ||
| Layer | 2 | |
| Port Configuration | Port Rate Configuration, Flow Control, and Port Enabling | |
| PoE Watchdog | PoE ports automatically detect and restart unresponsive cameras. | |
| Long-Distance Transmission | Up to 820.0 ft (0.25 km) at 10 Mbps on PoE Ports | |
| VLAN | Port-Based | |
| VLAN Number | 32 | |
| IEEE 802.3x Flow Control | Supported | |
| Storm Control | Unknown Unicast, Multicast, and Broadcast | |
| Port Mirroring | Supported | |
| Port Isolation | Supported | |
| LLDP | Supported | |
| DHCP Function | Client | |
| Electrical | ||
| Power Supply | 100-240 VDC, 47-63 Hz, Max. 7 A Internal Power Supply | |
| Power Consumption | Idle: 8.3 W Total: 265.0 W | |
| Surge Protection | Power Port: 4 kV/2 kV Telecom Port: 8 kV | |
| Construction | ||
| Net Weight | 5.2 lb (2.36 kg) | |
| Gross Weight | 6.6 lb (2.99 kg) | |
| Operating Temperature | 14 °F (-10 °C) to 131 °F (55 °C) 5 to 95% (RH), Non-Condensing | |
| Storage Temperature | -40 °F (-40 °C) to 158 °F (70 °C) 5 to 95% (RH), Non-Condensing | |

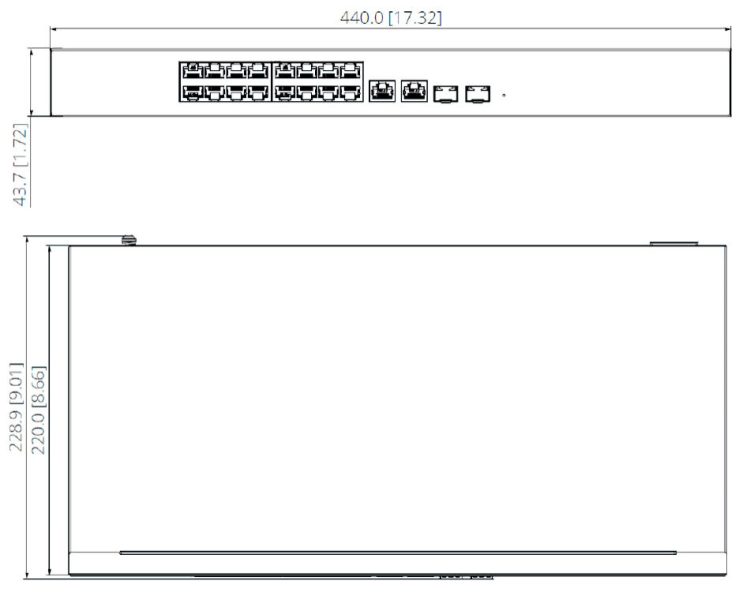

| Product Dimensions (L× W × H) | 17.3 inches (43.94 cm) × 8.7 inches (22.1 cm) × 1.7 inches (4.32 cm) | |
| Material | Metal | |
| Certifications and Compliance | ||
| Certifications | FCC Part 15 Subpart B | |
| Transmission Performance | ||
| Switch power supply voltage to 53V. CAT5E/CAT6. Max. DC resistance < 10Ω/100m | ||
| PoE++ (90 W) | ||
| Cable (ft) | Load Capacity (W) | Bandwidth (Mbps) |
| 328 ft (99.97 m) | 71.3 | 1000 |
| 492 ft (149.96 m) | 62 | 10 |
| 656 ft (199.95 m) | 51 | 10 |
| 820 ft (249.94 m) | 40 | 10 |
| PoE+ (30 W) | ||
| Cable (ft) | Load Capacity (W) | Bandwidth (Mbps) |
| 328 ft (99.97 m) | 25.5 | 1000 |
| 492 ft (149.96 m) | 25.5 | 10 |
| 656 ft (199.95 m) | 25.5 | 10 |
| 820 ft (249.94 m) | 25.5 | 10 |
| Note: Data from this table was collected by Luminys Systems Corporation test lab and is for reference only. The actual transmission distance may vary due to the power consumption of connected devices or the cable type and status. | ||
