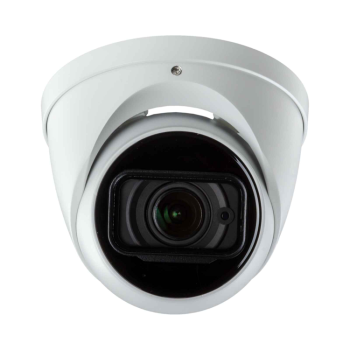

Front view of EYEMAX CIU-M8164V-W 8MP 4-in-1 coax turret camera

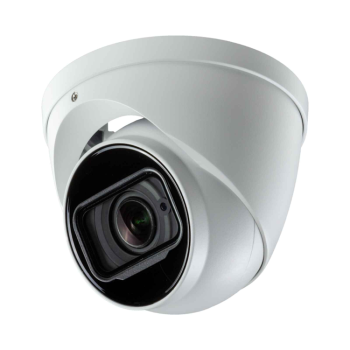

Angled view of EYEMAX CIU-M8164V-W 8MP motorized coax turret camera
Front view of EYEMAX CIU-M8164V-W 8MP 4-in-1 coax turret camera
Angled view of EYEMAX CIU-M8164V-W 8MP motorized coax turret camera

CIU-M8164VW

Front view of EYEMAX CIU-M8164V-W 8MP 4-in-1 coax turret camera

CIU-M8164VW

Original price was: $195.99.Current price is: $116.95.

In stock
0 out of 5

Original price was: $195.99.Current price is: $116.95.

EYEMAX CIU-M8164VW 8MP Motorized-Lens Camera

  • 4K Ultra HD 8MP resolution
  • 2.7–13.5 mm motorized varifocal lens
  • Automatic focus for fast setup and sharp video
  • Adjustable viewing angle for flexible coverage
  • Advanced low-light performance
  • True Wide Dynamic Range for high-contrast scenes
  • Smart infrared night vision
  • H.265 video compression
  • Intelligent video analytics
  • Built-in microphone
  • Power over Ethernet support
  • Weather-resistant outdoor housing
  • Vandal-resistant construction
  • Suitable for commercial security installations
Eyemax
Categories: ,

Description

The EYEMAX CIU-M8164V-W is a professional 8MP coax turret camera built for clear, dependable video surveillance. It delivers 4K image detail while supporting TVI, CVI, AHD, and CVBS formats. Therefore, installers can use this 4-in-1 coax camera for new installations or compatible system upgrades.

Its 2.7–13.5 mm motorized varifocal lens provides flexible control over the viewing area. The lens can capture a broad scene or focus on a distant subject. In addition, automatic focus helps maintain a sharp image after each adjustment. This makes it a practical motorized varifocal turret camera for entrances, parking areas, stores, offices, and warehouses.

The camera also uses 120 dB True WDR to improve scenes with both bright and dark areas. Meanwhile, Smart IR supports nighttime surveillance at distances of up to 196 feet (ca. 60 m). As a result, this outdoor infrared turret camera can monitor large areas in changing light.

Its IP67-rated housing protects the camera from dust and severe weather. Moreover, the built-in microphone allows compatible systems to capture audio with video. The camera operates on 12 VDC and connects to supported coaxial recording equipment.

Overall, the EYEMAX CIU-M8164V-W combines detailed video, flexible lens control, and broad format support. It is a reliable 4K coax security camera for businesses that need a durable and adaptable 8MP coax turret camera.

Camera
Pixel8 MP
Image Sensor4K CMOS
Max. Resolution3840 (H) × 2160 (V)
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1 / 25 s–1 / 100000 s NTSC: 1 / 30 s–1 / 100000 s
Min. Illumination0.01 lux@F1.5 (Color, 30 IRE)
0.001 lux@F1.5 (B/W, 30 IRE)
0 lux (illuminator on)
S / N Ratio>65 dB
Illumination Distance60 m (196.85 ft)
Illuminator On / Off ControlAuto / Manual
Illuminator Number2 (IR light)
Pan / Tilt / Rotation RangePan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeMotorized Vari-focal
Auto FocusYes
Lens Mountφ14
Focal Length2.7 mm–13.5 mm
Max. ApertureF1.5
Field of ViewHorizontal: 114°–32°
Vertical: 58°–17°
Diagonal: 138°–36°
Iris ControlFixed
Close Focus Distance0.8m
DORI Distance
DetectW: 279.86 ft (ca. 85 m)
T: 918.64 ft (ca. 280 m)
ObserveW: 111.88 ft (ca. 34 m)
T: 367.45 ft (ca. 112 m)
RecognizeW: 56.10 ft (ca. 17 m)
T: 183.73 ft (ca. 56 m)
IdentifyW: 27.89 ft (ca. 850 cm)
T: 91.87 ft (ca. 28 m)
Video
Video Frame Rate (CVI)PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps
Video Frame Rate (TVI)PAL: 4K@15 fps
NTSC: 4K@15 fps
Video Frame Rate (AHD)PAL: 4K@15 fps
NTSC: 4K@15 fps
Video Frame Rate (CVBS)PAL: 960H
NTSC: 960H
Resolution4K (3840 × 2160)
5M (2880 × 1620)
4M (2560 × 1440)
1080P (1920 × 1080)
960H (960 × 576/960 × 480)
Day / NightAuto(ICR) / Color / B / W
BLCBLC; HLC; WDR; HLC-Pro
WDR120 dB
White BalanceAuto;Area white balance
Gain ControlAuto / Manual
Noise Reduction3D NR
Motion DetectionYes
Illumination ModeSmart IR
DefogElectronic defog
Digital Zoom4×
MirrorYes
Privacy MaskingOff / On (8 areas, rectangle)
Certification
CertificationsCE-LVD: EN 62368 ~ 1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368 ~ 1 + CAN / CSA C22.2 No. 62368 ~ 1-14
Port
Video OutputVideo output choices of CVI / TVI / AHD / CVBS by one BNC port
Audio InputOne channel built-in MIC (-A)
Power
Power Supply12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
Power ConsumptionMax 7.9W (12 VDC, IR on)
Environment
Operating Temperature−22°F (−30°C) to +140°F (+60°C)
Operating Humidity<95% (RH), non-condensing
Storage Temperature−22°F (−30°C) to +140°F (+60°C)
ProtectionIP67
Structure
Casing MaterialMetal
Product DimensionsΦ4.80 inches (ca. 2 m) × 4.13 inches (ca. 10 cm)
Net Weight0.57 kg (1.26 lb)
Gross Weight0.74 kg (1.63 lb)
InstallationWall mount; ceiling mount; vertical pole mount
