EK-S31P4D44T1-V2
Original price was: $1,139.00.$438.95Current price is: $438.95.

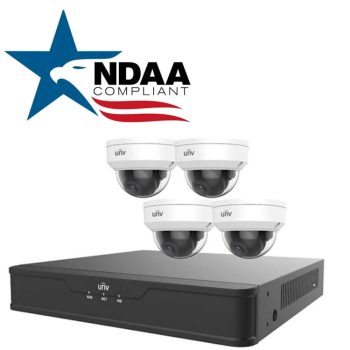

Uniview EK-S31P4D44T1-V2 4 Camera 1 NVR Kit with 1TB HDD Storage Without 18M Cables
NVR301-04S3-P4
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Plug & Play with 4 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840×2160) resolution
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- 1 SATA HDD, up to 8TB
- Support cloud upgrade
EC-D4F28M
- Day/night functionality
- Smart IR, up to 98.42 ft (30 m) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67 Ingress Protection
SKU: EK-S31P4D44T1-V2
Categories: 4 channel Network Video Recorders NVRs, 4 MegaPixel Network IP Cameras, Surveillance Bundle
Tags: 2D / 3D DNR ( Digital Noise Reduction), Dual H.265 and H.264 Codecs, IK10 Vandal Resistance, IP67 Ingress Protection, NDAA Compliant;, ONVIF S/T/G, Ultra 265- Description
- Product Documents
- Specifications
- Additional information
- Reviews (0)
Description
The Uniview EK-S31P4D44T1-V2 is a complete 4-channel, 4-megapixel IP video surveillance kit. It is designed to deliver reliable, easy-to-deploy security for residential properties, offices, and small to medium businesses. Built as a true plug-and-play solution, it simplifies installation. In addition, it provides the performance and coverage needed for everyday protection.
At the heart of the system is the NVR301-04S3-P4 network video recorder, which features 4 independent PoE network ports for direct camera connection and streamlined setup. This makes it easy to build a dependable surveillance system without the need for additional power infrastructure. As a result, it helps reduce installation time and complexity.
The kit includes four EC-D4F28M 4MP vandal-resistant outdoor dome cameras, each engineered for durability and clear image capture in demanding environments. With 4MP resolution at 2560 × 1440 and support for 25 frames per second, the system delivers sharp, detailed video. Consequently, users can monitor people, property, and activity with confidence.
To maximize storage efficiency, the EK-S31P4D44T1-V2 supports Ultra 265, H.265, and H.264 video compression profiles. It also comes equipped with a 1 TB surveillance-grade hard drive. This provides ample storage for recorded footage while maintaining efficient performance across the system’s maximum throughput of 64 Mbps.
Designed for outdoor use, the cameras feature Smart IR tracking with visibility up to 98 feet (29.87 m). They also have an IP67 ingress protection rating for dependable operation in harsh weather conditions. The system also fully complies with Section 889 of the National Defense Authorization Act (NDAA). Therefore, it is a secure and standards-conscious choice for organizations and homeowners seeking a trusted surveillance solution.
Model | NVR301-04S3-P4 | ||||
| Video/Audio Input | |||||
| IP Video Input | 4-Channel | ||||
| Network | |||||
| Incoming Bandwidth | 64Mbps | ||||
| Outgoing Bandwidth | 48Mbps | ||||
| Remote Users | 128 | ||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP | ||||
| Video/Audio Output | |||||
| HDMI/VGA Output | HDMI: 4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | ||||
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Audio Output | 1-Channel, RCA | ||||
| Audio Compression | G.711A, G.711U | ||||
| Synchronous Playback | 4-Channel | ||||
| Livieview display | 1/4 | ||||
| Corridor Mode Screen | 3/4 | ||||
| Snapshot | |||||
| FTP/Schedule/Event Snapshot | 1-Channel snapshot, up to D1 resolution | ||||
| Decoding | |||||
| Decoding format | Ultra 265/H.265/H.264 | ||||
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 | ||||
| Hard Disk | |||||
| SATA | 1 SATA interface | ||||
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) | ||||
| Smart | |||||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection (UMD) | ||||
| VCA Search | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Ultra Motion Detection (UMD) | ||||
| Smart Intrusion Prevention (SIP), UMD by Camera | Total 4-Channel | ||||
| General Alarm | |||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input | ||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||
| External Interface | |||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||||
| USB Interface | Rear panel: 2 x USB2.0 | ||||
| RS232 | NA | ||||
| RS485 | NA | ||||
| Alarm In | NA | ||||
| Alarm Out | NA | ||||
| PoE | |||||
| Interface | 4 RJ-45 32.8084 ft (10 m)/328.084 ft (100 m) self-adaptive Ethernet Interface | ||||
| Max Power | Max 30W for single port Max 54W in total | ||||
| Supported Standard | IEEE 802.3at, IEEE 802.3af | ||||
| General | |||||
| Power Supply | 48V DC Power Consumption: ≤9 W (without HDD) | ||||
| Working Environment | 14°F (-10°C) ~ 131°F (55°C), Humidity ≤ 90% RH (non-condensing) | ||||

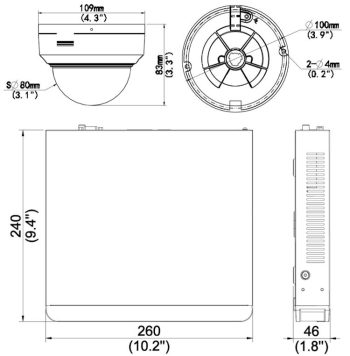

| Dimensions(W×D×H) | 10.2 inches (25.91 cm) × 9.4 inches (23.88 cm) × 1.8 inches (4.57 cm) | ||||
| Weight (without HDD ) | ≤2.43 lb (1.1 kg) | ||||
| Certification | |||||
| Certification | CE, FCC, UL, RoHS, WEEE | ||||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||||
| FCC | Part 15 Subpart B, ANSI C63.4 | ||||
Model | EC-D4F28M | ||||
| Camera | |||||
| Sensor | 1/3”, progressive scan, 4.0 megapixel, CMOS | ||||
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) 0Lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Adjustment angle | Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360° | ||||
| S/N | >56dB | ||||
| WDR | DWDR | ||||
| Lens | |||||
| Lens Type | 2.8mm @2.0, Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Angle of View (H) | 97.0° | ||||
| Angle of View (V) | 52.2° | ||||
| Angle of View (O) | 107.5° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect | Observe | Recognize | Identify |
| 2.8 | 207 ft (63.09 m) | 83 ft (25.3 m) | 41.33 ft (12.6 m) | 207 ft (63.09 m) | |
| Illuminator | |||||
| IR Range | Up to 98 ft (29.87 m) | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, main profile, high profile | ||||
| Frame Rate | Mainstream: 4MP (2560×1440), Max 25 fps; 3MP (2304×1296), Max 30 fps; 1080P (1920×1080), Max 30 fps; 720P (1280×720), Max 30 fps. Substream: D1 (720×576), Max 30 fps; 640×360, Max 30 fps; 2CIF (704×288), Max 30 fps; CIF (352×288), Max 30 fps. | ||||
| Video Bit Rate | 128 Kbps ~ 6144 kbps | ||||
| U-code | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, and gain are adjustable by web browser | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Behavior Detection | Cross line, intrusion (based on human body detection) | ||||
| Motion detection, tampering alarm | |||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZView EZLive | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | |||||
| Interface | |||||
| Network | 1 * RJ45 32.808 ft (10 m)/328.084 ft (100 m) Base-TX Ethernet | ||||
| Certification | |||||
| EMC | FCC: FCC Part 15 | ||||
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 4.0W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Material | Metal | ||||
| Working Environment | -22°F (-30°C) ~ 140°F (60°C), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -22°F (-30°C) ~ 140°F (60°C), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | N/A | ||||
| Ingress Protection | Ingress protection: IP67 Vandal resistant: IK10 | ||||
Additional information
| Weight | 20 lbs |
|---|---|
| Dimensions | 22 × 22 × 18 in |
