100 feet (30.48 m)0. High Performance 12 AWG Oxygen-Free Polarized Speaker Wire A12100S.
- Clear Flexible PVC Jacket Clear Jacket 14/2 Speaker Cable
- Oxygen-Free Conductor
- Acceptable Performance for Speaker and Audio Equipment Connections
- Standard Application Speaker Cable
- Additional information
- Reviews (0)

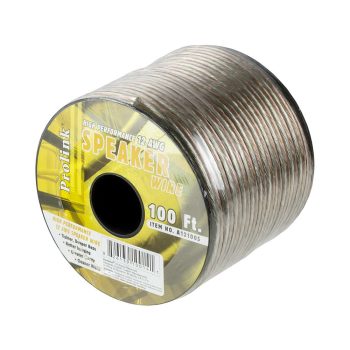

CB A12100S 100 feet (30.48 m) High Performance 12 AWG Oxygen-Free Polarized Speaker Wire
This CB-A12100S speaker wire features two conductors made of high purity (greater than 99.95% pure), oxygen-free bare copper. Pure Bare Copper is a superior conductor to the copper-clad aluminum (CCA) conductors used in most other inexpensive speaker wires. CCA is only about 68% as conductive as pure bare copper. This additional resistance is added to the impedance of your speakers and can negatively affect the sound.
For CB A12100S wire to have no audible effect, the total wire resistance should be no more than 5% of the lowest impedance of your speakers. Even speakers rated for a nominal 8 ohms may dip to as low as 4 ohms at some frequencies, which further reduces the total cable resistance allowed in the wire. Using Pure Bare Copper speaker wire ensures that the total load put on the amplifier remains as close as possible to the impedance curve of your speakers.
For example, a 12AWG 2-conductor Pure Bare Copper speaker wire has a total resistance of 0.803 ohms per 100 feet (30.48 m) (both directions must be considered). By comparison, a 12AWG 2-conductor CCA speaker wire has a total resistance of 1.181 ohms per 100 feet (30.48 m). Assuming 4 ohms is the lowest impedance of your speakers, a speaker wire run can be no more than 0.2 ohms total. 20 feet (6.1 m) of 12AWG Pure Bare Copper would be 0.1606 ohms, well under the 0.2-ohm limit. On the other hand, 100 feet (30.48 m) of 12AWG CCA would be 0.2362 ohms, well OVER the 0.2-ohm limit.
One side of the clear outer PVC jacket is marked with an easily visible blue stripe to indicate polarity.
|Dimensions||100 × 5 × 5 in|
