NIT EM8152-W
Original price was: $408.99.$220.95Current price is: $220.95.Each

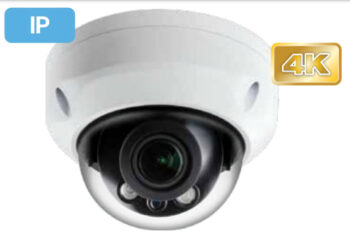

Eyemax NIT EM8152-W8MP 4K Outdoor Dome Camera with 2.7-12 mm Motorized True WDR DC 12V or PoE, IK10 IP67
- 8MP, 1/2.7″ CMOS image sensor, low illuminance, high-definition image outputs max. 8MP (3840 × 2160)@15 fps, and supports 2688 × 1520 (2688 × 1520)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max IR distance: 40 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal ac- cess, local alarm, voltage detection, audio detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD card
- 12 V DC/PoE power supply
- IP67, IK10 protection
- Description
- Attachment
- Specifications
- Additional information
- Reviews (0)
Description
Introducing the ultimate in commercial security surveillance, the Eyemax NIT-EM8152-W is a top-of-the-line 8MP (4K) Starlight Network Dome Camera. This state-of-the-art camera is designed for both indoor and outdoor use. Therefore, it is the perfect choice for all your security needs. Whether you need to monitor a large commercial property or high-traffic areas, the Eyemax NIT-EM8152-W has got you covered.
One of the standout features of this camera is its 1/2.7” CMOS sensor. This sensor offers exceptional low-light performance thanks to its Starlight technology. This means that even in low-light conditions, you can expect clear and detailed footage. With a maximum resolution of 3840×2160 pixels, the Eyemax NIT-EM8152-W delivers ultra HD 4K video quality. As a result, every detail is captured and stored for your viewing.
Not only does the Eyemax NIT-EM8152-W offer superior video quality, but it also boasts a 2.7 mm to 13.5 mm motorized varifocal lens. This allows for flexible focal adjustment. It ensures that you can get the perfect angle for your specific needs. The built-in infrared (IR) LEDs provide superior night vision with a maximum illumination distance of 131.2 feet (39.99 m). Therefore, it is perfect for monitoring large outdoor areas.
The camera’s 120dB True WDR (Wide Dynamic Range) feature allows it to handle high-contrast lighting environments. This ensures that all details are captured clearly in both bright and dark areas. This is especially useful for outdoor surveillance, where lighting conditions can change quickly. To further optimize bandwidth and storage space, the Eyemax NIT-EM8152-W also supports efficient H.264, H.265, and Smart H.264+/H.265+ video codecs.
Installation is a breeze with the Eyemax NIT-EM8152-W as it supports Power over Ethernet (PoE 802.3af) or a standard 12V DC power supply. This eliminates the need for additional power cables.
Consequently, it is a cost-effective option for any surveillance setup. The camera also has a Micro SD card slot that can support up to 256 GB of storage. This ensures that you can store a large amount of footage without the need for external devices.
| Camera | |
|---|---|
| Image Sensor | 1/2.7” CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.008 Lux@F1.5 |
| S/N Ratio | >56 dB |
| Illumination Distance | 40 m (131.23 ft ) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–67° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 ~ 13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Pan: 113°–31° Tilt: 58°–17° Diagonal: 138°–36° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m–0.8 m (2.62 ft–2.62 ft) |
| DORI Distance (Wide) | Detect: 85.3 m (279.86 ft ) Observe: 34.1 m (111.88 ft ) Recognize: 17 m (55.77 ft) Identify: 8.5 m (27.89 ft) |
| DORI Distance (Tele) | Detect: 280 m (918.64 ft) Observe: 112 m (367.45 ft) Recognize: 56 m (183.73 ft) Identify: 28 m (91.86 ft) |
| Smart Event | |
| IVS | Tripwire; intrusion |
| Video | |
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/Smart H.264+ |
| Video Frame Rate (Main stream) | 3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) |
| Video Frame Rate (Sub stream) | 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
| Stream Capability | 2 streams |
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 × 1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto / natural / streetlamp / outdoor / manual / regional custom |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF / ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Audio Compression | G.711a; G.711Mu; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception; local alarm |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption, firmware encryption, configuration encryption, digest, WSSE, account lockout, security logs, IP/MAC filtering, generation and importing of X.509 certification, syslog, HTTPS, 802.1x, trusted boot, trusted execution, and trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Interoperability | ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Browser | IE / Chrome / Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | iOS; Android |
| Certification | |
| Certifications | CE-LVD: EN62368 ~ 1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950 ~ 1 CAN/CSA C22.2 No.60950 ~ 1-07 |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 5V DC |
| Alarm Output | 1 channel out: 300 mA 12V DC |
| Power | |
| Power Supply | 12VDC / PoE (802.3af) |
| Power Consumption | <7.4 W |
| Environment | |
| Operating Conditions | -22°F (-30°C) to +140°F (60°C )/less than ≤ 95% RH |
| Storage Temperature | -40°F (-40°C) to +140°F (60°C ) |
| Protection | IP67; IK10 |
| Structure | |
| Casing | Metal |

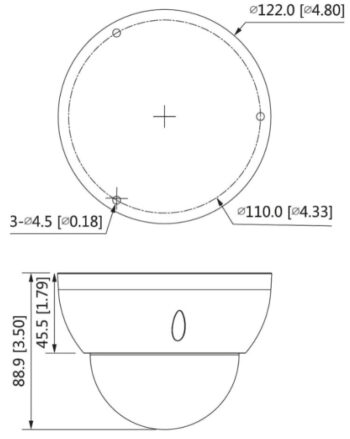

| Dimensions | Φ4.80 inches (2.03 m) × 3.50 inches (8.89 cm) |
| Net Weight | 1.1 lb (0.5 kg) |
| Gross Weight | 1.4 lb (0.64 kg) |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 5 × 5 in |
