FMC-TRRM-A
Original price was: $660.00.$495.00Current price is: $495.00.

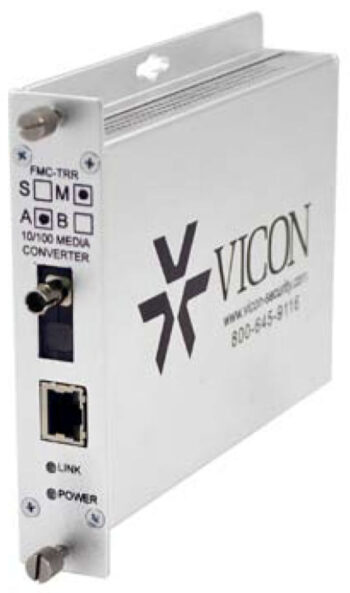

Vicon Security FMC-TRRM-A 2-Port Rack-Mount Fiber-to-Ethernet Media Converter
- Extends range of Ethernet IP network from 328 feet (99.97 m) to 2 miles (3,218.69 m)
- 10/100 Mbps Ethernet
- AC/DC Powered
- Utilizes ST Connectors (1310 nm) with Power Supply
- Multimode Fiber
- No in-field optical adjustments required
- Hot-swappable rack modules
- Interchangeable between standalone or rack-mount use
- Lifetime warranty
SKU: 994710
Categories: Accessories, Fiber Optic Cable and Accessories, Fiber to Ethernet Media Converter
Tags: Fiber Optic Media Converters, Media Converters, NDAA Compliant;- Description
- Attachment
- Speciifications
- Additional information
- Reviews (0)
Description
The Vicon Security FMC-TRRM-A is a two-port Ethernet media converter designed to meet the needs of modern businesses. Multimode optical fiber is a great way to connect devices and networks far away.
The FMC-TRRM-A has a flexible electrical interface that can automatically switch to a 10 Mbps or 100 Mbps Ethernet rate. This makes it easy to integrate into existing networks, without the need for manual configuration. Additionally, the optical interface operates at a 100 Mbps Ethernet rate, ensuring fast and reliable data transfer.
Businesses can connect networks and devices that are far away with Ethernet IP networks. If you need to connect distant locations or multiple buildings, the FMC-TRRM-A can help.
Powered by either AC or DC, the FMC-TRRM-A offers a steady and dependable power source for continuous data transfer. This also renders it suitable for application in diverse settings, such as a temperature-controlled office or an outdoor setting. This media converter comes with a lifetime warranty, so you can be sure it will last.
In summary, the Vicon FMC-TRRM-A is a top-of-the-line media converter that offers fast and reliable data transmission over long distances. Its automatic Ethernet rate negotiation, long-range capabilities, and robust power source make it a valuable addition to any business network.
With its lifetime warranty, businesses can trust in the Vicon Security FMC-TRRM-A to provide consistent and efficient connectivity for years to come. Don’t let distance limit your network’s potential – choose the Media Converter for seamless and high-speed data transfer.
| Data Transmission | |
| Data Interface | Ethernet |
| Data Rate | 10/100 Mbps Optical Port supports Full Duplex; Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data. Automatic medium-dependent interface crossover (MDI/MDI-X) |
| Number of Fibers | 1 |
| Wavelength | 10/100 Mbps Ethernet (1550 nm/1310 nm) |
| Fiber Type | Multimode |
| Fiber Connectors | ST |
| Transmission Distance | 2 miles (3.22 km) |
| Optical Power Budget | 10 dB |
| Connectors | |
| Optical Power | ST Connector, 1 Fiber Terminal Block |
| Electrical | RJ-45 |
| LED Indicators: | — Optical Link/Data Activity — Electrical Link/Data Activity — Power |
| Electrical & Mechanical | |
| Power Requirements | 22-27 VAC @ 0.5 A or 8-24 VDC @ 1 A |
| Current Protection | Automatic Resettable Solid-State Current Limiter |
| Circuit Board: Protection | Meets IPC Standard Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events. |
| Certifications | CE, FCC Class A; UL and RoHS compliant. |
| Environmental | |
| TBF | >100,000 hours |
| Operating Temp |  -40ºF to 167 ºF |
| Storage Temp |  -40ºF to 185 ºF |
| Relative Humidity | 0% to 95% (non-condensing)* |
| Compliance: | IEEE 802.3 compliant. Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment. |
| * May be extended to condensation conditions. | |
Additional information
| Weight | 3 lbs |
|---|---|

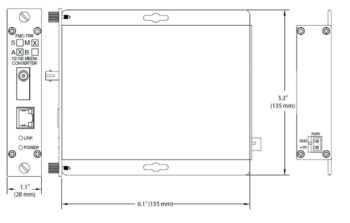

| Dimensions | 8 × 7 × 3 in |
