DHI-ASC1204B-S

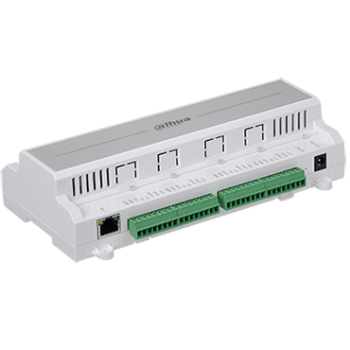

Dahua Technology ASC1204B-S Four Door Access Controller

DHI-ASC1204B-S

$343.78

In stock

$343.78

Dahua Technology ASC1204B-S Four Door Access Controller

  • Support 100,000 valid cards & 150,000 records
  • Support multiple cards
  • Support card, password, fingerprint, and combination
  • TCP/IP interface to PC
  • Wiegand or RS-485 interface to readers(4 door)
  • Door time out alarm, intrusion alarm, duress alarm and tamper alarm
  • Antipassback, multi-door interlock, multi-card open
  • Support 128 efficient time and holiday schedules
  • Watch dog function ensure device free from halting
  • Surface mounted installation
Compare
Compare

Description

Dahua Technology DHI-ASC1204B-S RJ45 Four-Door Access Controller

Set up a full-fledged access control system with the DHI-ASC1204B RJ45-S Four-Door Access Controller from Dahua Technology. This controller enables you to combine up to four card/fingerprint readers, four electronic locks, four door sensors, four exit buttons, and various alarm functions into an integrated computer-managed system (readers, locks, sensors, exit buttons, and alarm devices available separately). It communicates with your readers via its Wiegand and RS-485 interfaces, and with your computer system via TCP/IP RJ45. With a storage capacity of 16 MB, the controller can recognize up to 100,000 cardholders, and can store up to 150,000 event records.

The controller can be configured to grant access to your premises based on card, password, or fingerprint, or a combination of these three credentials. Its alarm interface allows for integration with door time-out, intrusion, duress, and tamper alarms. Other functions include anti-passback for a stricter level of access control, multi-door interlock for preventing unwanted passage from one area to another, and multi-card open for special situations in which a door should only unlock after consecutive verification of several individuals. The controller supports 128 groups of schedules for allowing access to sets of employees only at specific times of the day, and 128 groups of holiday schedules. The access controller designed to be surface mounted.

Data Sheet

Download

Dahua Technology DHI-ASC1204B RJ45 Four-Door Access Controller Data Sheet

User Manual

Download

Dahua Technology DHI-ASC1204B RJ45 Four-Door Access Controller User Manual

Quick Start Guide

Download

Dahua Technology DHI-ASC1204B RJ45 Four-Door Access Controller Quick Start Guide

Additional information

Weight2.2 lbs
Dimensions10.04 × 6.54 × 3.43 in
