52C230Uni-a

Description

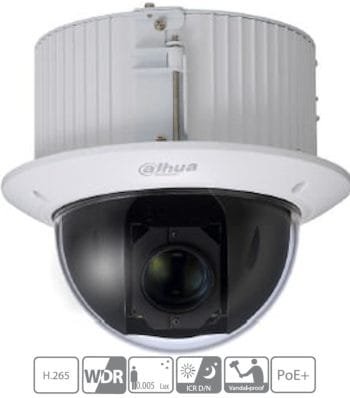

Dahua Technology Pro Series 52C430UNI-A 4MP Network In-Ceiling PTZ

The 52C430UNI-A 2 MP Starlight PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 30x optical zoom lens, and provides an all-in-one solution for capturing long-distance video surveillance for indoor applications.

The 52C430UNI-A camera uses the Smart H.265+ video compression standard to improve encoding efficiency while preserving high-quality video.

The 52C430UNI-A PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare

Starlight Technology

For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers light sensitivity that captures details in low light down to 0.005 lux.

The 52C430UNI-A camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Wide Dynamic Range

The 52C430UNI-A camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology.

For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video System

IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects.

52C430UNI-A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.

Auto-tracking

This feature controls the pan/tilt/zoom actions of the 52C430UNI-A camera to automatically track an object in motion and to keep it in the scene.

The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the 52C430UNI-A camera can zoom in and track the defined target automatically.

PFA Technology

The 52C430UNI-A camera uses innovative PFA Technology to improve zoom accuracy and to decrease focus time. A series of advanced algorithms more accurately judge the direction and the distance to a subject, improving picture clarity throughout the zooming process.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Cybersecurity

Dahua network 52C430UNI-A cameras are equipped with a series of key cybersecurity technologies including: security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage.

These technologies improve the camera’s ability to prevent malicious access and to protect data.

Environmental

With a temperature range of –30° C to +60° C (–22° F to 140° F), the camera is designed for extreme temperature environments.

The 52C430UNI-A camera complies with the IK10 Vandal Resistance impact rating, making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.).
