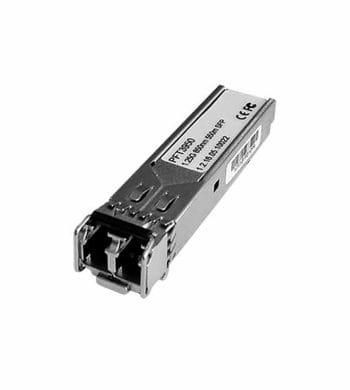

Dahua PFT3950 Multi-mode LC SFP Fiber Module – 1.25G, 850 nm, 500 m (1,640.42 FT) Max Range.
Dahua PFT3950 Multi-mode LC SFP Fiber Module – 1.25G, 850 nm, 500 m (1,640.42 FT) Max Range.

PFT3950

Dahua PFT3920 Optical Transceiver, SFP-TX, 1550 nm, RX, 1310 nm, Single Fiber, 155M, 20Km, 3.3VDC, Single-mode, LC Port PFT3920
Dahua DH-TAM1GT1GT-30 POE+ Midspan adaptor 30W DH-TAM1GT1GT-30
Dahua PFT3950 Multi-mode LC SFP Fiber Module – 1.25G, 850 nm, 500 m (1,640.42 FT) Max Range.

PFT3950

Original price was: $65.99.Current price is: $59.38.

In stock
0 out of 5
( There are no reviews yet. )

Original price was: $65.99.Current price is: $59.38.

Dahua PFT3950 Multi-mode LC SFP Fiber Module – 1.25G, 850 nm, 500 m (1,640.42 FT) Max Range.

  • Multimode LC Connectors SFP module with dual fiber, TX/RX in the different optical fibers
  • Maximum Transmission Distance of 500 m (1,640.42 ft)
  • Maximum Data Rate of 1.25 Gbps
  • Wide Operating Temperature Range: –40° C to 85° C (–40° F to 185° F)
  • Wavelength: 850 nm
  • Using same wavelength in different fibers to realize bidirectional communication in the same time
  • PFT3950 should be used with itself
Dahua Technology SKU: 816116023570 Categories: , , Tag:

Compare

Description

Dahua PFT3950 1.25Gbps SFP Fiber Module for Network PoE Switches, 500 m (1,640.42 ft) Max Range, Multi-Mode LC, 850 nm Transmit and Receive

Dahua PFT3950 optical modules complying with SFP (Small Form-factor Pluggable) standard are devices converting electrical signal to the optical form and optical signal to the electrical form. Usage of media converters with the ability to exchange SFP modules is particularly preferred because of its versatility; For example, if you change the network configuration rather than replace the entire unit or add new media converters, simply select the appropriate SFP module. Modules complying with most switches and routers with SFP socket.

The Dahua PFT3950 is a high performance and cost-effective multimode SFP transceiver. Intended for use with Gigabit Ethernet, provides up to 1.25 Gbps serial optical data transfer rates on single duplex fiber core.

  • Multimode LC Connectors
  • Maximum Transmission Distance of 500 m (1640.42 ft)
  • Maximum Data Rate of 1.25 Gbps
Main Features of Dahua PFT3950
  • Hot swappable LC Duplex connector
  • 850 nm VCSEL
  • Data rate: 1.25Gbps
  • IEEE 802.3az compliant, Small form factor pluggable MSA compliant
  • Class 1 laser product, complies with International Safety Standard IEC 825
  • Optical fiber cable compatible Spans afar and provides speedy data transmission rates between servers and network components
  • Typically used for short distance, multimode fiber optic is ideal to carry data and transmit audio or video applications within a building

Datasheet

Download

Dahua PFT3950 Multi-mode LC SFP Fiber Module – 1.25G, 850 nm, 500 m (1,640.42 FT) Max Range. Datasheet

Additional information

Weight.62 lbs
Dimensions8.3 × 6.5 × 1.38 in
