Ds-1100KI

DS-1100KI offers Simultaneously control speed domes, video decoders, and DVRs using the 4-Axis Joystick Network Keyboard Controller from Hikvision.

The DS-1100KI 4-axis joystick allows you to make pan, tilt, and zoom adjustments on each camera. Additionally, the joystick features a push-button, allowing you take on-demand pictures without having to take your hand off the control.

The playback knob allows you to control the speed of video playback and navigate through the saved data. Recorded files and pictures can be saved to a USB flash drive or FTP server and sorted and searched by time or file.

Using MPEG4 or H.264 encoding formats, the controller can decode video at up to 1080p resolution and can display the footage on a selected window or video wall.

The DS-1100KI controller can accommodate up to 1280 devices configured by three operators. An auto search will find connected devices in the network area for easy installation.

Keyboard parameters and settings can be imported and exported, and shortcut keys can be set for convenient and efficient operation.

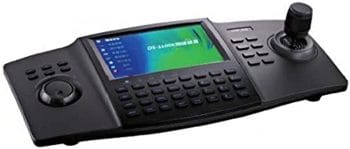

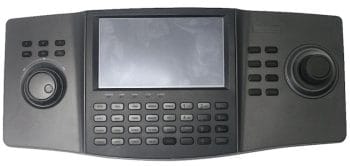

The DS-1100KI is a control panel with a 7-inch touchscreen display, function keys and a 4D joystick.

The 1100KI device allows the user to conveniently view the image from the cameras and control the PTZ heads.

The 7′ liquid crystal display provides a quick preview of the live image, and the joystick allows precise control of PTZ cameras.

The 1100KI action button located on the joystick allows you to instantly take screenshots from the currently viewed camera.

The keyboard has a built-in Full HD (1080p) image decoder and supports up to 1280 devices, including not only Hikvision cameras and recorders, but also decoders, matrixes and TV-Wall solutions.

Such versatility guarantees quick, easy and comfortable management of both small and extensive monitoring and imaging systems (e.g. shops, gas stations, shopping centers, industrial facilities). The durability of the 1100KI is ensured by a solid, durable housing.
