-36%

DH-IPC-PDBW82041N-B360

Dahua Technology DH-IPC-PDBW82041-B360-S2 20MP Outdoor 4-Sensor Network Dome Camera with Night Vision

DH-IPC-PDBW82041N-B360

Original price was: $2,163.99.Current price is: $1,391.95.

In stock

Original price was: $2,163.99.Current price is: $1,391.95.

Dahua Technology DH-IPC-PDBW82041-B360-S2 20MP Outdoor 4-Sensor Network Dome Camera with Night Vision

  • Four (4) Independent 1/2.7-in 5 MP CMOS Sensors
  • Flexible Multi-directional IR Dome with four (4) 2.8 mm to 12 mm Motorized Zoom Lenses
  • Triple-stream Encoding per Channel
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 5 MP at 30 fps Maximum Resolution per Sensor
  • Flex Stream Consolidates Video from All Channels into a Single Stream
  • Analytics+ Functions — Perimeter Protection and Face Detection
  • Starlight Technology for Low Light Sensitivity
  • True Wide Dynamic Range and True Day/Night (ICR) on all Channels
  • Maximum IR LED Distance 98 ft (29.87 m)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty
Compare

Description

The Dahua DH-IPC-PDBW82041-B360-S2 No-Splicing Panoramic Dome Network Camera is a top-of-the-line surveillance camera that boasts a range of impressive features. This camera can see around 42 degrees, which is good for watching large areas like warehouses, parking lots, and stores. Equipped with four 5MP sensors, this camera delivers a total resolution of 20MP, ensuring clear and detailed footage.

IR LEDs for night vision make this dome camera capable of capturing top-notch footage even in dim lighting. It can see up to 98 feet (29.87 meters) at night and is reliable all day and night. It’s good for both indoor and outdoor use. A degree of flexibility in adjusting the focus and zoom is offered by the four motorized varifocal lenses measuring 2.8-12mm.

Another standout feature of the Dahua DH-IPC-PDBW82041-B360-S2 is its two-way audio capability. This lets you see and talk to anyone near the camera, so you can watch and talk from far away. This can be particularly useful in settings such as office buildings, where communication between different areas is necessary.

With an IP67 Ingress Protection rating, this camera is highly resistant to dust and water, making it suitable for use in harsh outdoor environments. It also boasts IK10 Vandal Resistance, ensuring durability and protection against tampering or damage. Moreover, the Smart H.265+ and Smart H.264+ Dual Codec technology allows for efficient video compression, reducing bandwidth and storage requirements without compromising on video quality.

In terms of connectivity, the Dahua DH-IPC-PDBW82041-B360-S2 offers multiple options. It supports microSD cards up to 256GB, providing ample storage for recorded footage. With RJ45 Ethernet and PoE technology, it can easily be connected to a network, eliminating the need for separate power sources. Additionally, this camera is compliant with ONVIF Profiles G, S, and T, ensuring compatibility with other devices and systems.

In conclusion, the Dahua DH-IPC-PDBW82041-B360-S2 No-Splicing Panoramic Dome Network Camera is a feature-packed and reliable choice for all your surveillance needs. With its wide field of view, night vision, audio capability, and advanced technology, this camera offers comprehensive and efficient monitoring solutions for various settings. Whether for business or personal use, this camera is a top-of-the-line choice that delivers exceptional performance and peace of mind.

Datasheet

Download

Dahua Technology DH-IPC-PDBW82041-B360-S2 20MP Outdoor 4-Sensor Network Dome Camera with Night Vision Datasheet

Quick Start Guide.

Download

Dahua Technology DH-IPC-PDBW82041-B360-S2 20MP Outdoor 4-Sensor Network Dome Camera with Night Vision Quick Start Guide.

Additional information

Weight11 lbs
Dimensions17 × 17 × 8 in
Camera
Sensor
4 × 5 MP 1/2.7” CMOS
Lens Mount
M14
Focal Length
2.8 to 12mm
Maximum Aperture
f/1.7
Zoom
Optical: 4.3x
Lens Field of View
Horizontal: 100 to 42°
Vertical: 74 to 32°
Diagonal: 133 to 53°
IR Cut Filter
Mechanical
Day/Night
True
Minimum Illumination
Color: 0.005 Lux
Color: 0 Lux
Shutter Speed
1/100,000 to 1/3 Seconds
Camera Angle Adjustment
Horizontal: 0 to 360°
Vertical: 0 to 75°
Rotation: 0 to 355°
DORI Coverage
With 2.8 to 12mm Lens:
Detect: 216.5 ft (65.99 m) Up to 460.6 ft (140.39 m)
Observe: 86.6 ft (26.4 m) Up to 184.1 ft (56.11 m)
Recognize: 43.3 ft (13.2 m) Up to 94.49 ft (28.8 m)
Identify: 21.7 ft (6.61 meters) Up to 45.9 ft (13.99 m)
Video
Streaming Resolution
2592 × 1944 at 30 fps (17.152 Mb/s H.264)
2592 × 1944 at 30 fps (10.240 Mb/s H.265)
Supported Video Compression
H.264, H.264+, H.265, H.265+, MJPEG
Multi-View Streaming
Yes, 3 Streams
Automatic Gain Control
Yes
Audio
1- or 2-Way Audio
Two-Way
Audio Formats
AAC, G.711, G.723, G.726, PCM
Audio I/O
Input:
1 x RCA
Output:
1 x RCA
Pan and Tilt
Pan/Tilt
No
Networking
Security
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering
Supported Protocols
ARP, CIFS/SMB, DDNS, DHCP, DNS, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTMP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP, syslog
System Integration
Application Programming Interface (API)
ONVIF Profiles G, S & T, CGI
Analytics
Tampering, Memory Card Error, Network Error, Unauthorized Access, Abandoned/Missing Object, Fast Moving, Parking Detection, Crowd Gathering, Loitering Detection, Perimeter Protection (Tripwire, Intrusion), Face Detection, Advanced People Counting (Line Crossing, Region), Queue Management (People in Line, Wait Time)
OS Compatibility
*As of May 2023: Check with manufacturer for the most up-to-date compatibility
Sensors and Alarms
Event Trigger
Yes
Event Action
Recording, Notification, Alarm
Data Streaming
Yes
Alarm I/O
3 / 2
Hardware
Memory
4 GB RAM / 8000 MB Flash
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Internal Storage
No
Power
Power Source
DC, PoE 802.3at (30 W)
Power Consumption
DC: 21.3 W
PoE+: 24.7 W
Environmental
Operating Temperature
-22 °F (-30 °C) to 140 °F (60 °C)
Storage Temperature
-22 °F (-30 °C) to 140 °F (60 °C)
Operating Humidity
0 to 95%
Environmental Protection
Advertised as Dust Resistant/Outdoor Use/Water-Resistant/Weather Resistant
*Manufacturer Testing: IP67
IK Rating
IK10
General
Inputs/Outputs
1 x RJ45
1 x Power
1 x Serial 9-Pin (RS-485)
Illumination
8 x IR LEDs up to 98.4′ / 30 m
Video Management Software
DSS, DMSS
Material of Construction
Metal (Unspecified Type), Plastic

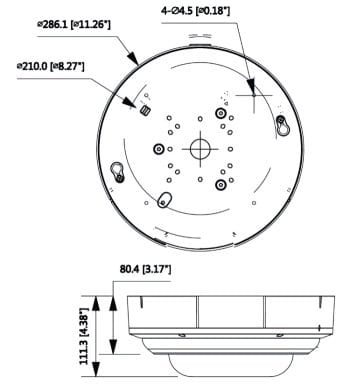

Dimensions
ø: 11.3 inches (28.7 cm) x H: 4.4 inches (11.18 cm)
Weight
6.06 lb (2.75 kg)
