TG-113A
Original price was: $59,999.99.$53,999.98Current price is: $53,999.98.

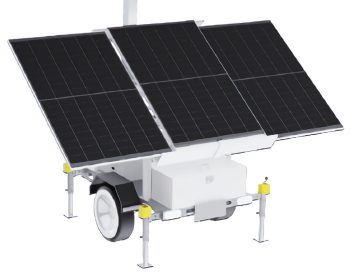

Luminys TG-113A LumiGuardian Solar Security Trailer
- Integrated Cloud-Based Recording*
- GPS Tracking**
- 4G LTE communication with built-in eSIM card***
- Autonomous Power for 7 to 10 Days Without Sun****
- One-Person Assembly
- Four (4) 12.8V Lithium Iron Phosphate Batteries
- Dual Charging: Solar Power or AC Charging
- Lockable and Secure Design
- C5-I Corrosion Protection
- Level 12 (Up to 73 mph (117.48 km/h)) on the Beaufort Wind Scale
- IP67 Ingress Protection
- Department of Transportation (DoT) Approved
* LumiCloud platform for cloud-based recording is sold separate.
** GPS tracking is only available when using LumiCloud.
***Data plan sold separately.
****Time may vary based on energy consumption
SKU: TG-113A
UPC: 810161160259
Category: Solar Security Trailer
Tags: 4G LTE, 4G LTE communication, Autonomous Power for 7 to 10 Day, C5-I Corrosion Protection, Department of Transportation (DoT) Approved, GPS positioning, IP67 Ingress Protection, Solar Security Trailer- Description
- Attachment
- Specifications
- Additional information
- Reviews (0)
Description
Introducing the ultimate solar security solution – the LumiGuardian Solar Security Trailer TG-113A. This one-axle trailer has three high-performance 460-watt monocrystalline silicon solar panels that let it absorb as much solar power as possible. If there is a power outage, these four 12.8V lithium iron phosphate batteries can power surveillance for seven to ten days.
Superior functionality and durability are key design features of the LumiGuardian Solar Security Trailer TG-113A. It has an easily raised retractable 26-foot (7.92-meter) mast for the best possible camera placement. It works with LumiCloud, a cloud-based recording system, so you can watch recorded videos from anywhere at any time.
Because it was built with C5 corrosion protection, this trailer can be used outside in all kinds of weather. It also comes equipped with three red and blue flashing lights, one floodlight, and two speakers for added deterrence. Loudspeakers and motion-activated flashing lights deter would-be burglars before they even try to break in.
This LumiGuardian Solar Security Trailer TG-113A is built to last in bad weather for safety and security reasons. According to the Beaufort wind scale, this trailer can stand up to winds of up to 73 mph (117.48 km/h). It will stay stable in bad weather. It is also dust and water-resistant, with an IP67 ingress protection rating, rendering it suitable for use in any weather.
That’s not all the LumiGuardian Solar Trailer TG-113A can do. It can also work with cameras from other brands. With this security system, people can pick the cameras that work best for them and attach them to the trailer. The trailer is portable for added security, and its DOT approval and VIN ensure its safety while in transit.
Today, safety is crucial, and the LumiGuardian Solar Security Trailer TG-113A is a complete and trustworthy solution. There are numerous built-in safety features and this trailer is built to last. It also has a high-tech solar power system. If you need a complete solar security system for an outdoor event, a construction site, or a party, the LumiGuardian Security Trailer TG-113A is a great choice.
| System Voltage | 48 VDC | |
| PV Controller</td> | MPPT 30A, 96.9% | |
| IP Rating | IP67 Ingress Protection | |
| Control | Remote Control | |
| Battery Supply | Solar Power, Mains Electricity | |
| 25 Hours (AC) | ||
| Corrosion Class | C5 | |
| Roof Rack Components | 3 x Red and Blue Strobe Lights 2 x Speakers 1 × 4G Router 1 x Floodlight 1 x Power Supply Board (12/48 VDC) 1 x Edge Controller 1 x Hard Drive (4 TB)<br />Note: No cameras are included | |
| Trailer Computer | ||
| System Frame | =”height: 72px; width: 82.0359%;” width=”556″>Embedded Linux System Watchdog Hard Disk Storage HDMI UHD Display IP Network Video Access | |
| Video Input | Supported Resolutions 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, CIF Max. Input Eight (8) Cameras Access Bandwidth 256 Mbps | |
| Video Playback | 1/4/8 Simultaneous, APP | |
| Audio Functions | Audio and Video Recording HDMI Audio Output APP Audio and Video Preview/Playback | |
| Audio Compression | G.711a, G.711u, PCM, G726 | |
| Storage | Built-in 4 TB HDD Cloud Backup Recording Type: Motion Detection, Alarm, Schedule, Intelligent, General | |
| Power Consumption | Total Output for NVR: ≤ 10W (No HDD) Total Output for PoE: 100 W Max. Output for One Port: 25.5 W. | |
| PV Controller | ||
| Nominal System Voltage | 48 VDC | |
| Working Voltage Range | 8 to 68 VDC | |
| Communication | RS-485 (RJ45 5 VDC/200 mA) | |
| Relative Humidity | < 95% | |
| Self-Consumption | < 0.624% | |
| Certifications | FCC, UL | |
| 4G CPE | ||
| 4G | LTE FDD:B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66 LTE TDD: B34/B38/B39/B40/B41 | |
| SIM | 1.8V/3V SIM/UIM Cards Built-In 15kV ESD protection | |
| Port | LAN: Two (2) | |
| Power | 12V DC 1A | |
| Operating Temperature | -22 °F (-30 °C) to 158 °F (70 °C) | |
| 2.88 W (Max.) | |
| LAN Protocol | ARP, Ethernet | |
| WAN Protocol | IP, DHCP, PPPoE | |
| Solar Panel | ||
| Number of Panels | Three (3) | |
| Solar Cell Type | Monocrystalline Silicon | |
| Wattage | 460 W per Panel | |
| Voltage Range | 10 to 40.9 VDC | |
| Energy Efficiency | 23.80% | |
| Operating Temperature | -40 °F (-40 °C) to 185 °F (85 °C) | |
| Dimensions | 69.2 inches (1.76 m) x 44.6 inch (1.13 m) x 1.2 inch (3.05 cm) | |
| Weight per Panel | 47.4 lb (21.5 kg) | |
| Certifications | TUV, CQC, CE | |
| Battery | ||
| Number of Batteries | Four (4) | |
| Cathode Material | Lithium Iron Phosphate | |
| Voltage per Battery | 12.8 V | |
| Capacity | 4 × 220 Ah | |
| Operating Temperature | Charge: 32 °F (0 °C) to 140 °F (60 °C) Discharge: -4 °F (-20 °C) to 140 °F (60 °C) | |
| Weight | 4 × 38.6lb (17.51 kg) | |
| Life Cycle | ≥ 5000 Cycle at 25 °C, 0.5 C, and 80% DOD | |
| Mast | ||
| Height | 26.0 ft (7.92 m), Retractable | |
| Control | Hand-Operated | |
| Beaufort Wind Scale | Level 12 (Up to 73 mph (117.48 km/h) | |
| Coating | Electrophoretic Preservative | |
| Material | Aluminum Alloy | |
| AC Charging | ||
| Voltage Range | 90 to 264 VAC, 127 to 370 VDC | |
| Frequency Range | 47 to 63 Hz | |
| Power | 450 W | |
| Output Voltage | 42 to 80 VDC (Adaptable) | |
| Output Current | 6.8 A | |
| Trailer | ||
| Trailer Coupler | Suitable for 2 in. (50 mm) Trailer Ball | |
| Speed Limit | Standard: 80 km/h (50 MPH) Maximum: 100 km/h (62 MPH) | |
| Hand Brake | One (1) | |
| Tire Type | Aluminum Rim, 175R13 | |
| Support Legs | Four (4) | |
| Product Dimensions | 121.5 inches (3.09 m) × 136.4 inch (3.46 m) × 312.6 inch (7.94 m) | |
| Packaging Dimensions | 86.6 inches (2.2 m) x 63.0 inch (1.6 m) x 94.1 inch (2.39 m) | |
| Product Weight | < 1719.6 lb (780 kg) | |
| Protection Measures | • Tamper-proof, removable hand crank format and PV bracket • Theft-proof control box and trailer support foot • GPS positioning | |
Additional information
| Weight | 1720 lbs |
|---|---|
| Dimensions | 89 × 65 × 96 in |
