AE-23E-v2

Protect your Vivotek box network cameras with the Supreme Series outdoor enclosure. IP68 and IK10-rated for extreme weather and vandalism resistance. Enhance night vision with optional VAIR illuminators. Get optimal performance in any temperature with demisting and temperature regulation. Secure and convenient with IEEE 802.3bt PoE and cast aluminum construction. Order now in white.

AE-23E-v2

Original price was: $442.80.Current price is: $295.95.

In stock

Original price was: $442.80.Current price is: $295.95.

VIVOTEK AE-23E-V2 Side-Opening 95W PoE Cast Aluminum Camera Housing

  • IEEE 802.3bt PoE Complaint
  • Weather-proof IP68-rated Enclosure
  • Vandal-proof IK10-rated Cast Aluminum Housing
  • Window Demister Heater and Fan
  • Adjustable Sun shield
  • Side-Opening Alarm Switch
  • VAIR Illuminators (Optional)

Compare

Description

The Vivotek AE-23E-v2 is the ultimate outdoor enclosure for Vivotek box network cameras. This Supreme Series case will provide your camera with good protection even in bad weather. The AE-23E-v2 is the best way to keep your wide-angle or long-range lens safe and make it last longer.

One of the key features of the AE-23E-v2 is its ability to shield your camera from extreme weather conditions. With this case, your camera will be safe from the weather, even the rain and wind. It has an impressive IP68 rating, which means it is completely dust-tight and can even withstand immersion in water. This makes it ideal for outdoor areas that experience frequent weather changes.

The AE-23E-v2 offers robust security against vandalism in addition to weather protection. The camera has an IK10 rating, which means it is very resistant to physical damage and attacks. This means it will always work and be the same. This is particularly important in outdoor settings where cameras may be vulnerable to damage.

In addition to its durability and security features, the AE-23E-v2 also offers convenient and efficient power and data transmission. It is compatible with IEEE 802.3bt PoE, which enables the transmission of both data and power over a single cable. This not only reduces the amount of wiring needed, but also ensures optimal camera performance.

The Vivotek Housing goes above and beyond to ensure optimal camera performance even in extreme temperatures. The camera doesn’t get foggy or condensation because it has a defogging window and an internal temperature control system. It also reduces glare and protects the camera from direct sunlight, ensuring clear and high-quality footage.

Vari-Angle IR (VAIR) illuminators can be bought separately and added to the AE-23E-v2 to improve its night vision. These illuminators provide added security and visibility in low light environments, making the Vivotek Housing an excellent choice for surveillance purposes.

Made with cast aluminum and a sleek white color, the AE-23E-v2 is not only functional but also aesthetically pleasing. Since it doesn’t stand out, it’s a necessary addition to any Vivotek camera that is used outside. For protecting and improving the features of your Vivotek box network camera, the Vivotek Housing is the best choice. It offers numerous great features and works well.

Datasheet

Download

Protect your Vivotek box network cameras with the Supreme Series outdoor enclosure. IP68 and IK10-rated for extreme weather and vandalism resistance. Enhance night vision with optional VAIR illuminators. Get optimal performance at any temperature with demisting and temperature regulation. Secure and convenient with IEEE 802.3bt PoE and cast aluminum construction. Order now in white Datasheet.

Quick Installation Guide

Download

Protect your Vivotek box network cameras with the Supreme Series outdoor enclosure. IP68 and IK10-rated for extreme weather and vandalism resistance. Enhance night vision with optional VAIR illuminators. Get optimal performance at any temperature with demisting and temperature regulation. Secure and convenient with IEEE 802.3bt PoE and cast aluminum construction. Order now in white Quick Installation Guide.

Input VoltageIEEE 802.3bt
PoE 50~57VDC
Power OutputPoE 802.3 at×1
DC 24V×1
Max. Output Power Budget.25W through 30W PoE PSE
48W through 60W PoE PSE
72W through 95W PoE PSE
Optional IR LEDsAI-106: 6W, 10~40°, 40~100 m
AI-108: 24W, 10° ~ 30°, 70 ~ 200 m
AI-109: 48W, 10~40°, 150~350 m
Power ConsumptionWindow Heater: 10W; Fan: 2W; Others: 2W
Optional 10L Water Tank & Pump
Operating Temperature-4 °F (-20 °C) ~ 149 °F (65 °C)
-4 °F (-20 °C) ~ 122 °F (50 °C) (IR ON)
Windows Heater ON/OFF≤ 86 °F (30 °C) ON

≥ 95 °F (35 °C) OFF

Cold Start Heater ON/OFF
Fan ON/OFF≥ 104 °F (40 °C) ON

≤ 95 °F (35 °C) OFF

Waterproof IP RatingIP68
Vandal Proof
  • IK10
  • Impact Rated on Cast
  • Aluminum Housing
Warranty12 months
Included AccessoriesQuick Installation Guide
Screw Kit
Wall Bracket (AM-21E)
Sun Shield (AE-2S1)
Mount TypeWall Mount

Ceiling Mount

Corner Mount

Standing Mount

Optional AccessoriesWall Mount Bracket: AM-21D
Ceiling Mount Bracket: AM-11F
Standing Mount Bracket: AM-811
Pole Mount Bracket: AM-314, AM-315
Corner Mount Bracket: AM-414
VAIR IR LEDs: AI-106, AI-108, AI-109

Additional information

Weight7 lbs

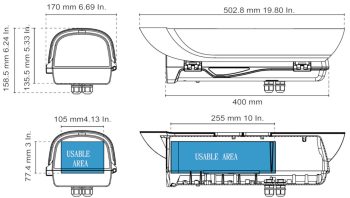

Dimensions21 × 8 × 8 in
