CB155
Original price was: $33.00.$26.00Current price is: $26.00.
Hikvision CB155 Junction Box
The mount should be installed on a flat surface. Waterproof rubber gasket (included) is necessary for outdoor application.
- Aluminum Alloy with Surface Spray Treatment
- With Cable Outlet(s)
- Indoor and Outdoor Use
- Description
- Attachment
- Additional information
Description

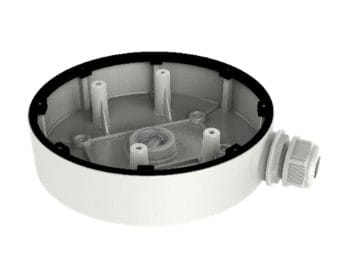

Hikvision CB155 Junction Box
CB155 is a junction box designed for select Hikvision cameras. It has a 4.4 lb (2 kg) maximum load capacity when installed on a flat surface or wall, capable of supporting at least three times the total weight of the camera and junction box. A waterproof rubber gasket is included for an outdoor installation.
CB155, is a weatherproof Security Camera Junction Box to help you hide security camera cables and achieve a professional looking installation.
CB155 is made from an aluminum alloy with a surface spray treatment, the CB155 Junction Box is built for long-lasting indoor or outdoor use. Cable outlet allows for easy wiring. Installation requires a flat wall that can support at least 3x the weight of the camera and accessory. Outdoor installation requires a waterproof gasket (included).
- Package Contents: Junction Box Rubber Gasket

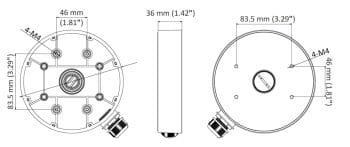

- Diameter (mm): 155
- Color: White
- Maximum Load Capacity (g): 2000
- Maximum Load Capacity: 4.41 lb (2 kg)
- Device Supported: Network Camera
- Height: 1.4 inch (3.56 cm)
- Product Type: Mounting Box
- Weight (Approximate) (g): 300
- Diameter: 6.1 inch (15.49 cm)
- Weight (Approximate): 0.66 lb (0.3 kg)
- Material: Aluminum Alloy
- Height (mm): 36
Designed for use with:
- Hikvision DS-2CD2743G1-IZS
- Hikvision DS-2CD2743G2-IZS
- Hikvision DS-2CD2783G1-IZS
Additional information
Weight | 3 lbs |
---|---|
Dimensions | 2 × 7 × 8 in |
Color | Black, White |
