D2101V
Price range: $1,251.95 through $1,812.94

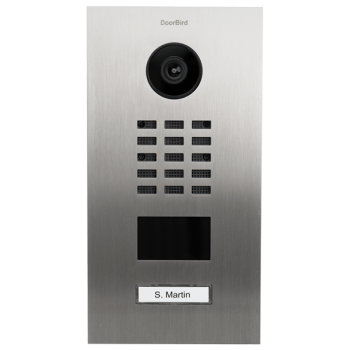

DoorBird IP Video Door Station D2101V, stainless steel, brushed, 1 call button
- With a backlit nameplate
- Ultra-wide-angle, hemispheric lens,180°
- Clear voice transmission
- On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
- For night vision mode with 12 Infrared LEDs
- Distance up to ten adjustable via App (interval: 1 m)
- Configurable remotely via App (e.g., time limit)
- Two doors or gates can be controlled via App.
- Status configurable via App temporary or permanent circuit
- Store still images for free. Optional video recording available.
- Automatic door and gate opening when returning home.
- Prevents more break-ins than an alarm system.
- For use in medical offices and office environments
- RFID cards
- 4D motion sensor switches on external lamp between9 pm and 6 am
- Real-time audio / video communication, optimized for mobile devices via Wi-Fi, 3G, 4G, 5G.
- Local interface for integration with third-party systems and SIP
- Noise reduction and echo cancellation (AEC, ANR)
- Real-time audio / video communication, optimized for mobile devices via Wi-Fi, 3G, 4G, 5G.
SKU: D2101V
Categories: Access Control, Door Access, Home And Office Automation
Tags: D2101V Flush Mounted, D2101V Video Door Station, DoorBird IP Intercom, Doorbird range, Metallic Finish, Video Door Station- Description
- Attachment
- Dimensions
- Additional information
- Reviews (0)
Description
DoorBird D2101V, the ultimate IP video intercom system that brings convenience and security to your doorstep. With this revolutionary device, you can now see and communicate with visitors at your door from anywhere, using your smartphone or tablet. Whether you’re at work, on vacation, or simply lounging at home, the DoorBird D2101V keeps you connected and in control.
Designed for both single-family homes and commercial buildings, the DoorBird D2101V offers a range of advanced features that make it stand out from traditional intercom systems. Its HDTV 720p video with an ultra-wide-angle lens provides a clear and comprehensive view of your doorstep, with a 180° diagonal, 140° horizontal, and 100° vertical coverage. This means you can see everything and everyone, from head to toe, without any blind spots.
The DoorBird D2101V also comes with automatic night vision, making it an ideal choice for round-the-clock monitoring. Equipped with 12 infrared LEDs, it can capture clear images even in low light conditions. This feature ensures that your home or building is always under surveillance, even at night.
In addition to video, the DoorBird D2101V also offers two-way audio communication, complete with noise reduction and echo cancellation. This means you can have crystal clear conversations with your visitors, without any background noise or distortion.
The 4D motion sensor is another cutting-edge feature of the DoorBird D2101V. It can detect approaching visitors and trigger actions, such as turning on lights or activating a recording. This adds an extra layer of security and convenience, as you can have a record of who came to your door, even if you were not available to answer it.
For access control, the DoorBird D2101V comes with a built-in RFID reader that can be used with DoorBird key fobs. This feature allows you to grant access to selected individuals, while keeping unwanted visitors at bay. Additionally, the device has two freely configurable bistable switching relays, which can be used to control devices like electric door openers, providing you with even more control over your home or building.
The DoorBird D2101V supports LAN connection, with PoE capability, making it easy to install and set up. It also has an open API, allowing for integration with third-party systems like Control4, Crestron, and Loxone. It even supports SIP calls, enabling you to answer your intercom from your VoIP phone.
Other impressive features of the DoorBird D2101V include an automatic door buzzer and free visitor history, with still images and optional video recording. This allows you to keep track of who came to your door, and when, ensuring complete peace of mind.
The DoorBird D2101V is not only packed with advanced features but is also aesthetically pleasing. It comes in multiple colors to choose from, so you can select one that complements your home or building’s exterior. It can be flush or surface mounted with a housing (sold separately), ensuring a seamless and customized integration into your space.
It is also weatherproof, with an IP65 rating, ensuring durability and functionality in different weather conditions.
In conclusion, the DoorBird D2101V is a state-of-the-art IP video intercom system that offers convenience, security, and control. It’s perfect for homes and commercial buildings alike, with its advanced features, sleek design, and customizable options. With the DoorBird D2101V, you’ll never have to wonder who’s at your door again.
| GENERAL | |
| Front panel | 0.12 inches (3.05 mm) For further materials and colors see material board and Online Shop. |
| Mounting type | Flush- or surface-mounted, mounting housing sold separately |
| Call button | Illuminated |
| Nameplate | Plastic Metal cover plate and engraving available separately, see www.doorbird.com/de/buy |
| Power supply | 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Weight | 1.69 lb (766.57 g) |
| Connectors | • RJ45, for LAN/PoE • Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g., for electric door opener • Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g., for electric door opener • External input for external door opener button • 15 V DC input (+, -), max. 15 W • Relays can be expanded / detached with DoorBird I/O Door Controller |
| Protection class | IP65, IK08 |
| Approvals | CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471 |
| Dimensions (H × W × D) | 9.96 inches (25.3 cm) x 5.16 inch (13.11 cm) x 1.92 inch (4.88 cm) |
| Operating conditions | -13 °F (-25 °C) to 131 °F (55 °C) Humidity 10 to 85% RH (non condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x RFID key fob 1x Screwdriver 1x Quick-start guide with Digital Passport 1x Installation manual 1x Small parts |
| CURRENT SYSTEM REQUIREMENTS | |
| System requirements | Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server Network: Ethernet Network, with DHCP |
| Recommended installation height | Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height. |
| VIDEO | |
| Camera | HDTV 720p, dynamic (VGA – HDTV) |
| Lens | High-end ultra-wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable |
| Night-vision | Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm) |
| AUDIO | |
| Audio components | Speaker and microphone, noise reduction and echo cancellation (ANR, AEC) |
| Audio streaming | Two-way, full duplex |
| NETWORK | |
| Ethernet | RJ45 jack, PoE 802.3af Mode-A, 10/100 Base-T |
| Supported protocols | HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM |
| MOTION SENSOR | |
| Type | Active |
| Detection angle | 54° (H), 70° (V) |
| Range | 3.3 ft (1.01 m) – 32.9 ft (10.03 m)Â depends on environment, configurable in 3.3 ft (1.01 m) steps. |
| Technology | 4D. Based on multiple integrated sensors and algorithms, e.g., Radio Frequency Energy (RFE) |
| Configuration | Via App, e.g. • Range (1 – 10 m / 3.3 ft (1.01 m) – 32.9 ft (10.03 m) • Movement direction (coming, leaving, both) • Individual events (e.g., switch a relay, push notification, SIP call, HTTP(s) notification) • Individual schedules |
| RFID | |
| Type | Active Reader Passive Tag (ARPT) system |
| Standard | ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102 |
| Frequency | 125 kHz |
| Range | 0 – 3 cm, depends on environment |
| Antenna | Internal |
| Compatible Transponder | RFID key fobs, sold separately, see www.doorbird.com/buy Up to 500 tags manageable |
| Configuration | Via App, e.g. • Tag (add, delete) • Individual events (e.g., switch a relay, SIP call, HTTP(s) notification) • Individual schedules • RFID history available for 60 minutes in the app |
| INTEGRATED WIRELESS MODULES | |
| RFID | 125 kHz |
| Sensor | 24 GHz, can be disabled |
| THIRD-PARTY INTEGRATION (DOORBIRD CONNECT) | |
| Simultaneous video streams | One, for event-based and continuous recording |
| OPTIONAL | |
| Sold separately | • Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 – 240 V AC to 15 V DC) – EAN 4260423867314 • Surface-mounting housing, flush-mounting housing, Protective-Hood • See www.doorbird.com/buy |
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 11 × 7 × 4 in |
| Finish | Architectural Bronze, Brushed Bronze-Finish as PVD Coating, Stainless Steel, Brushed Gold Finish with V4A Protection, Brushed Gold-Finish as PVD Coating, Stainless Steel, Brushed Stainless Steel V2A., Brushed Stainless steel V4A (salt-water and grinding dust resistant)., Brushed Titanium-Finish as PVD Coating, Stainless Steel, DB 703 Stainless-Steel Powder Coated Semi Gloss, Graphite Black (Raven Polar) Semi-Gloss, Powder-Coated,, High Gloss Polished Titanium V4A Finish as PVD Coating Stainless Steel., Polished Chrome High Gloss Finish as PVD Coating Stainless Steel V4A., Polished Chrome-Finish as PVD Coating, Stainless Steel V4A, High-Gloss, Polished High-Gloss Brass-Finish as PVD Coating, Stainless Steel V4A, RAL 1001 is a Beige. Stainless Steel, Powder Coated, Semi Gloss., RAL 1003, Signal Yellow Semi Gloss Stainless Steel, Powder Coated., RAL 1004, Golden Yellow Semi Gloss Stainless Steel, Powder Coated., RAL 1016, Sulfur Yellow Semi Gloss Stainless Steel, Powder Coated, RAL 1017, Saffron Yellow Semi Gloss Stainless Steel, Powder Coated,, RAL 1037, Sun Yellow Semi Gloss Stainless Steel, Powder Coated., RAL 2002, Vermilion Semi-Gloss Stainless Steel, Powder-Coated, RAL 2004, Pure Orange Semi Gloss Stainless Steel, Powder Coated., RAL 3000, Flame Red Semi Gloss Stainless Steel, Powder Coated., RAL 3007, Black Red Semi Gloss Stainless Steel, Powder Coated., RAL 3014, Antique Pink Semi Gloss Stainless Steel, Powder Coated., RAL 3028, Pure Red Semi Gloss Stainless Steel, Powder Coated., RAL 4004, Claret Violet Semi Gloss Stainless Steel, Powder Coated., RAL 4005, Blue Lilac Semi Gloss Stainless Steel, Powder Coated., RAL 4006, Traffic Purple Semi Gloss Stainless Steel, Powder Coated., RAL 4009, Pastel Violet Semi Gloss Stainless Steel, Powder Coated., RAL 5002, Ultramarine Blue Semi Gloss Stainless Steel, Powder Coated., RAL 5004, Black Blue Semi Gloss Stainless Steel, Powder Coated., RAL 5012, Light Blue Semi Gloss, Stainless Steel, Powder Coated., RAL 5013, Cobalt Blue Semi Gloss, Stainless Steel, Powder Coated., RAL 5018, Turquoise Blue Semi Gloss, Stainless Steel, Powder Coated., RAL 5022, Night Blue Semi Gloss, Stainless Steel, Powder Coated., RAL 6000, Patina Green Semi Gloss, Stainless Steel, Powder Coated., RAL 6006, Grey Olive Semi Gloss, Stainless Steel, Powder Coated., RAL 6018, Yellow Green Semi Gloss, Stainless Steel, Powder Coated., RAL 6019, Pastel Green Semi Gloss, Stainless Steel, Powder Coated., RAL 6027, Light Green Semi Gloss, Stainless Steel, Powder Coated., RAL 7001, Silver Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7004, Signal Grey Semi Gloss Stainless Steel, Powder Coated., RAL 7006, Beige Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7011, Iron Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7015, Slate Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7016, Anthracite Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7023, Concrete Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7033, Cement Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7044, Silk Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 8004, Copper Brown Semi Gloss, Stainless Steel, Powder Coated., RAL 8011, Nut Brown Semi Gloss, Stainless Steel, Powder Coated., RAL 8016, Mahogany Brown Semi Gloss, Stainless Steel, Powder Coated., RAL 8023, Orange Brown Semi Gloss, Stainless Steel, Powder Coated., RAL 8028, Terra Brown Semi Gloss, Stainless Steel, Powder Coated., RAL 9002, Grey White Semi Gloss, Stainless Steel, Powder Coated., RAL 9006, White Aluminum Semi Gloss, Stainless Steel, Powder Coated., RAL 9007, Grey Aluminum Semi Gloss, Stainless Steel, Powder Coated, RAL 9010, Pure White Semi Gloss, Stainless Steel, Powder Coated., RAL 9016, Traffic White Semi Gloss, Stainless Steel, Powder Coated., Real Burnished Brass, Real Polished Brass |
