DHI-ASR1100B-V1
Original price was: $85.99.$67.95Current price is: $67.95.
Dahua DHI-ASR1100B-V1 Waterproof RFID Reader
- Offers unlock through the card for ease of use.
- Contactless ID card reading.
- Reads cards at a 125 KHz frequency.
- Supports RS-485 and Wiegand communication.
- The Wiegand port supports W34 protocol and other custom protocols for compatability with third-party products.
- Users can keep their devices up to date through the website.
- Triggers sound alarms and the indicator light.
- All the ports come with overcurrent and overvoltage protection.

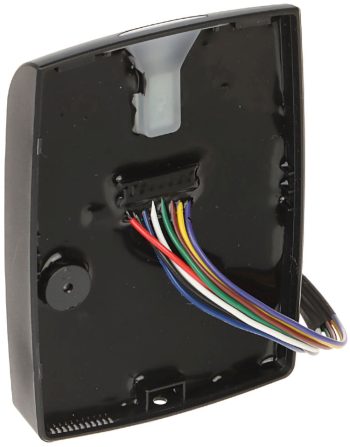

- The device’s interior has been sealed, and cables can be mounted on surfaces.
- IP67 rated (silicon surface treatment needed). The device is suitable for outdoor scenes.
- Description
- Attachment
- Speciifications
- Additional information
Description
A top-notch waterproof RFID card reader made for access control systems is the Dahua DHI-ASR1100B-V1. The company that makes it is Dahua Technology, which is known for making high-tech security items. This card reader is perfect for outdoor installations. It is built to withstand harsh weather conditions and provide reliable performance in any environment.
One of the key features of the Dahua DHI-ASR1100B-V1 is its compatibility with MIFARE 13.56 MHz IC cards. These cards are commonly used in access control systems and are known for their high level of security and reliability. This card reader also supports Wiegand and RS-485 protocols for easy integration with various access controllers. Therefore, it is a versatile choice for any security system.
You can count on the Dahua DHI-ASR1100B-V1 to work well and last a long time. It features a sturdy metal casing and an IP68 waterproof rating. This ensures that it can withstand exposure to harsh elements such as rain, dust, and extreme temperatures. This makes it an ideal choice for outdoor installations, such as parking lots, outdoor gates, or building entrances.
In addition to its rugged design, the Dahua DHI-ASR1100B-V1 is also user-friendly and easy to install. It comes with a mounting bracket for easy installation on various surfaces. Its compact size allows for discreet installation in any location. The card reader also has LED indicators and a buzzer to provide feedback to users. This makes it easy to use and understand.
Overall, the Dahua DHI-ASR1100B-V1 is a reliable and efficient RFID card reader that is suitable for a wide range of access control applications. With its waterproof and durable design, compatibility with various access controllers, and easy installation and use, the DHI-ASR1100B-V1 is a top choice. It is ideal for businesses and organizations looking to enhance the security of their premises.
| System | |
| Main Processor | 8-Bit |
| LCD | Blue Backlight |
| Protocol | Wiegand, RS-485 |
| Audio Indicator | Buzzer, Tamper Alarm |
| Reader | |
| Format | 13.56 MHz MIFARE |
| Range | 0.39 inches (9.91 mm)to 3.54 inches (8.99 cm) |
| Response Time | < 0.1 s |
| Interface | |
| Controller Comptability | One (1) RS-485 Channe |
| Certifications | |
| Safety | TBD |
| Electromagnetic Compatability (EMC) | TBD |
| Electrical | |
| Power Supply | 9V–15V DC/100mA |
| Environmental | |
| Operating Temperature | -22 °F to 140 °F |
| Operating Humidity | ≤ 95% RH |
| Ingress Protection | IP67 Ingress Protection |
| Construction | |

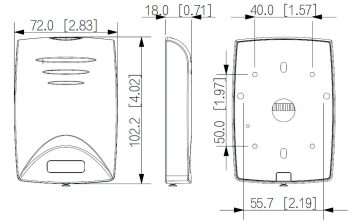

| Product Dimensions (L × W × H) | 2.83 inches (7.19 cm)x 4.02 inches (10.21 cm) x 0.71 inches (1.8 cm) |
| Gross Weight | 0.44 lb (0.2 kg) |

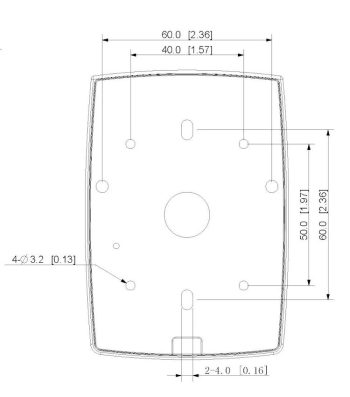

| Installation Method | Surface Mount |
| Accessory IC Card | |
| Model Number | IC-S50 |
| Standard | MIFARE S50, 13.56 MHz |
| Compatability | ISO/IEC 14443A |
| Range | Approximately 10.0 cm (3.94 inches) |
| Dimensions | 3.39 inches (8.61 cm)x 2.13 inches (5.41 cm) x 0.03 inches (0.76 mm) |
| Weight | 0.006 kg (0.013 lb) |
| Manufacturer/Brand | Dahua |
| Accessory IC Key Fob | |
| Model Number | IC-S50 |
| Standard | MIFARE S50, 13.56 MHz |
| Compatability | ISO/IEC 14443A |
| Range | Approximately 10.0 cm (3.94 inches) |
| Manufacturer/Brand | Dahua |
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 8 × 3 × 3 in |
