PWR-DR12033
Original price was: $190.00.$122.95Current price is: $122.95.

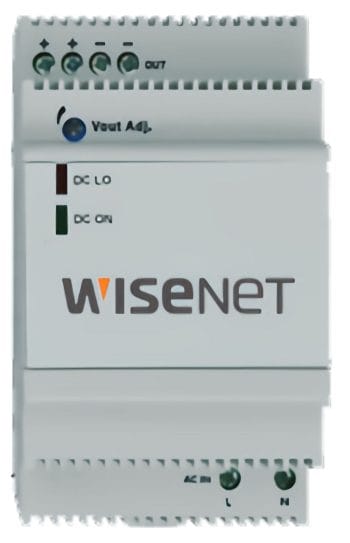

Hanwha PWR-DR12033 DIN Rail Mounting 33W Hardened Power Supply
- High Temperature-Rated, Hardened Power Supply for Wisenet Transmission products
- -40 °F (-40 °C) to 158 °F (70 °C) With -40 °F (-40 °C) Start-Up
- Universal AC input: 90 to 264 VAC, 47-63Hz
- Supplies 12VDC 33 Watts (2.75A)
- Adjustable output voltage range support
- Mounts on standard 7.5 or 15 mm DIN-rail
- Small package for limited space installations, fan-less design
- Universal AC input: 90 to 264 VAC, 47-63Hz
- Mounts on standard 7.5 or 15 mm DIN-rail
- Adjustable output voltage range support
- High operating efficiency; up to 80%
- Small package for limited space installations
- Natural convection cooling; no troublesome fans
SKU: PWR-DR12033
UPC: 849688012277
Categories: Accessories, CCTV Power, Power Supply Adapter
Tags: Adjustable Output Voltage Range Support, DIN Rail Mountable, NDAA Compliant;
Brand: Hanwha Vision, NDAA- Description
- Attachment
- Additional information
- Specifications
Description
Hanwha PWR-DR12033 is a reliable and powerful power supply designed for industrial use. The voltage range of 90 to 264 VAC and the frequency range of 47-63 Hz make it popular. This power supply can meet the needs of your industrial products.
One of the standout features of the Hanwha PWR-DR12033 is its high operating efficiency of up to 80%. Converting more of the input power into usable energy conserves power. This is especially important for industrial products that require continuous and efficient power supply to function properly.
The Hanwha PWR-DR12033 is very efficient and has a quiet switch that keeps your industrial equipment powered up. Changes in the power supply can have a negative impact on delicate equipment. You can be sure that your industrial products will receive clean and reliable power with this power supply.
The PWR-DR12033 is easy to use. Mounting it on a DIN rail makes it suitable for various industrial applications. You can also mount it on a mating industrial switch or any product that uses DIN rail mounting adapters. This versatility and flexibility make the Hanwha PWR-DR12033 a practical and convenient choice for your industrial power supply needs.
High-quality power supplies like the Hanwha PWR-DR12033 are perfect for industrial products requiring 12 VDC power input. High operating efficiency, low noise switching mode, and universal AC input make it a solid choice for any industrial environment. For all your security power supply requires, trust Collsam Distribution to provide you with the best products and services. Choose the Hanwha PWR-DR12033 for a reliable and efficient power supply solution for your industrial products.
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 5 × 6 in |
| Power Input | |
| Ted Input Voltage | 90 to 264 VAC or 120 to 375 VDC |
| Input Current Line | 115 / 230 VAC, 680 / 410 mA |
| Current Power Dissipation | 115 / 230 VAC, 25 / 50 A 230 VAC, 7.3 W |
| Power Output | |
| Voltage Accuracy | +1% |
| Minimum Load Line | 0% |
| Regulation Voltage | ±1% |
| Trim Range Hold | 12 to 14 VDC |
| Electrical & Mechanical | |
| LED Indicators | DC ON: At Start Up (Green) DC LOW: After Start Up (Red) |
| Size (L×W×H) | 3.58 inches (9.09 cm) × 2.09 inch (5.31 cm)× 2.22 inches (5.64 cm) |
| Shipping Weight: | 0.42 lb (190.51 g) |
| Connectors | |
| Ethernet | RJ-45 |
| Operating Power | Powered by PoE or 2-pin screw terminal for local power |
| Environmental | |
| MTBF | >500,000 hours @ 104 °F (40 °C) |
| Operating Temp | -40 °F (-40 °C) to 158 °F (70 °C) |
| Storage Temp | -40 °F (-40 °C) to 185 °F (85 °C) |
| Relative Humidity | 20% to 90% (non-condensing) |
