TR-C12VDC09P10A

Description

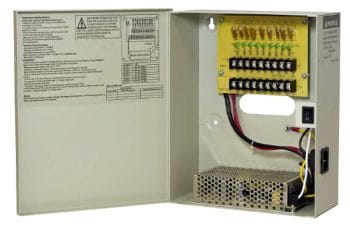

TR-C12VDC09P10A 9 Camera 12v DC 10AMP PTC Fuse-Free Power Box

TR-C12VDC09P10A power supply box, also known as a power distribution box, allows surveillance system installers to easily manage the power to multiple CCTV cameras at a central point (usually at the location of the DVR). This allows your camera installation to be neater.

For example, instead of having 9 individual transformers plugged into a power strip or electric surge protector, all of your camera power wires can neatly be run to a 9 port power supply box.

Power supply boxes are typically installed near your DVR. TR-C12VDC09P10A box is very simple to install. Each camera’s power cable simply screws into the power distribution block inside the box. TR-C12VDC09P10A power supply box plugs into a standard power outlet. No electrician is required for installation. All of our boxes now use PTC auto reset fuses.

TR-C12VDC09P10A Have a Thermal Cutoffs Protection (TCO): each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.

• 12V DC, 9 Chanel, 10 AMP, 1.85A per Channel
• Positive Temperature Coefficient (PTC), Auto Reset Fuse
• Don’t have to replace burned fuses

• Input Power: AC 115V
• Output Power: 12V DC 10AMP Output
• PTC Protection: each output
• LED Indicators: each output
• Output over-voltage protection
• Over-current protection
• Output short circuit protection
