C888e64A

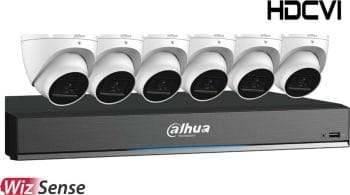

Dahua Technology C888E64A 8-Channel 4K UHD Pentabrid HDCVI DVR with 4TB HDD and 6 4K Outdoor Night Vision Turret Cameras

The Dahua C888E64A HDCVI Security System provides the components to quickly install a video surveillance solution.

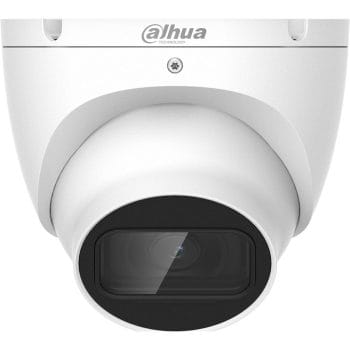

The A81AJ22 HDCVI cameras offer the clarity of 8 MP video with True Wide Dynamic Range, and the X82R2A4 HDCVI DVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes.

The cameras and the HDCVI DVR support multiple video outputs, making the kit compatible with many existing systems.

The C888E64A kit features Dahua’s HDCVI technology that leverages an existing coaxial infrastructure, saving time and costs from running networking and power cables.

Perimeter Protection

Dahua Analytics+ includes Tripwire and Intrusion functions that offer custom tripwires based on object type for automation in limited access areas.

Perimeter Protection requires fewer pixels to detect an object to deliver improved accuracy and decreased false alarms due to lights, weather, trees, or animals.

Smart Motion Detection

The Smart Motion Detection, a component of Dahua’s Analytics+ technology, improves alarm accuracy and decreases the number of false alarms.

The C888E64A advanced SMD algorithm analyzes a scene for human or vehicle motion, while filtering out other motion due to trees, leaves, animals, weather, and triggers an alarm when detected.

AI Coding

The C888E64A AI’s Coding function puts recording emphasis on human or vehicular objects in the video scene.

This technology, based on constant bit rate (CBR), dynamically allocates increased bit rate to the target object while reducing the bit rate allocated to background objects.

AI Coding reduces bit rate and storage requirements by up to 50% when compared to the H.265 video compression standard.

Flexible Recording

The X82R2A4 HDCVI DVR offers a variety of configurable recording options and schedules that saves HDD space and active monitoring time.

The X82R2A4 HDCVI DVR monitors incoming video and can be programmed to record if motion is detected or if an alarm is triggered.

The HDCVI DVR can also be programmed to record on a schedule or at different intervals.

The C888E64A recording options and schedules can be set for each individual camera or copied to all cameras.

Long-Distance Transmission

HDCVI technology guarantees real-time transmission over long distances without loss of video quality. HDCVI devices provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or CAT 6 UTP cabling.

Multi-format Support

The C888E64A camera and X82R2A4 HDCVI DVR supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The C888E64A camera can switch between these four formats via the OSD menu or the switch located on the video output cable, making the camera compatible with not only HDCVI DVRs but also most existing HD/SD DVRs.

The X82R2A4 HDCVI DVR automatically recognizes the incoming signals of each attached camera without any setup, making installation easy and operation convenient.

Environmental

With a temperature range of –40° C to +60° C (–40 °F to +140 °F), the C888E64A cameras are designed for extreme temperature environments.

The C888E64A cameras, subjected to rigorous dust and water immersion tests, are certified to the IP67 rating, making them suitable for demanding outdoor applications.

The X82R2A4 HDCVI DVR features an operating temperature of –10° C to +55° C (+14° F to +131° F).
