X82B3A
Price range: $365.95 through $799.95

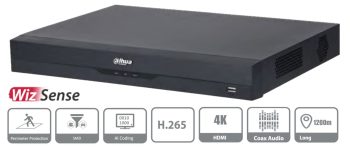

Dahua X82B3A4 4K 16 Channel Pentabrid HD-CVI DVR with Analytics 4K Recording Multiple Video Formats, Up to 10 TB Hard Drive
- H.265+, H.265, H.264+, H.264 Video Compression
- SMD security up to 16ch, 2ch Perimeter Protection, Facial Detection+
- AI Coding Processor
- HDCVI/AHD/TVI/CVBS/IP Video Inputs
- Supports 32 Channel IPC Access, 8MP per Channel
- 16/3 Alarm In/Out, 4/1 Audio In/Out
- 2 SATA Ports, up to 10 TB Hard Drive
- 4K@7fps/4MP@15fps Encoding
SKU: X
Categories: 16 Channel DVR Coaxial HD Recorders, Analog Coaxial, Analog Coaxial DVR Recorders, HD Coaxial DVR Recorders
Tags: 12V DC power, 8 Megapixel Recording Resolution, CVBS, Dahua Technology, Digital And Analog, EX-SDI, HD-AHD, HD-TVI, HDCVI Penta-Brid, Home Security, ONVIF, Security Cameras, Smart H.265+ and Smart H.264+ Dual Codec, Two-Way Audio, X82B3A- Description
- Attachment
- Specifications
- Additional information
- Reviews (0)
Description
The Dahua X82B3A is a video surveillance device capable of recording 16 channels at 4K@7fps/4MP@15fps and encoding H.265+/H.265/H.264+/H.264 video compressions. This gadget also supports 16 channels of SMD and 2 channels for perimeter protection or 2 channels for facial detection+ and AI coding. Real-time video recording is supported using HDCVI, AHD, TVI, CVBS, and IP video inputs. You’ve got 32 channels of IPC input, each with a maximum 8MP resolution. The X82B3A also features 16/3 alarm input/output, 4/1 audio input/output, and 2 SATA ports.
The X82B3A is a great choice for those who require high-end and sophisticated surveillance recording. It supports up to 4K@7fps/4MP@15fps encoding H.265+/H.265/H.264+/H.264 video compressions, which ensures you receive the highest quality recordings. It additionally provides support for SMD, perimeter protection, Facial detection+, and AI coding for enhanced security. For enhanced flexibility and performance, HDCVI/AHD/TVI/CVBS/IP video inputs up to 32 channels of IPC access are available.
X82B3A is easy to set up and use. It has 16 alarm input/outputs, 4 audio input/output, and 2 SATA ports that make installation and operation easy. The device also features efficient storage and backup, with multiple options available, such as through the network or with the 2 SATA ports.
The X82B3A is also extremely reliable and secure, as the device supports the latest encryption technology to protect the data and ensures the safety of your recordings. It also features an intuitive interface and advanced technology for hassle-free operation and maximum control over your recordings.
Overall, the Dahua X82B3A is an ideal choice for high-performance and secure surveillance recording. It is easy to install and operate, and supports the latest video compression and encryption technology. It also supports multiple inputs and alarm in/out, as well as audio in/out and SATA ports. Not only that, but it is perfect for those who need the highest quality surveillance recording for security or monitoring purposes.
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Analytics+ Perimeter Protection¹ | |
| Performance | • Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on 6 channels • 10 Tripwire/Intrusion rules per channel |
| Object Classification | • Human or Vehicle • Secondary Recognition for Tripwire and Intrusion |
| Search | • Search by object classification (human or vehicle) |
| Analytics+ Smart Motion Detection¹ | |
| Performance | • Detect motion based on object classification (human or vehicle) • Decreased false alarms from leaves, lights, animals • Configure functions on 16 channels |
| Search | • Search by target classification |
| Interface | |
| Analog Camera Input | 16 Channels, BNC |
| HDCVI | 8 MP, 6 MP, 5 MP, 4 MP, 1080p, 720p |
| AHD | 8 MP, 6 MP, 5 MP, 4 MP, 1080p, 720p |
| TVI | 8 MP, 6 MP, 5 MP, 4 MP, 1080p, 720p |
| CVBS | NTSC |
| IP Camera Input | 16+16 channels, each channel up to 8 MP (The recording rate is dependent on the maximum resolution and frame rate of the connected IP camera.) |
| Audio | Input: Four (4) Channels, RCA Output: One (1) Channel, RCA |
| Two-way Talk | Audio Input Channel 1 In/ Audio Output, RCA |
| Display | |
| Interface | One (1) HDMI (3840 × 2160) One (1) VGA (1920 × 1080) |
| Native Output Resolution | 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Maximum Playback Decoding | 16 Channels of 4 MP/3MP at 7 fps 16 Channels of 4 M-N/1080p at 15 fps 16 Channels of 720p, 960H at 30 fps Eight (8) Channels of 4K at 7 fps Eight (8) Channels of 6MP at 10 fps Eight (8) Channels of 5MP at 12 fps Eight (8) Channels of 4 M-N, 1080p, 720p, 960H at 30 fps |
| Multiscreen Display | IP extension mode disabled: 1/4/8/9/16 IP extension mode enabled: 1/4/8/9/16/25/36 |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Network | |
| Interface | One (1) RJ-45 (1000 Mbps) Port |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS) |
| Maximum User Access | 128 Users |
| Mobile Operating System I | IOS, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips |
| Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering, and Diagnosis |
| Alarm Input | Eight (8) Channels |
| Relay Output | Three (3) Channels |
| Playback and Backup | |
| Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to 1 second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | Two (2) SATA Ports, up to 10 TB capacity for each disk |
| Auxiliary Interface | |
| USB | One (1) USB 2.0 Port and One (1) USB 3.0 Port |
| RS485 | One (1) Port for PTZ Control |
| Electrical | |
| Power Supply | 12 VDC, 5 A |
| Power Consumption | < 15 W, without HDD |
| Construction | |

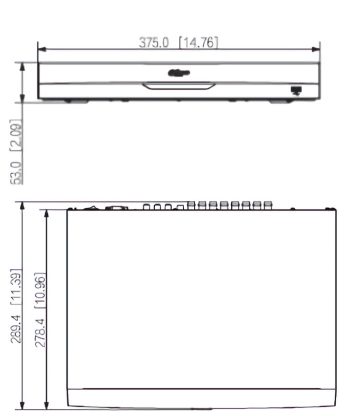

| Dimensions | 1U, 375.0 mm x 278.40 mm x 53.0 mm (14.76 in. × 10.96 in. × 2.09 in.) |
| Net Weight | 4.20 lb (1.91 kg) |
| Gross Weight | 7.0 lb (3.18 kg) |
| Installation | Desktop or Rack-mount |
| Video Transmission Distance | |
| RG-59/U Coax | 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 4K/4MP: 500 m (1640.42 ft) |
| RG-6/U Coax | 720p: 937 ft (285.6 m) 1080p: 2624.67 ft (800 m) 4K/4MP: 2296.59 ft (700 m) |
| CAT 6 UTP (balun required) | 720p: 1476.38 ft (450 m) 1080p: 984.25 ft (300 m)) 4K/4MP: 984.25 ft (300 m) |
| Environmental | |
| Operating Conditions | 14 °F (-10 °C) to 131 °F (55 °C), 0% to 90% RH |
| Storage Conditions | -4 °F (-20 °C) to 158 °F (70 °C), 0% to 90% RH |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others |
| Certifications | |
| Safety | EN 60950-1 IEC 60950-1 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 Subpart B EN 61000-3-2 EN 61000-3-3 EN 55032 EN 50130 EN 55024 |
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 21.6 × 16.5 × 7 in |
| Hard Drive | No Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive |
