DS-2CD6D52G0-IHS Multi-Sensor Dual-Directional PanoVu Camera



In stock

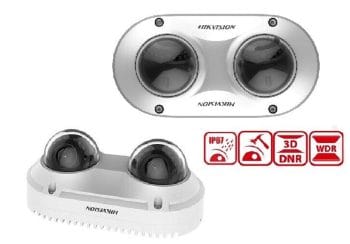

DS-2CD6D52G0-IHS Multi-Sensor Dual-Directional PanoVu Camera

The Hikvision PanoVu DS-2CD6D52G0-IHS Dual- Directional PanoVu Camera features a dual-lens design to capture two separate wide angle views. Other features include H.265+ video compression, audio I/O, an internal microSD memory card slot (up to 256 GB), and an IR range of up to 33 feet (10 meters).

  • Minimum Illumination Color: 0.009 lux @ (ƒ/1.6, AGC on), B/W: 0.0018 lux @ (ƒ/1.6, AGC on), 0 lux with IR
  • 2560 × 1920 @ 30 fps
  • Flexible Lens: P: -90° to 90°; T: 0° to 60° (2.8 mm), 0° to 70° (4 mm/6 mm); R: 0° to 355
  • H.265+, H.265, H.264+, H.264
  • Frame Rate: Main Stream 30 fps (2560 × 1920, 2048 × 1536)
  • Built-in MicroSD/SDHC/SDXC Card Slot, up to 256 GB
  • 12 VDC, POE (802.3af)
Read More About Lens Angel
2.8 mm for a 90° viewWith a wide field of view, the 2.8 mm lens is a popular choice for static camera surveillance. It can cover a wide area with just one camera.The 2.8 mm lens is very popular indoors. This is because you only need one camera mounted in a corner to monitor a whole room. Though, they’re also effective outdoors for areas like train station platforms.
4 mm for a 60° viewA 4 mm lens is useful for detection & identification.Although it has more clarity at a further distance, the 4 mm lens shows a similar scene to the 2.8 mm. The main difference is the reduced angle of view, which gives the illusion that objects are closer to the camera.This lens is often used in outdoor areas like car parks, where detail is important. It’s also helpful when you want a narrower view to avoid monitoring unnecessary areas – an aisle in supermarket, for example.
6 mm for a 45° telephoto viewThe 6 mm lens gives a narrow, but detailed distance view. A telephoto lens can also be used to monitor a specific object like tills.Customers often use this lens for monitoring the entrance to a car park, or a doorway. It’s also useful for a corridor, especially when combined with corridor format/view technology.


Hikvision PanoVu DS-2CD6D52G0-IHS 10MP Outdoor Dual-Sensor Network Camera with Night Vision, 2.8 mm, 4 mm, or 6 mm Lens and Heater

Monitor an outdoor area with the PanoVu DS-2CD6D52G0-IHS 10MP Outdoor Dual-Sensor Network Camera from Hikvision.

This DS-2CD6D52G0-IHS uses two 5MP 1/2.7″ progressive scan CMOS sensors to capture 2560 x 1920 resolution video per sensor at 30 fps, for a total resolution of 10MP.

IR LEDs and supplemental white light provide up to 33′ of night vision.

The camera is equipped with dual 2.8 mm, 4 mm, or 6 mm Lens fixed lenses that each deliver a 97° horizontal field of view.

Two-way audio is possible thanks to two built-in microphones, an audio input, and an audio output.

A memory card slot accepts microSD/SDHC/SDXC cards up to 256 GB (available separately).

Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.

It is housed with a built-in heater in an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism.

  • Dual-directional camera with a dual-lens design, capable of capturing two separate wide-angle views
  • Built-in heater
  • IR cut filter for day and night functionality
  • H.265+, H.264+, H.265, H.264, and MJPEG video codecs
  • Scalable Video Coding (SVC) for H.265 and H.264
  • CBR and VBR
  • Slow shutter support
  • The Camera pivots horizontally from -90 to 90° and vertically from 0 to 60°
  • 0 to 355° rotation range
  • 120 dB wide dynamic range
  • Image enhancements include 3D-DNR, defog, electronic image stabilization, backlight compensation, and highlight compensation
  • Image settings include saturation, brightness, contrast, sharpness, and white balance
  • Image parameters switch and picture overlay
  • Region of interest (four fixed regions for each stream)
  • Motion detection, video tampering alarm, and exceptions (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • General functions include anti-flicker, heartbeat, mirror, and privacy masks
  • Reset button
  • Up to 32 users with three host levels (admin, operator, and user)
  • Up to 20 channels in simultaneous live view
  • 100M self-adaptive RJ45 Ethernet port
  • RS-485 port
  • 2 built-in microphones, audio input, and audio output
  • Alarm input and output
  • Environmental noise filtering
  • Linkage methods include upload to FTP/NAS/memory card, notifying surveillance center, and sending email
  • Compatible with Internet Explorer 8 or higher (plugin required), Chrome 57 or higher, Firefox 52 or higher, Safari 11 or higher, iOS, Android, iVMS-4200, and Hik-Connect
  • UL, CE, CB, FCC, WEEE, RoHS, RCM, and Reach certified



DS-2CD6D82G0-IHS Dual-Directional PanoVu Camera Datasheet

Quick Start Guide


DS-2CD6D82G0-IHS Dual-Directional PanoVu Camera Quick Start Guide

User's Manual


DS-2CD6D82G0-IHS Dual-Directional PanoVu Camera Users Manual

Additional information

Weight2.3 lbs
Dimensions8.9 × 4.9 × 6.8 in
Lens Angel

2.8 MM, 4 MM, 6 MM
