DS-2TD2628-3/QA
Original price was: $804.00.$643.00Current price is: $643.00.
DS-2TD2628-3/QA Thermal and Optical Bi-spectrum Network Bullet Camera
Hikvision DS-2TD2628 Thermal and Optical Bullet Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision’s deep learning technology.
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25 °C, F1.0)
- Video content analysis: vehicle/human classification
- line crossing, intrusion, region entrance and exit
- Temperature exception alarm for fire prevention, -4 °F (-20 °C) to 302 °F (150 °C), ± 14.4 °F (± 9.78 °C))
- 3 mm Thermal Lens Options
- PoE (802.3af), 12 VDC, Maximum 6.5 W
SKU: 842571143188
Categories: Bullet Thermal Cameras, Thermal Cameras
Tags: Thermal Camera, Thermal Camera Outdoor Bullet- Description
- Attachment
- Additional information
Description

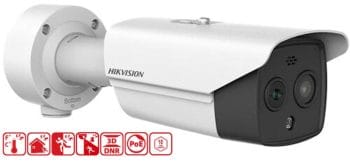

Hikvision HeatPro DS-2TD2628-3/QA Outdoor Bispectrum Thermal and Optical Network Bullet Camera
Hikvision HeatPro DS-2TD2628-3/QA Outdoor Bispectrum Thermal and Optical Network Bullet Camera is equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision’s deep learning technology.
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (77 °F (25 °C), F1.0)
- Video content analysis: vehicle/human classification
- Line crossing, intrusion, region entrance and exit
- Temperature exception alarm for fire prevention, -4 °F (-20 °C) to 302 °F (150 °C), ± 14.4 °F (-9.78 °C)
- 3.6 mm thermal, 4.3 mm optical lenses
- PoE (802.3af), 12 VDC, maximum 6.5W
DRI Range Table
* The table is only for reference and the performance may vary according to different environment.
* The optimal detection, recognition, and identification distances are calculated according to Johnson’s Criteria.
Detection Range: In order to distinguish an object from the background, the object must be covered by 1.5 or more pixels.
Recognition Range: In order to classify the object (animal, human, vehicle, etc.), the object must be covered by 6 or more
pixels.
Identification Range: In order to identify the object and describe it in details, the object must be covered by 12 or more
pixels
.
| Detection Range (Humans: 1.8 × 0.5 m) | Detection Range (Vehicles: 1.4 × 4.0 m) | Recognition Range (Humans: 1.8 × 0.5 m) | Recognition Range (Vehicles: 1.4 × 4.0 m) | Identification Range (Humans: 1.8 × 0.5 m) | Identification Range (Vehicles: 1.4 × 4.0 m) | ||||||||||||
| 150 m (492.13 ft.) | 460 m (1,509.19 ft.) | 38 m (124.67 ft.) | 112 m (367.45 ft.) | 19 m (62.34 ft.) | 56 m (183.73 ft.) | ||||||||||||
Smart Function Table
* The table is only for reference and the performance may vary according to different environment.
| VCA Range (Humans: 1.8 × 0.5 m) | VCA Range (Vehicles: 1.4 × 4.0 m) | Temperature Measurement (Object: 1 × 1 m) | Temperature Measurement (Object: 0.2 × 0.2 m) | ||||||||||||||
| 28.8 m (94.49 ft.) | 75.6 m (248.03 ft.) | 58.3 m (191.27 ft.) | 11.7 m (38.39 ft.) | ||||||||||||||
Additional information
| Weight | 3.41 lbs |
|---|---|

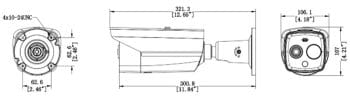

| Dimensions | 12.65 × 4.18 × 4.21 in |
