DS-2TD2628-7/QA
Original price was: $804.00.$643.00Current price is: $643.00.
Hikvision DS-2TD2628-7/QA HeatPro Series Thermal and Optical Bi-Spectrum Bullet IP Camera, 7 mm Lens.
Hikvision DS-2TD2628-7/QA Thermal and Optical Bullet Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision’s deep learning technology.
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25 °C, F1.0)
- Video content analysis: vehicle/human classification
- line crossing, intrusion, region entrance and exit
- Temperature exception alarm for fire prevention, -4 °F (-20 °C) to 302 °F (150 °C), ± 14.4 °F (± 9.78 °C))
- 6.4 mm Optical Focal Length
- 6.9 mm Thermal Focal Length
- 100′ IR Distance
- Video Content Analysis (VCA)
- PoE (802.3af), 12 VDC, Maximum 6.5 W
SKU: 842571143195
Categories: Bullet Thermal Cameras, Thermal Cameras
Tags: Thermal Camera, Thermal Camera Outdoor Bullet- Description
- Attachment
- Additional information
Description

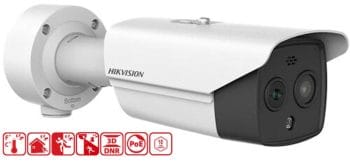

Hikvision HeatPro DS-2TD2628-7/QA Outdoor Bispectrum Thermal and Optical Network Bullet Camera
Hikvision DS-2TD2628-7/QA Thermal and Optical Bi-spectrum Network Bullet Camera supports video analysis for perimeter
protection, and also temperature exception alarm for early fire prevention.
With the deep learning algorithm, it can realize high precision VCA detection and real-time alarm. These camera series can be widely applied to villas, communities, parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25 °C, F1.0)
- Video content analysis: vehicle/human classification
- Thermal Focal Length 6.9 mm
- Focal Length 6.4 mm
- Temperature exception alarm for fire prevention, -4 °F (-20 °C) to 302 °F (150 °C), ± 8 °C (± 14.4 °F)
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
DRI Range Table
* The table is only for reference and the performance may vary according to different environment.
* The optimal detection, recognition, and identification distances are calculated according to Johnson’s Criteria.
Detection Range: In order to distinguish an object from the background, the object must be covered by 1.5 or more pixels.
Recognition Range: In order to classify the object (animal, human, vehicle, etc.), the object must be covered by 6 or more pixels.
Hikvision HeatPro DS-2TD2628-7/QA Outdoor Bispectrum Thermal and Optical Network Bullet Camera DRI Range
Identification Range: In order to identify the object and describe it in details, the object must be covered by 12 or more pixels.
| Detection Range (Humans: 1.8 × 0.5 m) | Detection Range (Vehicles: 1.4 × 4.0 m) | Recognition Range (Vehicles: 1.4 × 4.0 m) | Identification Range (Humans: 1.8 × 0.5 m) | Identification Range (Vehicles: 1.4 × 4.0 m) |
| 287 m (941.6 ft.) | 881 m (2,890.42 ft.) | 220 m (721.78 ft.) | 36 m (118.11 ft.) | 110 m (360.89 ft.) |
| Smart Function Table * The table is only for reference and the performance may vary according to different environment. | ||||
| VCA Range (Humans: 1.8 × 0.5 m) | VCA Range (Vehicles: 1.4 × 4.0 m) | Temperature Measurement (Object: 1 × 1 m) | Temperature Measurement (Object: 0.2 × 0.2 m) | |
| 55.2 m (181.1 ft.) | 144.9 m (475.39 ft.) | 116.7 m (382.87 ft.) | 23.3 m (76.44 ft.) | |
Additional information
| Weight | 3.41 lbs |
|---|---|

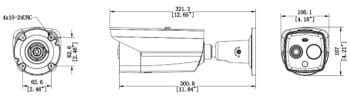

| Dimensions | 12.65 × 4.18 × 4.21 in |
