DS-2TD1228T-2/QA
Original price was: $1,280.00.$1,024.00Current price is: $1,024.00.

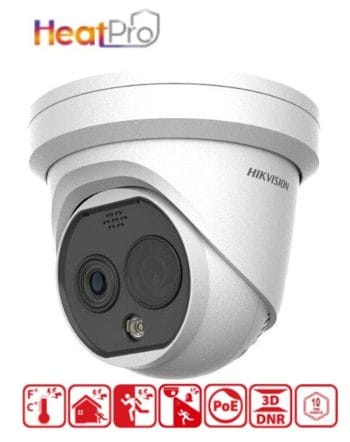

DS-2TD1228T-2/QA Bi-spectrum Thermography Network Turret Camera
Hikvision DS-2TD1228T-2/QA Bi-spectrum Thermography Network Turret Camera can be applied to warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.
The accurate temperature measurement device sends temperature exception alarms for loss prevention.
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25 °C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -4 °F (-20 °C) to 1,022 °F (550 °C)), Max. (± 2 °C, ± 2%)
- Smoking detection Algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
SKU: 842571143164
Categories: Dome Thermal Cameras, Thermal Cameras
Tags: Outdoor Thermal And Optical Network Turret Camera, Thermal camera outdoor
Compare
- Description
- Attachment
- Additional information
Description
Hikvision DS-2TD1228T-2/QA Bi-Spectrum Thermography Turret Camera (2.1 mm Lens)
Hikvision DS-2TD1228T-2/QA Bi-spectrum Thermography Network Turret Camera can be applied to warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.
The accurate temperature measurement device sends temperature exception alarms for loss prevention.
Hikvision DS-2TD1228T-2/QA Thermal and Optical Bullet Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision’s deep learning technology.
DRI Range Table
* The table is only for reference and the performance may vary according to different environment.
* The optimal detection, recognition, and identification distances are calculated according to Johnson’s Criteria. Detection Range:
* The optimal detection, recognition, and identification distances are calculated according to Johnson’s Criteria. Detection Range:
In order to distinguish an object from the background, the object must be covered by 1.5 or more pixels.
Recognition Range: In order to classify the object (animal, human, vehicle, etc.), the object must be covered by 6 or more pixels.
Identification Range: In order to identify the object and describe it in details, the object must be covered by 12 or more pixels.
Identification Range: In order to identify the object and describe it in details, the object must be covered by 12 or more pixels.
| Detection Range (Vehicles: 1.4 × 4.0 m) | Detection Range (Humans: 1.8 × 0.5 m) | Recognition Range (Vehicles: 1.4 × 4.0 m) | Recognition Range (Humans: 1.8 × 0.5 m) | Identification Range (Vehicles: 1.4 × 4.0 m) | Identification Range (Humans: 1.8 × 0.5 m) | |||||||||||||
| 268 m (879 ft.) | 88 m (288 ft.) | 67 m (219 ft.) | 22 m (72 ft.) | 34 m (111 ft.) | 11 m (36 ft.) | |||||||||||||
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25 °C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -4 °F (-20 °C) to 1,022 °F (550 °C)), Max. (± 2 °C, ± 2%)
- Smoking detection Algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
- 2 mm Thermal Lens Options
- PoE (802.3af), 12 VDC, Maximum 6.5. W
Additional information
| Weight | 2.07 lbs |
|---|---|
| Dimensions | 5.54 × 5.45 × 4.85 in |
