DHI-MLCDF7-E
Original price was: $469.99.$359.95Current price is: $359.95.
Dahua DHI-MLCDF7-E 7-in LED backlit screen designed for vehicle cabin installation
- 800 × 480 resolution at 75 Hz
- Brightness of 350 CD/m²
- Easy connection to MXVR or MNVR
- Real-time live view of camera
- M12 A-Coding Connector
- Enhanced video experience with LED backlight
- High-resolution view of captured footage
- Description
- Attachment
- Additional information
- Specifications
Description
The Dahua DHI-MLCDF7-E is a 7-inch LED backlit mobile screen designed to be installed in your vehicle’s cabin. This device offers a resolution of 800 × 480 at 75 Hz and a brightness of 350 Cd/M², making it perfect for surveillance applications. You can connect it with MXVR or MNVR to view the real-time live view of the camera.
This Dahua product features an M12 A-Coding connector for secure and reliable data transmission. It also comes with an integrated power supply and a DC12V/3A power adapter for easy installation. To enhance your viewing experience, the screen also has color balance, sharpness, and contrast control. Additionally, this device comes with an adjustable bracket and a shock-proof design to prevent damage while driving.
The Dahua DHI-MLCDF7-E has a wide viewing angle of 160° and a signal input of BNC and HDMI. It is also compatible with multiple video inputs, such as NTSC and PAL. With its BNC input, you can connect it with a 2.1mm CCTV camera and view the live images on the screen. On the other hand, its HDMI input allows you to connect it to other devices such as computers and tablets.
This 7-inch LED backlit screen is a perfect choice for any vehicle. It is easy to install, and it is also waterproof to protect it from moisture and dust. It also has a low-power consumption, which is an important factor for those looking to save on energy costs. The Dahua DHI-MLCDF7-E has a slim design and an aesthetic look that adds to the aesthetic appeal of any vehicle.
The Dahua DHI-MLCDF7-E is a great solution for surveillance applications in your vehicle. It is easy to install, offers excellent image quality, and has a low-power consumption. With its wide viewing angle, multiple video inputs, and adjustable bracket, this 7-inch LED backlit mobile screen is an ideal choice for any vehicle.
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 8.39 × 5.55 × 4.33 in |
| Display Device | Color Liquid Crystal Display (LCD) |
| Picture Area | 7-in. Widescreen |
| Panel Type | TFT-LCD |
| Backlight | LED |

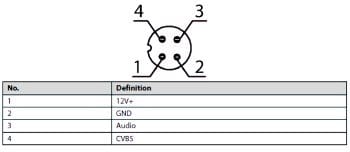

| Connection Type | M12 A-coding |
| Resolution | 800 × 3 (RDB) x 480 |
| Effective Display Area | 6.07 inches (15.42 cm) × 3.38 inch (8.59 cm) |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Field Frequency | 50 Hz, 60 Hz, 75 Hz |
| Response Time | 25 mm |
| Power | 6 VDC to 36 VDC, < 7.5 W (M12 A-coding connector) |

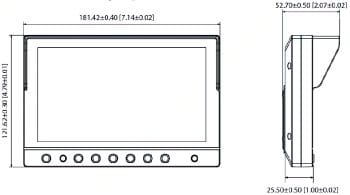

| Dimensions (L × W × H) | 7.81 inches (19.84 cm) × 5.46 inch (13.87 cm) × 1.01 inch (2.57 cm) |
| Working Temperature | -14 °F (-25.56 °C) to +140 °F (60 °C) |
