DH-PFS3006-4GT-60
The Dahua DH-PFS3006-4GT-60 is a 4-port PoE ± compliant Gigabit unmanaged network switch.
- Four 10,100, or 1000 Mbps Ethernet ports
- Two 10, 100, or 1000 Mbps uplink ports
- Layer 2 commercial switch
- Full Gigabit access IEEE802.3af, IEEE802.3at and Hi-PoE
- Intelligent PoE power consumption management
- Enables efficient power and data management
- Ideal for applications that require high bandwidth
- Keeps power and data flowing during power faults
SKU: SML-6GPA
UPC: 810161160037
Categories: Network Switch, PoE Switches, Telephone and Network
Tags: 4-Port Managed POE+ Switch., IEEE802.3u, IEEE802.3X;, Layer 2 Network ePoE Switch, NDAA Compliant;, PoE (IEEE 802.3), PoE (IEEE 802.3ab), PoE (IEEE 802.3af)- Description
- Attachment
- Speciifications
- Additional information
- Reviews (0)
Description
Dahua DH-PFS3006-4GT-60 4-Port PoE+Â Gigabit unmanaged network switch can keep your network and devices connected even if the power goes out. It has 4 ports that support PoE+. This innovative commercial-grade switch offers advanced features such as Intelligent PoE power consumption management. Additionally, it provides full gigabit access.
The DH-PFS3006-4GT-60 4-Port PoE+Â Intelligent PoE power consumption management feature monitors power consumption of all devices. In the event of large power fluctuations, the switch intelligently shuts down one port at a time. Instead of all ports at once, this helps to prevent an entire system disruption. Thus, it ensures the device maintains a reliable connection even if power begins to drop.
Full gigabit access can be provided by four 10, 100, and 1000 Mbps Ethernet ports, as well as two (2) 10, 100, and 1000 Mbps uplink ports. This allows for a high-speed and reliable connection for businesses or home users. The DH-PFS3006-4GT-60 also supports IEEE802.3af, IEEE802.3at and Hi-PoE, making it compatible with most standard PoE applications.
This DH-PFS3006-4GT-60 switch has a high-performance switching engine, a large buffer, a low transmission delay, and high reliability. It can also offer a power budget of up to 60 W. This makes it suitable for heavier devices such as IP cameras.
The Dahua DH-PFS3006-4GT-60 is an ideal choice for any home or business network. It offers reliable and intelligent power management features. This keeps your data and devices connected even in the event of a power fault. The switch also offers full gigabit access. Furthermore, it is compatible with most standard PoE applications, making it a great choice for commercial users.
| Ethernet Ports | Ports 1 through 4: 10/100/1000 (PoE), RJ45 Ports 5 and 6: 10/100/1000 (Uplink), RJ45 |
| PoE Power Consumption | Port 1: ≤ 60 W (Hi-PoE) Ports 2, 3, and 4: ≤ 30 W Total Power Consumption: ≤ 60 W |
| PoE Protocol | PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE |
| Standards Compliance | IEEE802.3, IEEE802.3u, IEEE802.3x |
| PoE PIN Assignment | PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Switching Capacity | 14 Gbps |
| Packet Forwarding Rate | 8.928 Mpps |
| Packet Buffer Memory | 1 Mpbs |
| MAC Table Size | 2K |
| Flow Control | Enabled (by default) |
| Power Input | 53 VDC, with external power adapter |
| Power Consumption, static | 0.96 W |
| Operating Temperature | 14° F to 131° F |
| Operating Humidity | 5% to 95%, Relative |
| Surge Protection | Common Mode: 2 KV Differential Mode: 1 KV |
| ESD | Air Discharge: 8kV Contact Discharge: 6kV |

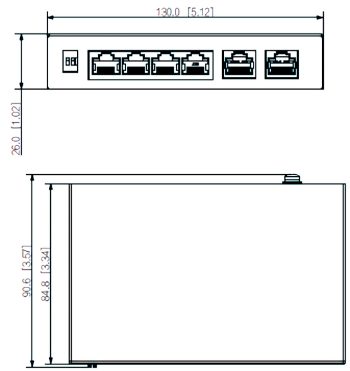

| Dimensions (W × D x H) | 5.12 inches (13 cm) × 3.35 inches (8.51 cm) × 1.02 inches (2.59 cm) |
| Weight | 0.66 lb (0.3 kg) |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 11 × 10 × 4 in |
