-35%

SPO-6011

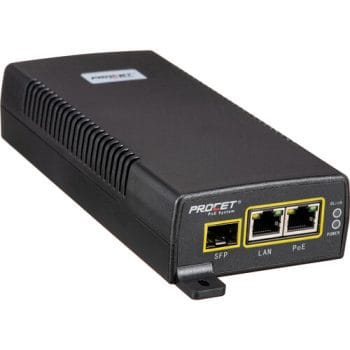

Upgrade your security system with Hanwha Techwin’s SPO-6011 60W PoE Injector. Compatible with various Ethernet standards, it powers multiple cameras and devices Front-Side View. Shop now at Collsam Distribution.

SPO-6011

Original price was: $365.00.Current price is: $237.95.

In stock
0 out of 5

Original price was: $365.00.Current price is: $237.95.

Hanwha Vision WiseNet SPO-6011 PoE injector 60 Watt

  • AC 100-240 V
  • One output connectors
  • for Hanwha Vision
    • XNP-C6403R
    • WiseNet X Plus
    • XNP-6400R
    • XNP-8250R
    • XNP-9250R
  • PoE injector
  • 60 Watt
  • black

Description

The Hanwha Techwin SPO-6011 60W PoE Injector can give up to 60 watts of power for Hanwha network cameras. The latest tech used in this injector ensures compatibility with common Ethernet switches and networked gadgets. With this injector, you can easily power your Hanwha XNP-9250R, XNP-8250R.

Hanwha Techwin SPO-6011 60W PoE Injector can deliver high-power PoE through Ethernet cabling. This implies that one can utilize their existing network infrastructure instead of relying on conventional power outlets. This not only saves you time and effort, but also makes it easier to set up your network cameras. With a maximum power output of 60 watts, this injector can power even the most power-hungry devices.

In addition to its high-power output, the SPO-6011 60W PoE Injector also boasts a compact and sleek design. This injector takes up minimal space in your network setup because of its small size. Server rooms or network closets are good places to use it because of its small size. The injector also features a built-in SFP slot, allowing you to easily connect SFP modules and expand your network capabilities.

At Collsam Distribution, we are committed to providing our customers with top-quality products and solutions. We are pleased to offer the Hanwha Techwin SPO-6011 60W PoE Injector to our customers. With this injector, you can be sure that your network cameras will always have the power they need. We’ve got all the info you require about POE, so you can count on us for everything.

In conclusion, the Hanwha Techwin SPO-6011 60W PoE Injector is a high-quality and reliable solution for powering Hanwha network cameras. This injector offers a convenient and efficient way to power your cameras. Collsam Distribution sells the SPO-6011 60W PoE Injector. We promise to give our customers the best PoE products and solutions. Trust us to be your reliable source for everything POE.

Datasheet

Download

Hanwha Techwin’s SPO-6011 60W PoE Injector. Compatible with various Ethernet standards, it powers multiple cameras and devices Datasheet. Shop now at Collsam Distribution.

Standard
  • IEEE802.3ab 1000Base-T Gigabit Ethernet
  • Full compliant with IEEE802.3af/at, PoE++
  • RoHS Compliance
  • WEEE Compliance
Input and Output
Input100-240Vac 1.5A 50/60Hz
Output55Vdc 1100mA
Power Pins 4/5(+), 7/8(-) and 3/6(+),1/2(-)
Data Speed10/100/1000BASE-T RJ45 Interfaces 1000BASE-X SFP Interfaces
Working Environment
Operating Temperature-40 °F (-40 °C) to 131 °F (55 °C)
Operating Humidity20% to 90%, non-condensation
Storage Temperature-40 °F (-40 °C) to 185 °F (85 °C)
Storage Humidity10% to 90%, non-condensation
Operating Altitude up to 10,000 ft (3.05 kilometers)
LED Indicator
Power indicatorGreen
Load active IndicatorGreen
SFP fiber indicatorGreen
LAN data indicatorYellow
PoE data indicatorYellow
Safety Approvals
cUL/UL, KC, RCM, NOM, BSMI, CE, SAA, PSB, SII, EAC, FCC, ST, CCC, Ukraine, BIS, PSE, CM, LOA, CB, UKCA
AC Surge Protection
Line-Earth 1.2/50us (8/20us)6KV
Line-Line 1.2/50us (8/20us)4KV
PoE Surge Protection
Protected line1,2,3,4,5,6,7,8
Common mode surge protection (10/700us) 6KV
Differential mode surge protection (10/700us) 6KV
Mechanical Characteristics
CasePlastic
ColorBlack
MountingWall-mounted
IP RatedIP40

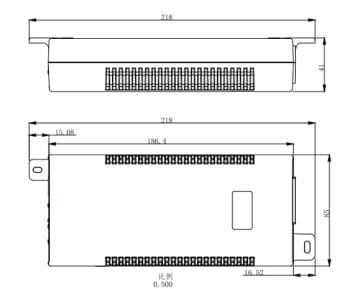

Size 8.58 inches (21.79 cm) × 3.35 inch (8.51 cm) x 1.61 inch (4.09 cm)
Weight11.9 ounces (0.45 kg)



Additional information

Weight2 lbs
Dimensions11 × 5 × 3 in
