TVST-AR324-16
$377.99

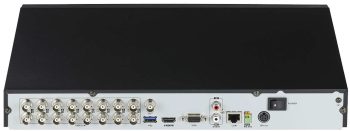

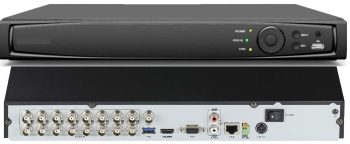

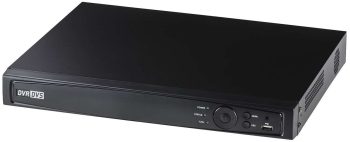

Eyemax TVST-AR324-16 is a 16-Channel Pentabrid DVR Supports HD-TVI HD-CVI AHD CVBS and 4 Megapixel IP Cameras H.265+
- Connectable to HD-TVI, AHD and analog cameras
- Up to 1-ch 1080p IP camera input
- Long-distance transmission over UTP and coaxial cable with max. 1200m for the 720p and max. 800m for the 1080p HD-TVI signal
- One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
- Simultaneous HDMI/VGA output at up to 1920×1080 resolution
- Independent CVBS output improves compatibility to the most possibility and serves as the aux output or live view output only.
- One SATA interface (up to 6 TB capacity per HDD)
- 4ch synchronous playback
- Smart search for efficient playback
- Supports 2-ch line crossing detection and intrusion detection
- VQD (Video Quality Diagnostics)
- Unlock pattern for device login for the admin and clear-text password available
- GUID file can be exported for password resetting and imported for finding the forgotten password
- Supports PTZ control via Omnicast VMS of Genetec protocol
- Cloud P2P & DDNS (Dynamic Domain Name System) for easy network management
- Output bandwidth limit configurable
SKU: TVST-AR334-16A
Categories: 16 Channel DVR Coaxial HD Recorders, HD Coaxial DVR Recorders
Tags: 16 Channel NVR, H.265+, HD 1080P, HDCVI/AHD/TVI/CVBS IP Camera Auto-detect, IP Hybrid DVR System, PTZ Controller, Seagate, Smart H.264+, Two-Way Audio- Description
- Attachment
- Spiciifications
- Additional information
Description
The Eyemax TVST-AR324-16 is a high-performance 16-channel Pentabrid DVR system that offers advanced video recording and monitoring capabilities. AHD, HDCVI, HD-TVI, and CVBS are just a few of the video signal types that this DVR can handle. It has cutting edge technology that lets it work with up to two 4MP IP cameras. This makes it a versatile and highly adaptable solution for businesses and homes alike.
One of the standout features of the Eyemax TVST-AR324-16 is its ability to deliver exceptional image quality. The H.265+/H.265/H.264+/H.264 encoding used by this DVR system guarantees incredibly clear video at up to 3MP resolution. This is made even better by real-time 1080p lite recording, which enables fluid video viewing.
Along with its many safety features and ease of use, the Eyemax TVST-AR324-16 is a great video player and recorder. You can connect multiple monitors for live viewing with the simultaneous HDMI/VGA output, which supports up to 4K resolution.
As an extra safety measure, the Eyemax TVST-AR324-16 works with third-party cloud storage. This lets you back up your footage remotely and access it from anywhere. Video Content Analytics (VCA) events like line crossing, intrusion, and sudden scene change detection help find threats and strange behavior. Video Quality Diagnostics (VQD) ensures that your cameras are functioning properly and alerts you to any technical difficulties.
In terms of connectivity, the Eyemax TVST-AR324-16 offers a wide range of options. It supports long-distance transmission over UTP and coaxial cable, allowing for flexible installation. You can access the DVR from afar with GuardingVision and DDNS, and the 1 RJ45 10M/100M/1000M Ethernet interface makes sure the network connection is stable and safe. The configurable output bandwidth limit is a useful tool for managing bandwidth usage and optimizing network performance.
| Video compression | H.264 / H.264+ /H.265 / H.265+ |
| Analog, AHD, HD-TVI and HD-CVI video input | 16 Ch., BNC interface (1.0Vp-p, 75Ω) |
| HD-TVI Input | 3 MP, 1080p, 720p. Note: The 3 MP signal input is only available for channel 1/2/3/4 |
| AHD Input | 1080p, 720p |
| HDCVI Input | 1080p, 720p |
| CVBS Input | PAL/NTSC |
| IP Video Input | 2CH, Up to 4MP Resolution / 8CH. Up to 4MP Enhanced IP Mode / Supports H.265+ / H.265 / H.264+ / H.264 IP cameras. |
| Audio compression | G.711u |
| Audio input / Two-way audio in | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Video Output | 1 HDMI, 1 VGA, 1 CVBS |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | When 1080p Lite mode is not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame rate (Main stream) | • When 1080p Lite mode is not enabled For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)@30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)@30fps (N) • When 1080p Lite mode enabled 3 MP@15fps/1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)@30fps (N) |
| Frame rate (Sub-stream) | • When 1080p Lite mode is not enabled WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video bitrate | 32 Kbps to 6 Mbps |
| Audio output | 1 Ch., RCA (Linear, 1KΩ) |
| Audio bitrate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video & Audio |
| Synchronous playback | 16 Ch. |
| Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF |
| SATA | 2 SATA interface |
| VCA Functions | Face Detection, Line Crossing, Area Intrusion. Up to 2 Channels Max. |
| Capacity | Up to 12 TB capacity for each disk |
| Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Serial interface | 1 x RS-485 serial interface |
| USB port | 2 × USB2.0 (front), 1 x USB3.0 (rear) |
| Power supply | 12 VDC |
| Consumption (without hard disks) | ≤ 25W |
| Working temperature | 14 °F (-10 °C) ~ 131 °F (55 °C) |
| Working humidity | 10% ~ 90% |
| Dimensions | 15.0 inches (38.1 cm) × 12.6 inches (32 cm) × 1.9 inches (4.83 cm) |
| Weight (without hard disks) | 4.4 lb (2 kg) |
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 17 × 14 × 5 in |
| Hard Drive | No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 5 TB Hard Drive, 6 TB Hard Drive, 7 TB Hard Drive, 8 TB Hard Drive, 9 TB Hard Drive, 10 TB Hard Drive, 11 TB hard Drive, 12 TB Hard Drive, 13 TB Hard Drive, 14 TB Hard Drive, 16 TB Hard Drive, 18 TB Hard Drive, 20 TB Hard Drive |
