EVS7124S
Original price was: $12,045.99.$9,831.58Current price is: $9,831.58.
Dahua EVS7124S 24-bay Embedded Video Storage
- 64-bit High-performance multicore processor
- Max 512-ch IP camera inputs
- Max 1024 Mbps incoming/recording/forwarding bandwidth
- 24 HDDs, SAS/SATA, Hot-Swap
- Supports RAID 0/1/5/6/10/50/60, JBOD, Hot spare
- Supports video stream/ Picture direct storage mode and IP SAN storage mode
- Supports N + M cluster
- Supports Automatic Network Replenishment (ANR)
- SAS cascade for expanded storage space
- Modular and drawer-like design
- 1+1 redundant 80PLUS platinum power supply
SKU: EVS7124S
EAN: 6939554967481
Categories: 128 Channel Network Video Recorders NVRs, Network Video Recorders NVRs
Tags: 128 Channel NVR, Hot-Swap, IPSAN Direct Storage, ONVIF 2.4, RAID 0/1/5/10/50/60, Redundant Power, SAS/SATA- Description
- Attachment
- Specifications
- Additional information
Description
For medium- to high-end IP video surveillance applications, Dahua has developed the EVS7124S, a potent 24-bay embedded video storage device. Companies and groups needing a reliable and efficient storage solution should consider this device. Data storage is abundant, robust, expandable, and compatible with numerous surveillance systems.
One of the standout features of the Dahua EVS7124S is its high-capacity storage capability. It can hold up to 24 hard disk drives (HDDs), and it’s easy to replace them for maintenance or expansion. This means that users can store a large amount of video data without worrying about running out of space.
The device is also highly dependable and accessible due to its dual power supplies, interchangeable components, and fans. This solution is optimal for locations that necessitate monitoring on a 24-hour basis, seven days a week.
Compatibility is another key aspect of the Dahua EVS7124S. The fact that it supports ONVIF 2.4 means that it can connect to a lot of different surveillance systems. This allows users to integrate the storage device into their existing surveillance infrastructure without any hassle.
Powered by a 64-bit, high-performance multicore processor, the Dahua EVS7124S ensures smooth and efficient operation. Furthermore, it has two storage modes: Video Stream Direct Storage and IP SAN storage. This gives users choices about how to store and access their video data. Furthermore, the N + M Hot Standby feature ensures continuous recording by providing a backup system in case of a failure.
This feature automatically retrieves video footage from IP cameras to ensure that no footage is lost in the event of a network outage. It is also possible to incorporate external SAS (Serial Attached SCSI) storage enclosures into the EVS7124S to enhance its functionality in the following sectors: finance, hospitality, public safety, transit, government, and retail.
In conclusion, the Dahua EVS7124S is a top-notch video storage device that offers high-capacity, scalability, reliability, and compatibility. There is a lot of bandwidth on this storage device, so it can handle any medium to high-end IP video surveillance application.
| System | ||
| Main Processor | 64-bit High-performance Multi-core Processor | |
| Operating System | Embedded LINUX | |
| User Interface | Web-based | |
| Controller | Single Controller | |
| Memory | 8 GB by default (expandable to 64 GB) | |
| Redundant Power | 1+1 Redundant Power | |

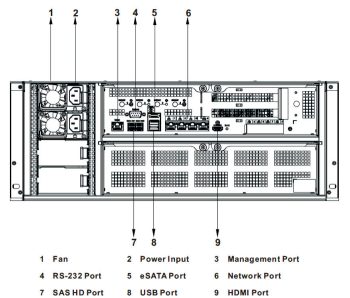

| Interface | ||
| Network | 1 × 1 GbE Management Port, 4 × 1 GbE LAN Ports | |
| Network Extension | 4 × 1 GbE LAN ports, 2 × 10 GbE Optical Fiber Ports | |
| SAS | Two (2) Mini-SAS HD Ports, maximum speed 12 Gb/s | |
| eSATA | One (1) | |
| RS232 | One (1) Port, for PC communication and keyboard | |
| HDMI | One (1) Output Port | |
| Storage | ||

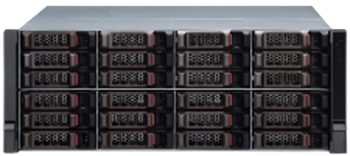

| Internal HDD | 24 Bays | |
| HDD | Capacity | 1 TB, 2 TB, 3 TB, 4 TB, 5 TB, 6 TB, 8 TB, 10 TB, 12 TB, |
| Compatibility | 14 TB, 16 TB | |
| Size | 2.5 in. and 3.5 in. HDD | |
| Support | Simultaneous Connection to SATA and SAS | |
| HDD Installation | Independent Rack | |
| RAID Type | • Single Disk, • RAID 0/1/5/6/10/50/60 • SRAID • JBOD • Hotspare | |
| Quick RAID Creation | Use RAID immediately after creation | |
| RAID Recreation | Dynamic adjustment of RAID recreation speed to ensure system load balance | |
| RAID Write Sync | RAID writing synchronization technology to ensure data security | |
| Storage Management | ||
| HDD Manager | Non-working HDD hibernation facilitates heat dissipation and reduced power consumption to extend HDD life | |
| Disposal | Supports Bad-track mapping to extend HDD life | |
| Status Detection | HDD inspection before and during use | |
| Playback and Backup | ||
| Record Mode | Schedule, Manual, Motion Detection, Alarm | |
| Record Playback | Web Video Playback, Slice Playback, Synchronous Playback, Record Search by Seconds, Playback Speed Adjustment | |
| Backup Mode | USB Flash Drive, Network Storage, eSATA Storage | |
| Camera Support | Encoding | Smart H.265+, H.265, Smart H.264+, H.264, MPEG4, MJPEG, SVAC |
| Lenses | Multi-sensor and Thermal | |
| Analytics | Face Detection, Human/Vehicle Detection, Behavior Analysis | |
| Direct Video Storage | ||
| Private Protocol | ||
| Access, Storage, Forwarding | 512 Channels, 1024 Mbps | |
| Network Playback | 32 Channels, 64 Mbps | |
| ONVIF Protocol | ||
| Access, Storage, Forwarding | 512 Channels, 1024 Mbps | |
| Network Playback | 32 Channels, 64 Mbps | |
| Auto-Register | ||
| Access, Storage, Forwarding | 300 Channels, 600 Mbps | |
| Network Playback | 32 Channels, 64 Mbps | |
| International Protocol | ||
| Access, Storage, Forwarding | 512 Channels, 1024 Mbps | |
| Network Playback | 32 Channels, 64 Mbps | |
| Network | ||
| Interface | One (1) Management Port, RJ-45 (10/100/1000 Mbps) Four (4) Data Ports, RJ-45 (10/100/1000 Mbps) | |
| IPSAN Mode | IPSAN Direct Storage | |
| IPSAN Function | Dynamic Online Extension of Logical Volumes | |
| Video Stream Mode | Direct Storage | |
| Network Mode | Fault-tolerance, Load balance, and other modes | |
| Network Protocol | RTP, RTCP, RTSP, UDP, HTTP; NTP, SNMP, iSCSI | |
| Interoperability | ONVIF, GB28181, and others | |
| N + M | Supported | |
| Automatic Network Replenishment | Supported | |
| Smartphone | IOS, Android | |
| Interoperability | ONVIF 2.4, CGI Conformant | |
| Electrical | ||
| Power Supply | 100 VAC to 240 VAC, 50/60 Hz, 5 A / 2.5 A Hot-swap support | |
| Power Consumption | < 500 W (with HDD) | |
| Fan | MTBF: > 100,100 hours, Hot-swap | |
| Environmental | ||
| Working Conditions | 32 °F (0 °C)to 113 °F (45 °C), 10% to 80% RH | |
| Storage Conditions | -4 °F (-20 °C) to 158 °F (70 °C), 5% to 90% RH | |
| Working Altitude | up to 5000.0 m (16,404.20 ft) | |
| Construction | ||
| Chassis | 1.20 mm extra-thick, hot-dip galvanized steel, Drawer-like removable HDD bracket | |

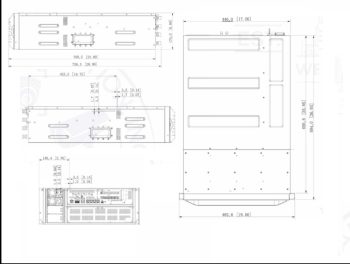

| Dimensions (W × D × H) | 4U, 19.0 inches (48.26 cm) x 19.45 inch (49.4 cm) x 6.89 inch (17.5 cm) | |
| Net Weight | 63.93 lb (29 kg), without HDD | |
| Gross Weight | 97.0 lb (44 kg) | |
| Installation | Standard 19-in. rack installation | |
| Certifications | ||
| CE | EN 55024, EN 55032, EN 55035, EN 50130-4, EN 61000-3-2, EN 61000-3-3, EN 62368 | |
| Electromagnetic Compatibility | CFR 47 FCC Part 15 Subpart B ANSI C63.4 | |
