DHI-N54B5N
Price range: $840.95 through $2,495.99
Dahua DHI-N54B5N 32-Channel 4K NVR High-Resolution Recording, Dual Ethernet, and Intelligent Video System
- Dual NIC Supports Multi-Address, Fault Tolerance, and Load Balance
- Smart H.265+ and Smart H.264+ Video Compression
- Maximum 320 Mbps Incoming Bandwidth
- Up to 12 MP Resolution for Preview and Playback
- Two (2) Gigabit Ethernet Connections
- Support for IPC and UPnP Protocols
- Customized Live View Layout with Support for Panoramic Displays
- Intelligent Video System with Business Analytics•
- Compatible with Dahua Smart Motion Detection Cameras
SKU: DN
Categories: 32 Channel Network Video Recorders NVRs, Network Video Recorders NVRs
Tags: 12 Megapixel, 32 Channel NVRs, 4 TB Hard Drive, Dahua Technology, HD 1080P- Description
- Attachment
- Speciifications
- Additional information
- Reviews (0)
Description
The Dahua DHI-N54B5N is the ultimate solution for high-resolution and detailed surveillance needs. Designed with advanced technology, this 32-channel 4K network video recorder (NVR) is perfect for demanding IP video security applications. With the ability to support up to 32 IP cameras, this NVR is ideal for large-scale surveillance systems.
This NVR boasts excellent recording quality with a maximum recording resolution of 12MP (4K). This means that all captured footage will be in crisp and clear detail, allowing you to monitor your surroundings with precision. The incoming bandwidth of 320 Mbps further ensures smooth and uninterrupted recording. This is true even during times of high activity.
In addition to its impressive recording capabilities, the Dahua DHI-N54B5N also utilizes multiple compression codecs. These include Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG. These codecs are designed to optimize storage and bandwidth usage. Thus, you can store more footage without sacrificing quality.
This NVR is equipped with dual Gigabit Ethernet connections, providing multi-address support, fault tolerance, and load balancing. This ensures a stable and reliable network connection at all times, even in high-traffic environments. Additionally, with 4 SATA III ports, each supporting up to 10 TB, this NVR has a maximum internal storage capacity of 40TB. Thus, there is ample space for all your recorded footage.
The Dahua DHI-N54B5N also offers convenient connectivity options with two HDMI and two VGA simultaneous video outputs. This allows you to connect external monitors and view live footage in real-time. Therefore, monitoring your surroundings from multiple locations is easy. Moreover, its Intelligent Video System (IVS) features include motion detection, object detection, facial recognition, and business analytics. These make it even more efficient and effective for your surveillance needs.
With remote management and control capabilities, this NVR allows you to access and manage your surveillance system from anywhere, anytime. Its ONVIF 2.4 compatibility also ensures interoperability with various IP cameras. This provides you with the flexibility to use your preferred cameras.
With a maximum power consumption of only 16.7 W, the Dahua DHI-N54B5N is an energy-efficient option for your surveillance needs. It is a reliable and versatile NVR that offers high-quality recording, advanced features, and convenient management options. This makes it the perfect choice for any demanding IP video security application.
| System | ||
| Main Processor | Embedded Quad-Core Processor | |
| Operating System | Embedded Linux | |
| Audio and Video | ||
| IP Camera Input | 32 Channels | |
| Two-Way Talk | Input: One (1) Channel, RCA Output: Two (2) Channels, RCA | |
| Display | ||
| Interface | Two (2) HDMI Ports: • HDMI-1: 4K • HDMI-2: 1080p Two (2) VGA Ports (1080p) | |
| Native Output Resolution | HDMI-1 | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 |
| VGA-1 | 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 | |
| HDMI-2 / VGA-2 | 1920 × 1080 | |
| Maximum Decoding | Two (2) Channels of 12MP at 20 fps Four (4) Channels of 8MP at 30 fps Five (5) Channels of 6MP at 30 fps Six (6) Channels of 5MP at 30 fps Eight (8) Channels of 4MP at 30 fps Eleven (11) Channels of 3MP at 30 fps Sixteen (16) Channels of 1080p at 60 fps Sixteen (16) Channels of 1080p/720p at 30 fps | |
| Fisheye Dewarping | Dewarps a single channel at a time | |
| Multi-screen Display | First Screen: 1/4/8/9/16/25/36 Second Screen: 1/4/8/9/16 | |
| On-Screen Display | Camera Title, Time, Camera Lock, Motion Detection, Recording | |
| Recording | ||
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG | |
| Supported IP Camera Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p, D1, CIF | |
| Maximum Incoming Bandwidth | 320 Mbps | |
| Bit Rate | 16 Kbps to 20 Mbps per channel | |
| Record Mode | Manual, Schedule (Regular, Motion Detection), Alarm, IVS, Stop | |
| Record Interval | 1 to 120 minutes (default: 60 minutes) Pre-record: 1 to 30 s Post-record: 10 to 300 s | |
| Video Detection and Alarm | ||
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer, and Screen Tips | |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering | |
| Alarm Input | 16 Channels | |
| Relay Output | Six (6) Channels, | |
| Playback and Backup | ||
| Sync Playback | 1/4/9/16 | |
| NVR Video Output | Four (4) Channels at 4K or 16 Channels at 1080p | |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to one second) | |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen,Backup Selection, Digital Zoom | |
| Backup Mode | USB Device, Network, eSATA Device | |
| Camera Support | ||
| Thermal Cameras | 16 Channels | |
| Analytics+ Cameras | ||
| Face Detection | Four (4) Channels | |
| Perimeter Protection | 16 Channels | |
| Metadata | 10 Channels | |
| Smart Motion Detection¹ | Any channel connected to a Dahua Network camera with Smart Motion Detection | |
| Intelligence | ||
| IVS triggers an alarm and takes a defined action for the following events: | ||
| Standard Features | • Tampering with the camera. • Camera loses or changes focus drastically. • Error writing to an onboard Micro SD card. • Error sending or receiving data over the network. • Unauthorized access to the camera. | |
| Premium Features | ||
| Motion | An object moves through any part of the scene. | |
| Tripwire | A target crosses a user-defined line. | |
| Intrusion | A target enters or exits a defined perimeter. | |
| Scene Change | A person or object moves the camera to change the scene or covers the camera to obscure the scene. | |
| Abandoned/Missing Object | A target leaves an object in a designated area, or a target removes an object from the same designated area. | |
| Advanced Features | ||
| Facial Detection | Detects and captures a snapshot of a human face in a defined area within a scene. | |
| Face Detection+ | Any channel to a Dahua Network camera with Face Detection+ . | |
| People Counting | Measure the number of customers, visitors or passengers in a scene. | |
| Heat Map | Generates a visual representation of data. | |
| Third-party Support | ||
| Third-party Support | Arecont Vision, Airside, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and others | |
| Network | ||
| Ethernet | Two (2) RJ-45 Ports (10/100/1000 Mbps), Independent or Joint | |
| Forwarding Bandwidth | 320 Mbps | |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support for Dahua IP cameras, DVRs, NVS) | |
| Maximum User Access | 128 Users | |
| Mobile Operating System | IOS, Android | |
| Interoperability | ONVIF 2.4, SDK, CGI | |
| Storage | ||
| Internal HDD | Four (4) SATA III Ports, Up to 10 TB capacity for each HDD | |
| eSATA | One (1) Port | |
| Auxiliary Interface | ||
| USB | Two (2) USB 3.0 Ports, rear panel One (1) USB 2.0 Port, front panel | |
| RS232 | One (1) Port for PC Communication and Keyboard | |
| RS485 | One (1) Connection for PTZ Control | |
| Electrical | ||
| Power Supply | Single, 100 VAC to 240 VAC, 50/60 Hz | |
| Power Consumption | < 16.7 W, without HDD | |
| Smart Fan | NVR Automatically adjusts fan running speed | |
| Environmental | ||
| Operating Conditions | 14 °F (-10 °C) to 131 °F (55 °C), 86 to 106 kPa | |
| Storage Conditions | -4 °F (20 °C) to 158 °F (70 °C), 0 to 90% RH | |
| Construction | ||

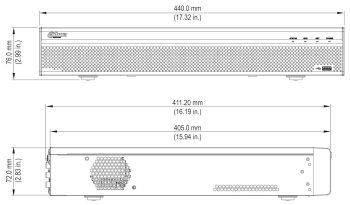

| Dimensions | 17.32 inches (43.99 cm) x 16.19 inches (41.12 cm) x 2.99 inches (7.59 cm) | |
| Net Weight | 9.50 lb (4.31 kg), without HDD | |
| Gross Weight | 15.40 lb (ca. 7 kg), without HDD | |
| Installation | Rack-mount | |
| Certifications | ||
| CE | EN55022, EN55024, EN50130-4, EN60950-1 | |
| Safety | UL 60950-1 | |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 Subpart B ANSI C63.4-2014 | |
1. The recorder SMD functions are available only when connected to a Dahua network camera with SMD functionality. Pair a Smart Motion Detection
camera with a Dahua recording device that also offers SMD functionality to take advantage of SMD alarm filtering and object classification when
searching and playing back recorded video.
