-39%
C865E124A
Original price was: $1,613.99.$987.95Current price is: $987.95.

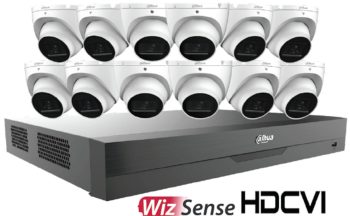

Dahua C865E124A HDCVI Security System, 13-Piece, Includes (12) A51BJ02 Turret Cameras (1)X82B3A4 4K 16-Channel Analytics+ DVR
The A51BJ02 camera features a 5MP HDCVI sensor.
- This sensor features a 1/2.7-in. 5 MP progressive-scan CMOS sensor.
- The camera features a maximum resolution of 5 MP at 25 frames per second, with a fixed lens of 2.8 mm.
- The aspect ratio is 16:9 for no image stretch.
- The maximum IR length is 30 m (98.43 feet), Smart IR.
- IP67 protection against water intrusion.
The X82B3A4 is a 16-channel HDCVI Digital Video Recorder equipped with Analytics+ and a 4 terabyte hard drive.
- A hard drive with 4 TB of storage already installed.
- The processor is embedded.
- There are 16 channels of HDCVI DVR with analytics+
- The system provides support for a total of 16 HD Coaxial Channels and up to 8 MP IP Channels.
- The Smart H.265+ and Smart H.264+ dual codecs are available.
- 8MP at 7 fps Maximum Record Rate
- Automatically Detects HDCVI, AHD, TVI, and CVBS Inputs
- 128 Mbps Incoming Bandwidth
SKU: C865E124A
UPC: 810053971079
Categories: 16 Channel DVR Coaxial HD Recorders, 5 MegaPixel HD Coaxial Cameras, Analog Coaxial, Analog Coaxial Cameras, HD Coaxial Cameras, HD Coaxial DVR Recorders, Surveillance Bundle
Tags: 1/2.7-in. Progressive-scan 5 MP CMOS Sensor, 2.8 MM Fixed Lens, Analytics+, ArcticPro Series, CVBS, Dahua Technology, Disconnected, Dome Camera Dahua Technology, EX-SDI, HD-AHD, HD-TVI, HDCVI Penta-Brid, Home Security, IP67 Ingress Protection, Network Cameras, Perimeter Protection, Security Cameras, Smart H.265+ and Smart H.264+ Dual Codec, Smart Motion Detection (SMD), WizSense- Description
- Attachment
- Specifications
- Additional information
Description
This Dahua Technology C865E124A 16-Channel 4K with UHD X82B3A4 Pentabrid HDCVI XVR and 4 TB HDD is a formidable security solution for any household or enterprise. The 12 A51BJ02 5MP outdoor night vision turret cameras in this system provide superior surveillance coverage. This system can record and play back obvious videos because it has 4K resolution. This way, you can get the best view of any area you are watching.
The Dahua Technology C865E124A 16-Channel 4K monitor is equipped with a Pentabrid HDCVI XVR and four-TB HDD. This helps you keep more videos in your computer without worrying about not having enough space. Furthermore, it supports four types of cameras, HDCVI, Analog, AHD, and IP, so you can choose the best type of security camera for your needs.
The Dahua Technology C865E124A has 12 A51BJ02 5MP outdoor night vision turret cameras. The lenses on these cameras are 2.8 mm, giving you a wide field of view and night vision. They also possess an infrared radiance of up to 80 meters (262.47 feet). This makes them good for checking big areas or places that are difficult to find in the dark.
Dahua Technology C865E124A 16-Channel 4K has an easy-to-use user interface. This enables you to take advantage of all the system’s capabilities quickly and efficiently. You can also use the Dahua mobile app to access the system from far away. This ensures that you can monitor your property from any location.
The Dahua Technology C865E124A 16-channel 4K can connect to most home automation systems. This makes it easy to manage your surveillance cameras from your mobile device. Security systems can incorporate alarms, lights, and other accessories into the security system.
| Technical Specification | |||
| A51BJ02 5MP HDCVI Eyeball Camera | |||
| Camera | |||
| Image Sensor | 1/2.7-in. CMOS Sensor. | ||
| Effective Pixels | 2880 (H) x 1620 (V), 5 MP | ||
| Aspect Ratio¹ | 16:9 | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | 1/30 s to 1/100,000 s | ||
| Minimum Illumination | Color: 0.01 lux at F1.6, 30 IRE 0 lux with IR on | ||
| S/N Ratio | More than 65 dB | ||
| IR Distance | Up to 30.0 m (98.43 ft) | ||
| IR On/Off Control | Auto, Manual | ||
| IR LEDs | One (1) | ||
| Lens | |||
| Lens Type | Fixed-focal | ||
| Mount Type | M12 | ||
| Focal Length | 2.8 mm | ||
| Maximum Aperture | F1.6 | ||
| Angle of View | Horizontal: 111° Vertical: 58° Diagonal: 132° | ||
| Close Focus Distance | 900.0 mm (35.43 in.) | ||
| Installation Angle | |||
| Range | Pan: 0° to 360° Tilt: 0° to 78° Rotation: 0° to 360° | ||
| DORI Distances² | |||
| Detect (8 ppf) | Observe (19 ppf) | Recognize (38 ppf) | Identify (76 ppf) |
| 208.70 ft (63.61 m) | 83.30 ft (25.39 m) | 41.70 ft (12.71 m) | 21.0 ft (6.4 m) |
| Video | |||
| Resolution | 5 MP (2880 × 1620), 4 MP (2560 × 1440), 1080p (1920 × 1080), 960H (960 × 480) | ||
| Maximum Frame Rate | HDCVI | 5 MP at 25 fps, 4 MP at 30 fps, 1080p at 30 fps | |
| AHD | 4 MP at 30 fps | ||
| TVI | 4 MP at 30 fps | ||
| CVBS | 960H | ||
| Video Output | One (1) BNC Output, HDCVI, AHD, TVI, CVBS switchable | ||
| Video Transmission³ | RG-59/U Coax | 720p: 2624.67 ft (800 m) 1080p: 1640.42 ft (500 m) 5 MP: 1640.42 ft (500 m) | |
| RG-6/U Coax | 720p: 3937.01 ft (1,200 m) 1080p: 2624.67 ft (800 m) 5 MP: 2296.59 ft (700 m) | ||
| CAT 6 UTP (balun required) | 720p: 1476.38 ft (450 m) 1080p: 984.25 ft (300 m) 5 MP: 984.25 ft (300 m) | ||
| Day/Night | Auto (ICR) | ||
| OSD Menu | Multi-language | ||
| BLC Mode | BLC, HLC, DWDR | ||
| WDR | Digital WDR | ||
| Gain Control | Auto, Manual | ||
| Noise Reduction | 2D NR | ||
| White Balance | Auto, Manual | ||
| Smart IR | Auto, Manual | ||
| Certifications | |||
| Safety | UL60950-1 CAN/CSA C22.2 No.60950-1 | ||
| FCC CFR 47 Part 15 subpart B, | |||
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 Subpart B EN 61000-3-2 EN 61000-3-3 EN 55032 EN 50130 EN 55024 | ||
| Electrical | |||
| Power Supply | 12 VDC ± 30% | ||
| Power Consumption | Maximum 3.2 W (12 VDC, IR on) | ||
| Operating Conditions | –40° C to +60° C (–40° F to +140° F) Less than 95% RH | ||
| Storage Conditions | –40° C to +60° C (–40° F to +140° F) Less than 95% RH | ||
| Ingress Protection | IP67 | ||
| Casing | Metal | ||
| Dimensions | ø94.0 mm x 85.60 mm (ø3.70 in. × 3.37 in.) | ||
| Net Weight | 0.31 kg (0.68 lb) | ||
| Gross Weight | 0.44 kg (0.97 lb) | ||
| Environmental | |||
| Construction | |||
| X82B3A4 16-channel HDCVI DVR with Analytics+ | |||
| System | |||
| Main Processor | Embedded Processor | ||
| Operating System | Embedded LINUX | ||
| Analytics+ Perimeter Protection⁴, | |||
| Performance | • Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on two (2) channels, or configure function on one (1) channel to use eight (8) channels for SMD • 10 Tripwire/Intrusion rules per channel | ||
| Live View | • Configure Rule and Object Inspection area • Display object classification, event types, trigger time, image snapshot, and object types • Export event playback 10 seconds prior to or after event | ||
| Playback | • Search by channel, time, event type, and target type • Search event playback 10 seconds prior to or after event • Snapshot capacity: 500,000 | ||
| Analytics+ Smart Motion Detection⁴, ⁵ | |||
| Performance | • Detect motion based on object classification (human or vehicle) • Decreased false alarms from leaves, lights, animals • Configure functions on 16 channels, or configure functions on 8 channels to use one (1) channel of Perimeter Protection | ||
| Preview | • Configure and inspect detection area | ||
| Playback | • Search by channel, time, event type, and target type • Search event playback 10 seconds before or after event | ||

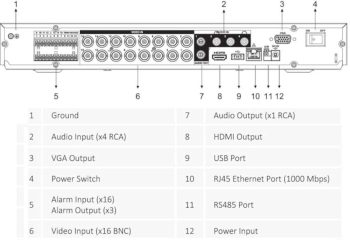

| Interface | |||
| Analog Camera Input | 16 Channels, BNC | ||
| HDCVI | 8 MP, 6 MP, 5 MP, 4 MP, 1080p at 30 fps, 720p at 60 fps, 720p at 30 fps | ||
| AHD | 5 MP, 4 MP, 3 MP, 1080p at 30 fps, 720p at 30 fps | ||
| TVI | 5 MP, 4 MP, 3 MP, 1080p at 30 fps, 720p at 30 fps | ||
| CVBS | NTSC | ||
| IP Camera Input | 16+16 Channels, each channel up to 8 MP | ||
| Audio | Input: Four (4) Channels, RCA Output: One (1) Channel, RCA | ||
| Two-way Talk | Audio Input Channel 1 In/ Audio Output, RCA | ||
| Recording | |||
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 | ||
| Recording Resolution | 8 MP, 6 MP, 5 MP, 4 K-N, 4 MP, 3 MP, 4 M-N, 1080p, 720p, 960H, D1, CIF | ||
| Record Rate | Main Stream | 8 MP at 7 fps, 6 MP at 10 fps, 5 MP at 12 fps, 4 K-N, 4 MP or 3 MP at 15 fps, 4 M-N, 1080p, 720p, 960H, D1, or CIF at 30 fps | |
| Sub Stream | 960H at 15 fps; D1, CIF, or QCIF at 30 fps | ||
| Max. Incoming Bandwidth | 128 Mbps | ||
| Bit Rate | 32 Kbps to 6144 Kbps per Channel | ||
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop | ||
| Record Interval | 1 to 60 minutes (default: 60 minutes), Pre-record: 1 to 30 s, Post-record: 10 to 300 s | ||
| Audio Compression | G.711a, G.711Mu, PCM | ||
| Audio Sample Rate | 8 kHz, 16 bits per Channel | ||
| Audio Bit Rate | 64 Kbps per Channel | ||
| Electrical | |||
| Power Supply | 12 VDC, 5 A | ||
| Power Consumption | < 15 W, without HDD | ||
| Construction | |||

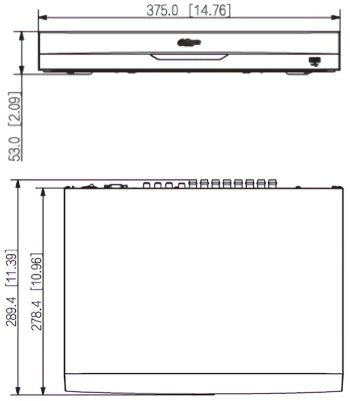

| Dimensions | |||
| HDCVI DVR | 1U, 375.0 mm x 278.40 mm x 53.0 mm (14.76 in. × 10.96 in. × 2.09 in.) | ||
| with PFH101 Rack Mount Tray | 482.6 mm x 287.15 mm x 53.0 mm (19.0 in. × 11.31 in. × 2.09 in.) | ||
| Net Weight | 4.20 lb (1.91 kg) | ||
| Gross Weight | 7.05 lb (3.2 kg) | ||
| Installation | Desktop or Rack-mount | ||
| Video Transmission Distance | |||
| RG-59/U Coax | 720p: 2624.67 ft (800 m) 1080p: 1640.42 ft (500 m) 4K/4MP: 1640.42 ft (500 m) | ||
| RG-6/U Coax | 720p: 3937.01 ft (1,200 m) 1080p: 2624.67 ft (800 m) 4K/4MP: 2296.59 ft (700 m) | ||
| CAT 6 UTP (balun required) | 720p: 1476.38 ft (450 m) 1080p: 984.25 ft (300 m) 4K/4MP: 984.25 ft (300 m) | ||
| Environmental | |||
| Operating Conditions | 14 °F (-10 °C) to 131 °F (55 °C), 10% to 90% RH | ||
| Storage Conditions | -4 °F (-20 °C) to 158 °F (70 °C), 0% to 90% RH | ||
| Third-party Support | |||
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others | ||
| Certifications | |||
| Safety | UL 62368-1 EN 60950-1 IEC 60950-1 | ||
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 Subpart B EN 61000-3-2 EN 61000-3-3 EN 55032 EN 50130 EN 55024 | ||
| Display | |||
| Interface | One (1) HDMI (3840 × 2160) One (1) VGA (1920 × 1080) | ||
| Spot Output | HDMI or VGA, configurable, 1920 × 1080 max resolution | ||
| Native Output Resolution | HDMI | 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| VGA | 1920 × 1080, 1280 × 1024, 1280 × 720 | ||
| Maximum Playback Decoding | Eight (8) Channels of 4K at 7 fps Eight (8) Channels of 6 MP at 10 fps Eight (8) Channels of 5 MP at 12 fps Eight (8) Channels of 4 M-N, 1080p, 720p, 960H at 30 fps 16 Channels of 4 MP, 3 MP at 7 fps 16 Channels of 4 M-N, 1080p at 15 fps 16 Channels of 720p, 960H at 30 fps | ||
| Multiscreen Display | IP extension mode disabled: 1/4/8/9/16 IP extension mode enabled: 1/4/8/9/16/25/36 | ||
| Fisheye Dewarp | Supported via Web Interface | ||
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording | ||
| Network | |||
| Interface | One (1) RJ45 (1000 Mbps) Port | ||
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS) | ||
| Max. User Access. | 128 Users | ||
| Mobile Operating System | IOS, Android | ||
| Interoperability | ONVIF 16.12, CGI Conformant | ||
| Video Detection and Alarm | |||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips | ||
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering, and Diagnosis | ||
| Alarm Input | 16 Channels | ||
| Relay Output | Three (3) Channels | ||
| Playback and Backup | |||
| Playback | 1/4/9/16 | ||
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to 1 second) | ||
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom | ||
| Backup Mode | USB Device/Network | ||
| Storage | |||
| Internal HDD | Two (2) SATA Ports, up to 10 TB capacity for each disk Kit ships with a 4 TB Hard Disk Drive | ||
| Auxiliary Interface | |||
| USB | One (1) USB 2.0 Port and One (1) USB 3.0 Port | ||
| RS485 | One (1) Port for PTZ Control | ||
| 1. To view the 16:9 video output on a Dahua HDCVI DVR you must update the DVR to the latest firmware. Obtain the latest firmware on the Dahua Wiki at https://dahuawiki.com/Recorders. 2. The DORI distance is a measure of general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 3. Transmission distance results verified by real scene testing in Dahua’s test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures. 4. The Analytics+ functions are disabled when the additional IP channels are active. 5. The DVR is capable of processing two (2) channels of Perimeter Protection, one (1) channel of Perimeter Protection and eight (8) channels of SMD, or 16 channels of SMD at one time. | |||
Additional information
| Weight | 24.47 lbs |
|---|---|
| Dimensions | 21.8 × 11.9 × 17.2 in |
