D21DKH
Price range: $4,089.95 through $8,159.95

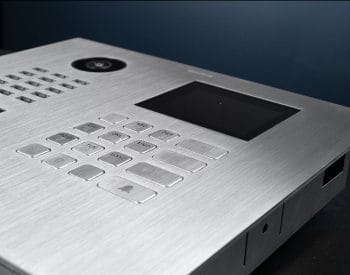

DoorBird IP Intercom Video Door Station D21DKH, Brushed Stainless-Steel Edition
- Weatherproof IP Intercom video door station.
- Made of brushed stainless-steel, designed for both indoor and outdoor use.
- Connects with smartphones for easy access control.
- Flush Mount.
- Wall mountable with flush mounting plate and screws.
- Comes with full instructions, and mounting tools for a quick and easy installation.
- Display Module.
- Built-in 7-inch LCD color display.
- HD video call, two-way audio, and live view.
- Motion detection and night vision for added security.
- Keypad Module.
- Easily programmable keypad with directory and RFID access.
- Touchscreen operation for user-friendly access.
- Stores up to 50 user codes for secure entry.
- RFID.
- Supports 125kHz RFID for added access control.
- Tags are sold separately and can be programmed for hundreds of possible access combinations.
- Durable card reader with integrated LED display for easy operation
SKU: N/A
Categories: Access Control, Door Access, Home And Office Automation
Tags: Access Control, display module, DoorBird, flush mount, ip intercom, Keypad Module, RFID, Security, Video Door Station- Description
- Attachment
- Spiciifications
- Additional information
Description
You can make any home or business safer with the DoorBird IP Intercom Video Door Station D21DKH, Brushed Stainless-Steel Edition. This product is a comprehensive solution that comprises a display module, keypad module, and RFID reader. This comprehensive system enables you to remotely unlock the door, monitor guests, take photographs or videos, and answer the doorbell.
From home or the office, the D21DKH DoorBird IP Intercom Video Door Station’s display module lets you see visitors clearly. With a resolution of 1778 cm, the 7-inch color touchscreen facilitates communication with the individual at the door. You can also store up to 10,000 images of people who have visited your home or business.
The keypad module of the D21DKH DoorBird IP Intercom Video Door Station comes with a backlit keypad for added security. Without manually operating the door, this module enables you to enter a distinct PIN code to unlock any entrance. PIN codes are changeable at any time to increase security.
You can set the keypad to play a chime when someone rings the doorbell. This makes it easier to tell when someone is at the door.
Because it has RFID, some users can access the D21DKH DoorBird IP Intercom Video Door Station without entering a PIN. If you give trusted individuals a keychain tag or RFID card, they can access your property without forgetting a PIN. This feature is perfect for granting access to friends, family, and service providers.
The DoorBird IP Intercom Video Door Station D21DKH is also compatible with home automation systems. So, you can connect it to other home automation systems to make your home or business safer. You can also connect the DoorBird to other alarm systems to monitor and control your property while you’re away.
Anyone who wants to make their home or business safer should get the DD21DKH Doorbird IP Intercom Video Door Station. It is the best modern security system because it has numerous features and works with home automation systems.
| GENERAL | |
| Front panel | 0.12 inches (3.05 mm) Available in numerous Finnish |
| Mounting housing (backbox) | Stainless steel |

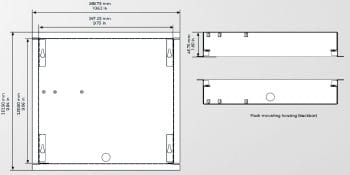

| Mounting type | Flush-mounted, surface-mounting housing sold separately |
| Power supply | 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |

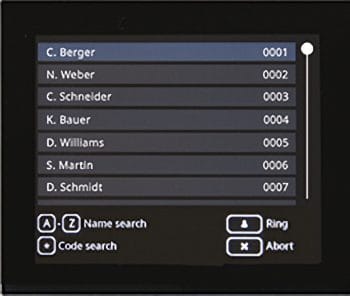

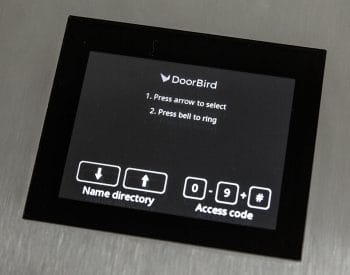

| Display Module | 3.5“ LCD (no touch function), illuminated, for the display of a 2-line free text and the name directory (max. 100 entries) |

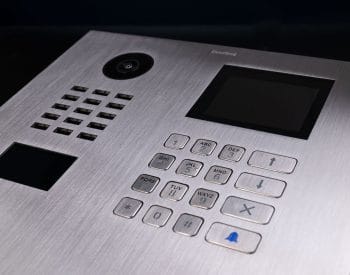

| Keypad Module | 16 keys, illuminated, configurable via App, e.g. • Individual PIN codes • Individual events (e.g. switch a relay, push notification, SIP call, HTTP(s) request) • Individual schedules • Up to 100 PIN codes manageable |
| Weight | 6.71 lbs |
| Connectors | • RJ45, for LAN/PoE • Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • External input for external door opener button • 15 V DC input (+, -), max. 15 W • Relays can be expanded / detached with the DoorBird I/O Door Controller. |
| Weather-proof | Yes, IP65 |
| Approvals | IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471 |

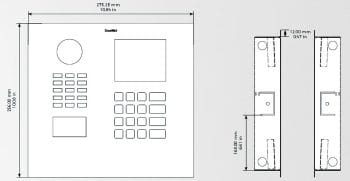

| Dimensions (H × W × D) | 10.08 inches (25.6 cm) × 10.13 inches (25.73 cm) x 1.92 inches (4.88 cm) |
| Operating conditions | -13 °F (-25 °C) to 131 °F (55 °C) Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x Flush-mounting housing (backbox) 1x Power supply unit (mains adaptor) with four country-specific outlet adaptors (110 – 240 V AC to 15 V DC) 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
| CURRENT SYSTEM REQUIREMENTS | |
| System requirements | Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server Network: Ethernet Network, with DHCP |
| Recommended installation height | Camera lens should be at a minimum height of 57 inches (1.45 m). Before the installation please determine your optimal installation height. |
| VIDEO | |
| Camera | HDTV 720p, dynamic (VGA – HDTV) |
| Lens | High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable |
| Night-vision | Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm) |
| AUDIO | |
| Audio components | Speaker and microphone, noise reduction and echo cancellation (ANR, AEC) |
| Audio streaming | Two-way, full duplex |
| NETWORK | |
| Ethernet | RJ45 jack, PoE 802.3af Mode-A, 10/100 Base-T |
| MOTION SENSOR | |
| Type | Active |
| Detection angle | 54° (H), 70° (V) |
| Range | Since a “Display Module“ is connected to the Main electrical unit, the range is limited to3 ft .28 ft (8.53 m). |
| Technology | 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE) |
| RFID | |
| Type | Active Reader Passive Tag (ARPT) system |
| Standard | ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102 |
| Frequency | 125 KHz |
| Range | 0 – 3 cm, depends on environment |
| Antenna | Internal |
| Compatible Transponder | RFID key fobs, sold separately, Up to 100 tags are manageable. |
| Configuration | Via App, e.g. • Tag (add, delete) • Individual events (e.g. switch a relay,IP call, HTTP(s) notification) • Individual schedules • RFID history available for 60 minutes in the app |
| INTEGRATED WIRELESS MODULES | |
| RFID | 125 KHz |
| Sensor | 24 GHz, can be disabled |
| Third-party integration (Doorbird Connect) | |
| Simultaneous video streams | One, for event-based and continuous recording |
Additional information
| Weight | 12 lbs |
|---|---|
| Dimensions | 15 × 15 × 5 in |
| Finish | Architectural Bronze, Brushed Bronze-Finish as PVD Coating, Stainless Steel, Brushed Gold-Finish as PVD Coating, Stainless Steel, Brushed Stainless Steel V2A., Brushed Stainless steel V4A (salt-water and grinding dust resistant)., Brushed Titanium-Finish as PVD Coating, Stainless Steel, Graphite Black (Raven Polar) Semi-Gloss, Powder-Coated,, High Gloss Polished Titanium V4A Finish as PVD Coating Stainless Steel., Polished Chrome High Gloss Finish as PVD Coating Stainless Steel V4A., RAL 1001 is a Beige. Stainless Steel, Powder Coated, Semi Gloss., RAL 1003, Signal Yellow Semi Gloss Stainless Steel, Powder Coated., RAL 1004, Golden Yellow Semi Gloss Stainless Steel, Powder Coated., RAL 1016, Sulfur Yellow Semi Gloss Stainless Steel, Powder Coated, RAL 1017, Saffron Yellow Semi Gloss Stainless Steel, Powder Coated,, RAL 1037, Sun Yellow Semi Gloss Stainless Steel, Powder Coated., RAL 2002, Vermilion Semi-Gloss Stainless Steel, Powder-Coated, RAL 2004, Pure Orange Semi Gloss Stainless Steel, Powder Coated., RAL 3000, Flame Red Semi Gloss Stainless Steel, Powder Coated., RAL 3007, Black Red Semi Gloss Stainless Steel, Powder Coated., RAL 3014, Antique Pink Semi Gloss Stainless Steel, Powder Coated., RAL 3028, Pure Red Semi Gloss Stainless Steel, Powder Coated., RAL 4004, Claret Violet Semi Gloss Stainless Steel, Powder Coated., RAL 4005, Blue Lilac Semi Gloss Stainless Steel, Powder Coated., RAL 4006, Traffic Purple Semi Gloss Stainless Steel, Powder Coated., RAL 4009, Pastel Violet Semi Gloss Stainless Steel, Powder Coated., RAL 5002, Ultramarine Blue Semi Gloss Stainless Steel, Powder Coated., RAL 5004, Black Blue Semi Gloss Stainless Steel, Powder Coated., RAL 5012, Light Blue Semi Gloss, Stainless Steel, Powder Coated., RAL 5013, Cobalt Blue Semi Gloss, Stainless Steel, Powder Coated., RAL 5018, Turquoise Blue Semi Gloss, Stainless Steel, Powder Coated., RAL 5022, Night Blue Semi Gloss, Stainless Steel, Powder Coated., RAL 6000, Patina Green Semi Gloss, Stainless Steel, Powder Coated., RAL 6006, Grey Olive Semi Gloss, Stainless Steel, Powder Coated., RAL 6018, Yellow Green Semi Gloss, Stainless Steel, Powder Coated., RAL 6019, Pastel Green Semi Gloss, Stainless Steel, Powder Coated., RAL 6027, Light Green Semi Gloss, Stainless Steel, Powder Coated., RAL 7001, Silver Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7004, Signal Grey Semi Gloss Stainless Steel, Powder Coated., RAL 7006, Beige Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7011, Iron Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7015, Slate Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7016, Anthracite Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7023, Concrete Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7033, Cement Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 7044, Silk Grey Semi Gloss, Stainless Steel, Powder Coated., RAL 8004, Copper Brown Semi Gloss, Stainless Steel, Powder Coated., RAL 8011, Nut Brown Semi Gloss, Stainless Steel, Powder Coated., RAL 8016, Mahogany Brown Semi Gloss, Stainless Steel, Powder Coated., RAL 8023, Orange Brown Semi Gloss, Stainless Steel, Powder Coated., RAL 8028, Terra Brown Semi Gloss, Stainless Steel, Powder Coated., RAL 9002, Grey White Semi Gloss, Stainless Steel, Powder Coated., RAL 9006, White Aluminum Semi Gloss, Stainless Steel, Powder Coated., RAL 9007, Grey Aluminum Semi Gloss, Stainless Steel, Powder Coated, RAL 9010, Pure White Semi Gloss, Stainless Steel, Powder Coated., RAL 9016, Traffic White Semi Gloss, Stainless Steel, Powder Coated., Real Burnished Brass, Real Polished Brass |
