TVST-AR334-16A

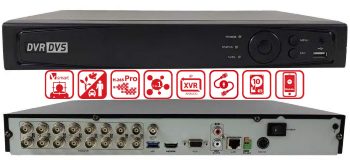

Eyemax TVST-AR334-16A, a 16-channel DVR that supports HD-TVI, AHD, CVI, CVBS, and IP cameras. With advanced features like deep learning-based motion detection and perimeter protection, this DVR ensures accurate and reliable monitoring. Plus, with support for up to 24 IP camera inputs and 3rd-party cloud storage, you can easily expand your system as needed. Experience crystal clear playback and control with HDMI/VGA output and RS-485 for PTZ. Up to 20 terabytes of storage.

Eyemax_TVST-AR334-16A_16-Channel_DVR_High-Definition_Recording_and_Advanced_Motion_Detection_

0 out of 5

Price range: $219.95 through $734.95

Eyemax TVST-AR334-16A 16-Channel DVR High-Definition Recording and Advanced Motion Detection.

Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
HD-TVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 6 MP)
Up to 10 TB capacity per HDD

SKU: TVST-AR334-16A Categories: 16 Channel DVR Coaxial HD Recorders, HD Coaxial DVR Recorders Tags: 16 Channel NVR, H.265+, HD 1080P, HDCVI/AHD/TVI/CVBS IP Camera Auto-detect, IP Hybrid DVR System, PTZ Controller, Seagate, Smart H.264+, Two-Way Audio

Hard Drive

Description

Eyemax’s TVST-AR334-16A is a cutting-edge digital video recorder (DVR) made for business surveillance systems. There are 16 channels on this DVR, so it can connect to 16 cameras. This makes it ideal for bigger, more complicated security systems. Watch over a big store, a warehouse, or a business building—the TVST-AR334-16A can do it all.

The Quadbrid technology in the DVR is one of its best features. It lets you connect multiple cameras, such as HD-TVI, AHD, CVI, CVBS (analog), and IP cameras. You can switch between newer IP cameras and older analog cameras with the TVST-AR334-16A. It is easy to use and flexible, which improves your security system.

The TVST-AR334-16A also sets itself apart with its advanced H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression standards. This ensures high-quality, efficient, and reliable video recording, saving you valuable storage space without compromising on image quality. To classify human and vehicle movements, the DVR also has deep learning-based motion detection 2.0 for all analog channels. This feature reduces false alarms and ensures more accurate and effective surveillance.

For additional security, the TVST-AR334-16A also comes with deep learning-based perimeter protection. This feature uses advanced technology to find and follow objects in a certain area, making surveillance more focused and accurate. This DVR is compatible with any camera because it has up to 24 IP camera inputs (up to 6 MP).

With its two SATA interfaces, the TVST-AR334-16A has a maximum storage capacity of 20 TB (10 TB per interface). This provides ample space for recording and storing footage, ensuring that you don’t miss any crucial moments. Audio can be connected to the DVR via coaxial cable, so both video and sound can be recorded. This makes surveillance more complete.

EZVIZ Cloud P2P, free DDNS, HDMI/VGA output (up to 4K resolution), and cloud storage from Dropbox, Microsoft OneDrive, and Google Drive are all supported. Overall, the Eyemax TVST-AR334-16A is a highly advanced and reliable digital video recorder that offers a range of features to meet the diverse surveillance needs of any professional setting.

Datasheety

Download

Eyemax TVST-AR334-16A, a 16-channel DVR that supports HD-TVI, AHD, CVI, CVBS, and IP cameras. With advanced features like deep learning-based motion detection and perimeter protection, this DVR ensures accurate and reliable monitoring. Plus, with support for up to 24 IP camera inputs and 3rd-party cloud storage, you can easily expand your system as needed. Experience crystal clear playback and control with HDMI/VGA output and RS-485 for PTZ. Up to 20 terabytes of storage Datasheet.

Motion Detection 2.0¹
Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Perimeter Protection¹
Human/Vehicle Analysis	Up to 4-ch
Recording
Video compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution	Main stream: When 1080p Lite mode is not enabled: For 5MP stream access: 5MP Lite@12fps; 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 5MP Steam access: 5MP Lite@12fps; 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video bitrate	32 Kbps to 6 Mbps
Dual stream	Support
Stream type	Video, Video and Audio
Audio compression	G.711u
Audio bitrate	64 Kbps
Video and Audio
IP video input²	2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps
	Enhanced IP mode on:
	8-ch (up to 24-ch), each up to 4 Mbps
	Up to 6 MP resolution
	Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input	16-ch
	BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HD-TVI input	5 MP@20 fps , 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.
AHD input	5 MP@20 fps , 4 MP, 1080p@30 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI input	5 MP@20 fps , 4 MP, 1080p@30 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS input	PAL/NTSC
CVBS output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output
HDMI/VGA output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
	1024 × 768/60Hz, HDMI/VGA simultaneous output
Audio input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
	16-ch via coaxial cable
Audio output	1-ch, RCA (Linear, 1 KΩ)
Two-way audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback	16-ch
Network
Remote connection	128
Network protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface	1,RJ45 10/100/1000 Mbps self-adaptive
	Ethernet interface
Wi-Fi	Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary interface
SATA	2 SATA interfaces, up to 10 TB capacity for each disk
Serial interface	RS-485 (half-duplex)
USB interface	Front panel: 1 × USB 2.0;
	Rear panel: 1 × USB 3.0
Alarm in/out	N/A
General
Power supply	12 VDC, 3.3 A
Consumption (without HDD)	≤ 40 W
Working temperature	14 °F (-10 °C) to 131 °F (55 °C)
Working humidity	10% to 90%
Dimension (W × D × H)	15.0 inches (38.1 cm) × 12.6 inches (32 cm) × 1.9 inches (4.83 cm)
Weight (without HDD)	4.4 lbs
Note: 1: Motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enabling one function will make the other one unavailable. 2: Enhanced IP mode might be conflicted with smart events (face picture comparison, motion detection 2.0, and perimeter protection) or other functions, please refer to the user manual for details.

Additional information

Weight	6 lbs
Dimensions	17 × 14 × 5 in
Hard Drive	No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 5 TB Hard Drive, 6 TB Hard Drive, 7 TB Hard Drive, 8 TB Hard Drive, 9 TB Hard Drive, 10 TB Hard Drive, 11 TB hard Drive, 12 TB Hard Drive, 13 TB Hard Drive, 14 TB Hard Drive, 16 TB Hard Drive, 18 TB Hard Drive, 20 TB Hard Drive
