XRN-1620SB1
Original price was: $1,934.00.$1,257.10Current price is: $1,257.10.

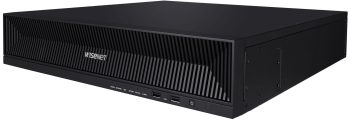

Hanwha Vision XRN-1620SB1 8K NVR with 16 Channels and up to 24 TB Storage
- Up to 16 channels, supports up to 32 megapixel camera resolution
- 140 Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor HDMI/VGA video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 4 internal HDDs (24TB)
- ARB & failover (N+1), dynamic event, Wisenet AI metadata search support
SKU: 8801089195791
Categories: 16 Channels Network Video Recorders (NVR), Network Video Recorders NVRs
Tag: NDAA Compliant;
Brand: Hanwha Vision, NDAA- Description
- Attachment
- Spicifications
Description
Introducing the ultimate NVR for your surveillance needs—the Hanwha Vision XRN-1620SB1 Intel-based 8K NVR. It has 16 POE or POE+ ports and can handle up to 16 channels. This means that you can easily connect and power up to 16 cameras with just one device. This makes installation and set up a breeze.
With advanced H.265, H.264, and MJPEG encoding, you can rest assured that your footage will be of the highest quality. Each of the four fixed internal SATA HDDs in the XRN-1620SB1 has a 24 TB data capacity. There will be plenty of room for videos for weeks or even months at a time.
One of the most impressive features of the XRN-1620SB1 is its ARB (Automatic Recovery Backup) capability. The NVR will automatically switch to a backup drive if the main hard drive fails. This will keep your surveillance system running. By recording at 140 Mbps and playing back at up to 32 Mbps, you will not overlook any significant moments.
The XRN-1620SB1 also offers dual-stream recording, allowing for simultaneous recording in different resolutions or frame rates. This is made possible by the innovative WiseStream technology, which optimizes bandwidth and storage needs without compromising image quality. The HDMI and VGA outputs let you watch videos on two screens at the same time.
With a maximum recording and display resolution of 32 megapixels, the XRN-1620SB1 produces exceptionally clear images and videos. It also dewarps fisheye videos on both the web and CMS, making them look more natural and accurate.
The web UI 2.0 requires no plugins, making it easy and convenient to use. Plus, with AI search available for Wisenet AI cameras, finding specific footage is a breeze. In addition, the QR code feature enables you to effortlessly register your cameras with the NVR.
| Display | ||
| Network camera | Inputs | Max. 16CH |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | FHD : HDMI & VGA Dual Monitor UHD : HDMI Single Monitor |
| Multi-Screen Display | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| ResolutionDisplay | [Local Monitor] FHD Clone Mode : 32MP (15fps, H.265 Only), 12MP (30fps, H.265 Only), 8.3MP (50fps), 1080p (240fps) D1 (480fps) UHD Single Mode : 32MP (15fps, H.265 Only), 12MP (30fps, H.265 Only), 8.3MP (50fps), 1080p (240 fps), D1 (270 fps) FHD Expand mode: 32MP (12fps, H.265 Only), 12MP (25fps, H.265 Only), 8.3 MP (30 fps), 1080p (90 fps), D1 (200 fps) Clone/Single Mode : Maximum 15 fps when displaying more than 10 channels Expand mode : Up to 9 divisions, maximum fps when displaying more than 8 channels | |
| Performance | ||
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 140Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search and Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 64CH (Local 16CH, Remote 16CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event List, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (up to H.264 8.3MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward/Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 4ea(Max. 24TB) | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI (AVI(Network) |
| Function | Multi channel(Up to 16 CH) play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 140Mbps | |
| Audio | Input/Output | 16 CH(network) |
| Compression | G.711, G.726, AAC (16/48 KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, user access log, 802.1x, encryption Device certificate (Hanwha Techwin Root CA), signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet Mobile | |
| Support CGI (SUNAPI) for integration to 3rd-party VMS. | ||
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| Item | IP address, add profile edit, bitrate, compression, GOP, quality, camera MD setup (4, 8-point polygon) Camera video setup (simple focus, brightness/contrast, flip/mirror, IRIS, WDR, D&N, SSNR, shutter, SSDR, DIS), fisheye dewarping mode, hallway view setup, camera webpage | |
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smartphone | Support Model | iOS, Android |
| Protocol Support | Rtp, RTSP, HTTP, CGI (Sunapi) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users. | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| Front Indicator | HDD, Alarm, Power, Record, Backup, Network | |
| Storage | OK | |
| HDMI | 1EA 3840×2160 30Hz | |
| VGA | 1EA 1920×1080 60Hz | |
| Audio | Out 1EA (3.5 mm Audio Jack) | |
| Ethernet | PoE+ RJ-45 16EA (LAN, 10/100), RJ-45 2EA (LAN/WAN 1 Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log Log List | Max. 100,000 (system log, Event Log each) | |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 32 °F (0 °C) to 104 °F (40 °C) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | Max. 310W | |
| PoE Budget | 200W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 17.32 inches (43.99 cm) x 3.54 inches (8.99 cm) x 16.87 inches (42.85 cm) | |
| Weight | 12.70 lb (5.76 kg) | |
| Intelligent Analysis | ||
| AI Search Object Attribute | Compatible with Wisenet AI Camera | |
