Introducing the Dahua N98A7N 8K 128-channel Network Video Recorder (NVR), the latest addition to the enterprise-level WizMind Series designed for high-demand security environments. This powerful NVR boasts various advanced features, including a powerful processor and built-in deep learning modules. These enhance surveillance efficiency and effectiveness.
With its high recording and playback resolutions, as well as advanced analytics capabilities, the Dahua N98A7N is the ultimate surveillance solution for businesses and organizations that require top-notch security.
At the core of the Dahua N98A7N NVR is a powerful processor. It provides lightning-fast performance for seamless video recording and playback. This NVR also comes equipped with built-in deep learning modules. These allow for enhanced video analysis and improved accuracy in detecting and identifying potential threats. This is especially useful in high-demand security environments where quick and accurate surveillance is crucial.
With its 128-channel capacity, the Dahua N98A7N NVR can support recording resolutions of up to 32 MP. It provides crystal-clear video footage. Furthermore, playback is available in resolutions up to 8K via HDMI 2.1. Every detail is captured and displayed with stunning clarity. This not only enhances the overall viewing experience, but also makes it easier to identify potential security concerns.
One of the standout features of the Dahua N98A7N NVR is its advanced analytics capabilities. It includes 4-channel Face Detection and Face Detection+, which uses deep learning technology to accurately identify and track human faces in a given environment.
Additionally, it offers 24-channel Perimeter Protection and 32-channel Smart Motion Detection+ (SMD+). This helps filter out false alarms caused by environmental factors such as moving tree branches or changing lighting conditions. This ensures that security personnel are alerted only to relevant and genuine threats.
In terms of connectivity, the Dahua N98A7N NVR has multiple ports including HDMI and VGA outputs, USB 2.0 and 3.0 ports, audio input and outputs, and dual Ethernet ports. This makes it easy to connect the NVR to various devices and equipment. It ensures seamless integration into any security system. Furthermore, the drawer-like chassis design of the NVR allows for HDD hot swapping. This makes maintenance and upgrades a breeze.
DownloadDahua N98A7N 8K NVR from the WIZMIND Series. Built-in deep learning modules and advanced analytics for efficient surveillance. Supports up to 32MP recording and 8K playback. Customizable with 8 SATA ports and RAID support. Multiple ports for easy connectivity. Hot-swappable HDD design for convenience. Datasheet
DownloadDahua N98A7N 8K NVR from the WIZMIND Series. Built-in deep learning modules and advanced analytics for efficient surveillance. Supports up to 32MP recording and 8K playback. Customizable with 8 SATA ports and RAID support. Multiple ports for easy connectivity. Hot-swappable HDD design for convenience Suer's Manual.
| Number of Channels | 128 |
| Playback Resolution | HDMI:
1080p, 8K, 4K
VGA:
1080p |
| Recording Resolution | 1080p, 720p, D1, 4 MP, 5 MP, 8 MP, 12 MP, 16 MP, 24 MP, 32 MP |
| PTZ Support | No |
| Throughput | 1024 Mb/s (Incoming)
1024 Mb/s (Recording)
800 Mb/s (Outgoing) |
| Decoding Resolution | 2 Channels:
24 MP, 32 MP at 24 fps
24 MP, 32 MP at 30 fps
4 Channels:
16 MP at 30 fps
8 Channels:
8 MP at 30 fps
16 Channels:
4 MP at 30 fps
32 Channels:
1080p at 30 fps
64 Channels:
1080p at 15 fps
720p at 30 fps
128 Channels:
D1 at 30 fps |

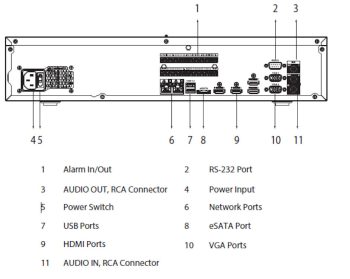

Connectivity
| A/V I/O | 1x HDMI 2.1 Output
2x HDMI 2.0 Output
1x HDMI 1.4 Output
2x VGA Output
2x RCA Audio Output
1x RCA Audio Input |
| Communication I/O | 1x RS-232 (Rear)
1x RS-485 (Rear)
2x RJ45 2.5 GbE (Rear)
2x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear)
2x USB-A 2.0 (Front) |
| System Connection | 1x eSATA |
| Wi-Fi | No |
| Bluetooth | No |
| Network Protocols | DHCP, HTTP, HTTPS, IPv4, NTP, RTSP, TCP/IP, UDP |
Compatibility
| Supported Video Codecs | H.264, H.264+, H.265, H.265+, MJPEG |
| Supported Audio Codecs | AAC, G.711A, G.711Mu, G.723, G.726, PCM |
System
| Installed Drive | No |
| Number of Bays | 8x 3.5” Internal |
| RAID Support | Yes: RAID 0/1/5/6/10 |
| Hot-Swap Storage Support | Yes |
Software System Requirements
| OS Compatibility | Computer: Linux
Mobile: Android/iOS |
| Web Browser Support | Chrome, Edge, Firefox |
Notifications
| Alarm I/O | 16x Input
8x Output |
| Event Trigger | Alarm, Camera Event, Disconnected, Disk Full, Network Loss, PIR |
| Notification Type | Buzzer, Email |
System Functions
| Multi-Screen Configuration | 1, 4, 8, 9, 16, 25, 36, 64 (Primary Display)
1, 4, 8, 9, 16, 25, 36 (Secondary Display) |
| Fisheye Dewarping | Yes |
Electrical
| Power Consumption | 18 W (Typical, Without HDD) |
| Power Supply Type | Internal |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
Physical
| Operating Conditions | 14 °F (-10 °C) to 131 °F (55 °C) at 10 to 93% Humidity |
| Certifications | CAN/CSA C22.2 No.62368-1-14, EN 55032:2020, Class A, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55024:2010+A1:2015, EN 55035:2020, EN 50130-4:2011+A1:2014, FCC 47 CFR FCC Part 15, SubpartB, Class A, UL 62368-1 |
| Cooling Method | Fan |
| LED Indicators | Yes |
| Rack Form Factor | 2 U |

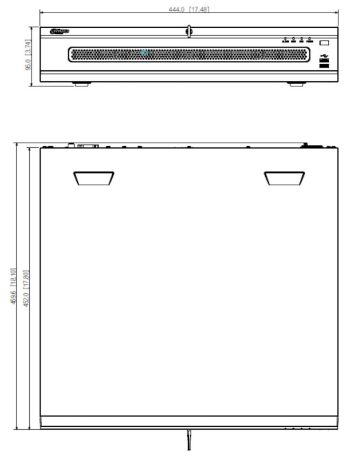

| Dimensions (W × D × H) | 17.5 inches (44.45 cm) x 18.0 inches (45.72 cm) x 3.7 inches (9.4 cm) |
| Weight | 14.11 lb (6.4 kg) (Without HDD) |
